FULL DESCRIPTION of Item 105740

in Measuring Microscopes
Item ID: 105740

Offered 1 Offered at Best Price


NIKON MEASURING MICROSCOPE

Measuring Microscope

In addition to this Nikon MM-11, Capovani Brothers Inc stocks a variety of used measuring microscopes. Typical manufacturers include Leitz, Mitutoyo, and Nikon. To view our complete stock of measuring microscopes visit our Measuring Microscopes category.

Learn about our Microscopes Refurbishment and Functional Testing Procedures

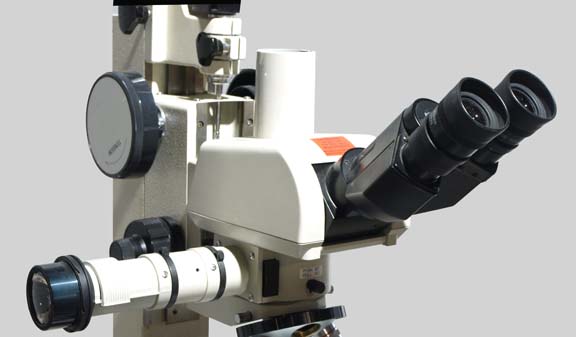

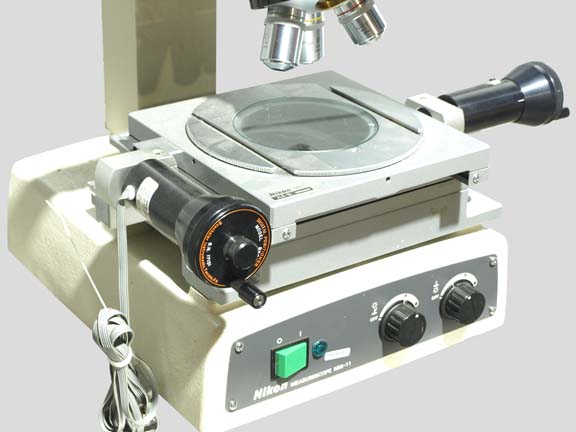

NIKON MEASURING MICROSCOPE
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Nikon
Model MM-11
Microscope Configuration Brightfield & Darkfield
Illumination Type Reflected & Transmitted Light
Binocular Angle Variable
Eyepieces
  Model CFUWN
  Magnification 10 X
  Field Number 26 mm
Trinocular/Phototube Provided YES
Multiple Objectives Models

BD Plan 5x
BD Plan 10x
BD Plan 20x

Other objectives may be available please inquire



Stage Type Coaxial X-Y
X-Y-Z Stage Travel X: 51  mm  (2.008 in)     Y : 51  mm  (2.008 in)
Other Information

Stage: Nikon A4-b
Z Axis: Nikon Digimicro Model: MU-501C
Power requirements: 100/120 VAC, 1 amp, 220/240 VAC, 0.5 amp, 50/60 Hz

Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 19.000  in  (48.3 cm)
  Height 27.000  in  (68.6 cm)
Weight 102  lb  (46 kg)
