FULL DESCRIPTION of Item 186543

in Cryogenic Compressors
Item ID: 186543

Offered 2 Offered at Best Price

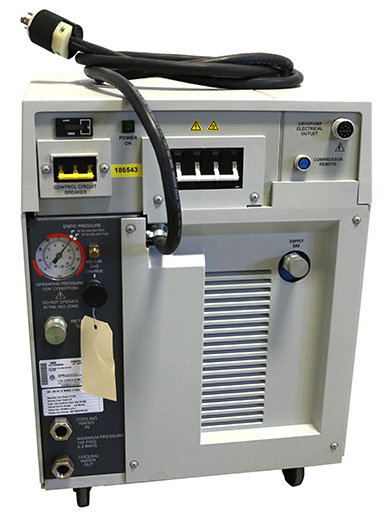

CTI CRYOGENICS CRYOGENIC COMPRESSOR

Cryogenic Compressor -- Part No.8135900G001

The 9600 Compressor supports either On-Board or Cryo-Torr Cryopumps and multiple cryopump installations




CTI CRYOGENICS CRYOGENIC COMPRESSOR
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 2
Manufacturer CTI Cryogenics
Model 9600
External Cooling Water Cooled
Cooling Water Required Minimum Flow: 2.00  GPM  (7.60 l/m)     Minimum Temperature: 10  ºC  (50 ºF, 283.00 ºK)     Maximum Temperature: 32  ºC  (90 ºF, 305 ºK)
Other Information

Part No.8135900G001

Max. Input Power:  5.5kW
Nominal Power factor: 0.9
Compressor full load/lock rotor amps:  16.2/80

Extended Description  Details at Brooks CTI 9600.pdf
Power Requirements 200-230 V     17.0 A     50/60 Hz     3 Phase
CE Marked YES
Exterior Dimensions
  Width 19.500  in  (49.5 cm)
  Depth 23.000  in  (58.4 cm)
  Height 23.000  in  (58.4 cm)
Weight 250  lb  (113 kg)
