FULL DESCRIPTION of Item 1071

in Turbo Pumps
Item ID: 1071

Offered3 Offered at $ 9,500.00 (each)


LEYBOLD TURBO VACUUM PUMP 620 L/S

Corrosive Duty Turbomolecular Vacuum Pump

In addition to this Leybold TURBOVAC 600C, Capovani Brothers Inc stocks a wide range of used turbo vacuum pumps. Typical manufacturers include Alcatel, Balzers, Balzers-Pfeiffer, Leybold, Osaka Vacuum Ltd., Seiko Seiki, and Varian.

To view our complete stock of used turbo pumps visit our Turbomolecular Vacuum Pumps category.

We also have turbo vacuum pump controllers available for sale. Visit our Turbo Pump Controller category

Learn about our Used Turbo Vacuum Pump Refurbishment and Functional Testing Procedures

This used turbo pump and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

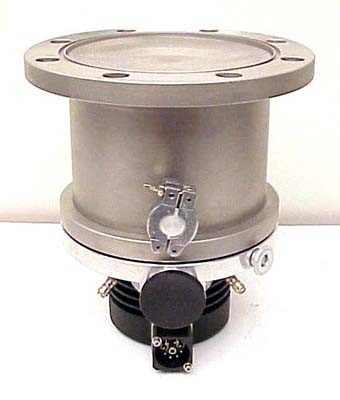

LEYBOLD TURBO VACUUM PUMP 620 L/S
  Click to see additional image(s)... other image
Unit Price $ 9,500.00 (each)
Number of Units 3
Manufacturer Leybold
Model TURBOVAC 600C
Pumping Speed Nitrogen 620.0  l/s  (1,313.8 CFM)
Ultimate Pressure  1.00E11(En)  torr  (1.33E11 mbar)
Inlet Flange ASA     152.4  mm  (6.000 in)
Foreline Flange KF     40.0  mm  (1.575 in)
Bearing Type Grease
Installation Orientation Any
Rotational Speed 36,000 RPM
Startup Time 2 minutes
External Cooling Water Cooled
Accessories Inlet flange: 6" ANSI
Other Information Part No.: 89425
Exterior Dimensions
  Width 9.000  in  (22.9 cm)
  Height 11.750  in  (29.8 cm)
Weight 37  lb  (17 kg)
