FULL DESCRIPTION of Item 1104

in Rotary Vane Pumps
Item ID: 1104

Offered19 Offered at $ 4,250.00 (each)


LEYBOLD OERLIKON ROTARY VANE PUMP 32.5 CFM

Two Stage Rotary Vane Vacuum Pump

Once sold, all mechanical vacuum pumps will be rebuilt to factory specifications, unless stated otherwise.
All rebuilt pumps are sold with a one year warranty on parts and labor.
Pumps can be ordered Fomblin® or standard hydrocarbon oil prepped.

Pumping speed and ultimate pressure are based on 60 Hz operation.

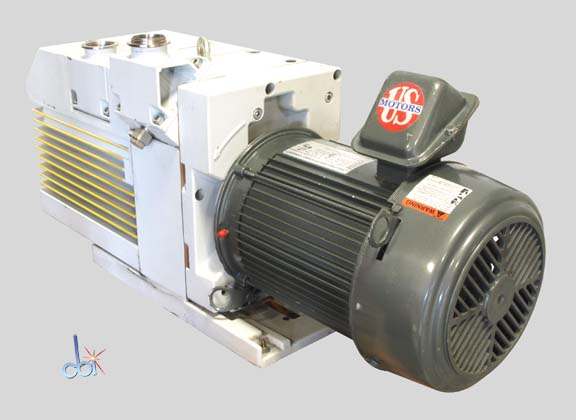

LEYBOLD OERLIKON ROTARY VANE PUMP 32.5 CFM
  Click to see additional image(s)... other image
Unit Price $ 4,250.00 (each)
Number of Units 19
Manufacturer Leybold
Model D40BCS
Pumping Speed 32.5  CFM  (918.4 l/m)
Ultimate Pressure  7.50E-5(En)  torr  (10.00E-5 mbar)
Inlet Flange KF     40.0  mm  (1.575 in)
Exhaust Flange KF     40.0  mm  (1.575 in)
Refurbished YES
Two-Stage YES
Gas Ballast Yes
Direct Drive Yes
Motor Horsepower 3  HP
Accessories This pump available with or without filtration systems;
Inquire about availability and pricing



Other Information Pump is available in 200-220/380VAC 50Hz 3 phase configuration, inquire when ordering
Nominal Displacement: 32.5 CFM
Ultimate partial pressure with gas ballast closed: Ultimate total pressure with gas ballast open: <3.8E-3
Water vapor tolerance: 30 Torr
Oil capacity: min = 1.8 qt, max = 2.7 qt
Pump rotational speed: 1755 rpm
Power Requirements 230/460 V     10.0 A     5.0 A(2)     60 Hz     3¬†Phase
Exterior Dimensions
  Width 16.000  in  (40.6 cm)
  Depth 30.000  in  (76.2 cm)
  Height 13.000  in  (33.0 cm)
Weight 200  lb  (91 kg)
