FULL DESCRIPTION of Item 125790

in Heat Exchangers, Water to Water
Item ID: 125790

Offered1 Offered at Best Price


AFFINITY CHILLER 35,000 WATT

Circulator/Di Water/Refurbish

Lydall Affinity EWA04AL-CE87-CBCO

In addition to this Affinity EWA04AL-CE87-CBCO, Capovani Brothers Inc stocks a wide range of used heating and cooling equipment, including bath/circulators, baths, chillers, heat exchangers, heating circulators, and immersion coolers. Typical manufacturers include Advanced Thermal Sciences, Affinity/Lydall, Bay Voltex, Cole Parmer, Fisher Scientific, Haake, Hart Scientific, Lauda, Neslab, PolyScience and VWR Scientific.

To view our complete stock of used bath and chiller equipment, visit our Baths and Chillers Category.

Learn about our Water to Water Heat Exchangers Functional Testing Procedures

This used heat exchanger and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus equipment list

AFFINITY CHILLER 35,000 WATT

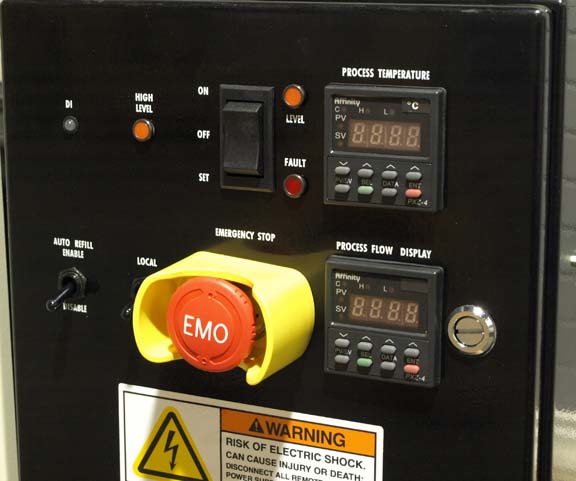

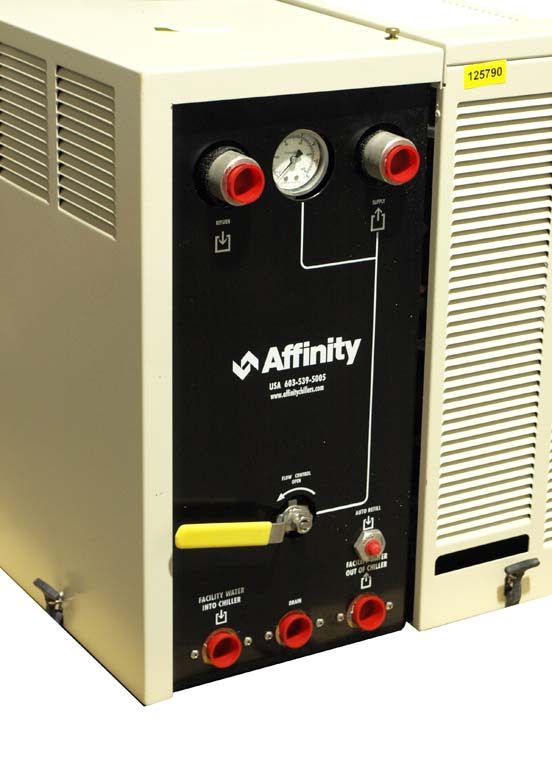

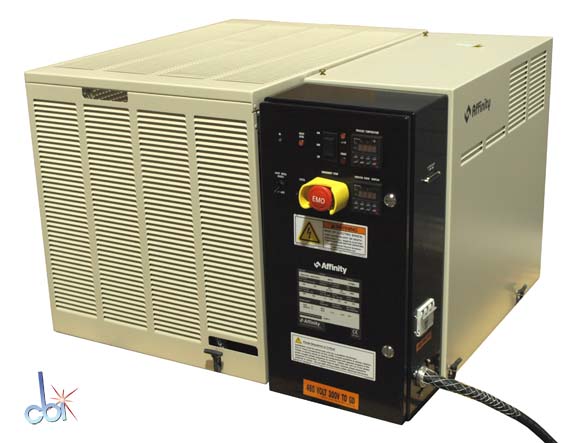

  Click to see additional image(s)... other images
Unit Price Unstated
Number of Units 1
Manufacturer Affinity
Model EWA04AL-CE87-CBCO
Cooling System
  External Cooling Water Cooled
  Pump type/Model Turbine T4
  Cooling Capacity 35,000  W  (119,372 BTU/hr)
Heat/Cool Controls
  Control Type Programmable
Minimum Temperature 4  ºC  (39 ºF, 277.00 ºK)
Maximum Temperature 30  ºC  (86 ºF, 303 ºK)
Temperature Control
  Control Stability ± 0.100 ºC
Max Flow 6  GPM  (22.80 l/m)
Maximum Pressure 70.000  PSI  (4,826.71 mbar, 482,671.00 Pa)
Accessories 25-pin interlock
Flow alarm
Temperature alarm
Level alarm
Remote Run
Auto-Refill
Other Information 380-volts-50hz 3-amp
460/277-volts 60-hz 3-amp
>
Power Requirements Other V     3.0 A     50/60 Hz     3 Phase
CE Marked YES
Condition Like New
Exterior Dimensions
  Width 29.000  in  (73.7 cm)
  Depth 29.000  in  (73.7 cm)
  Height 21.000  in  (53.3 cm)
Weight 382  lb  (173 kg)
