FULL DESCRIPTION of Item 143258

in Manual Ball Bonders
Item ID: 143258

Offered2 Offered at Best Price


KULICKE & SOFFA K&S MANUAL BALL BONDER

Manual Ball Bonder

In addition to this Kulicke & Soffa 4124, Capovani Brothers Inc stocks a wide range of used and refurbished ball bonders. Typical manufacturers include F&K Delvotec, Hybond, Kulicke & Soffa, Orthodyne, West-Bond. To view our complete stock of used ball bonders visit our Ball Bonders category.

This used automatic wedge bonder and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

KULICKE & SOFFA K&S MANUAL BALL BONDER
  Click to see additional image(s)... other images
Unit Price Unstated
Number of Units 2
Manufacturer Kulicke & Soffa
Model 4124
Description Manual Ball Bonder

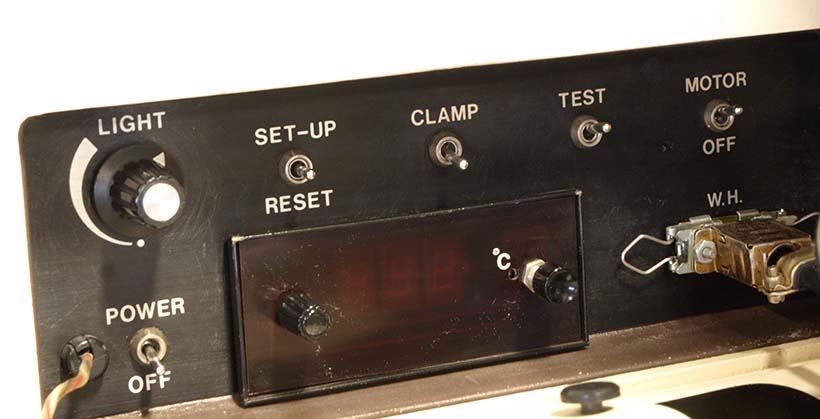

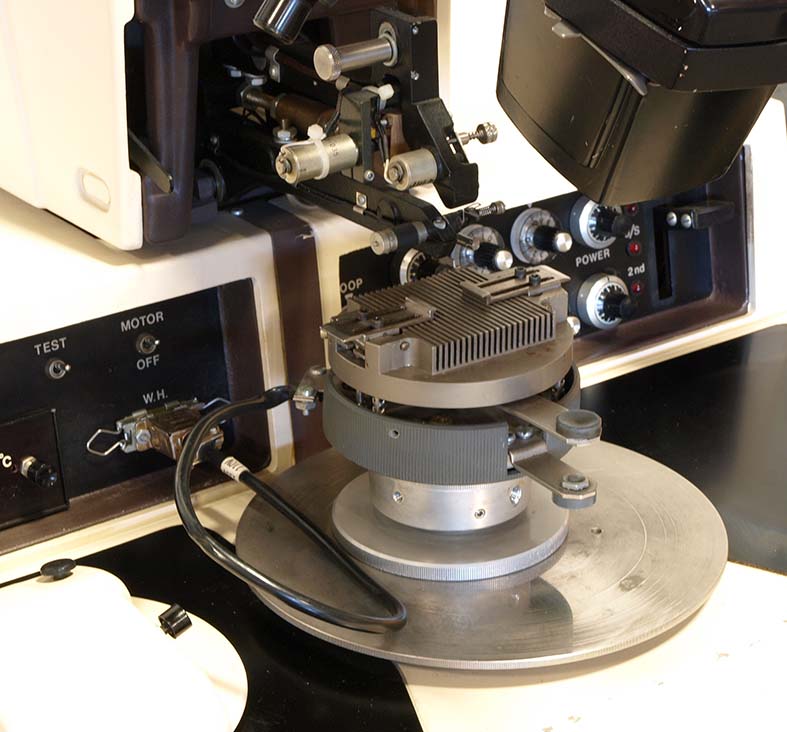

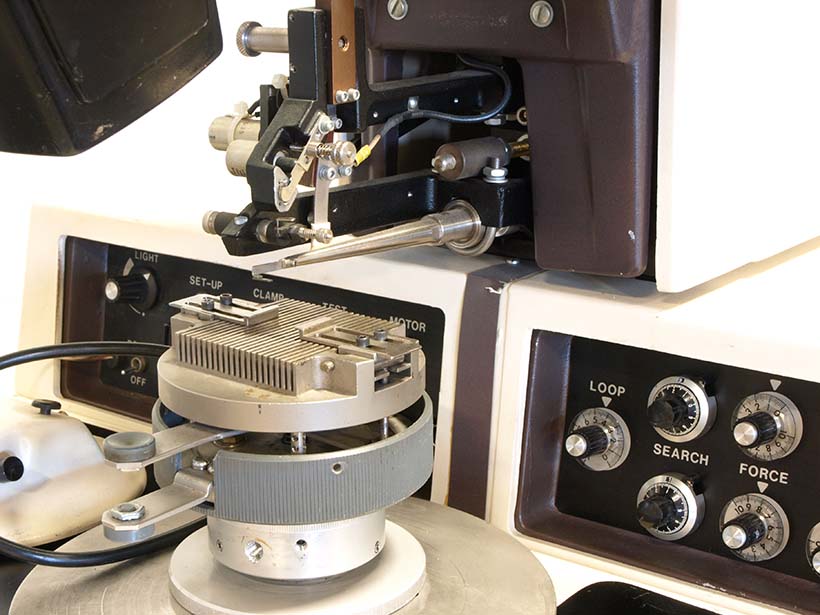

Accessories Heated work holder
B & L Stereozoom 4 Microscope
Magnification: 7X to 30X
Spotlight targeting

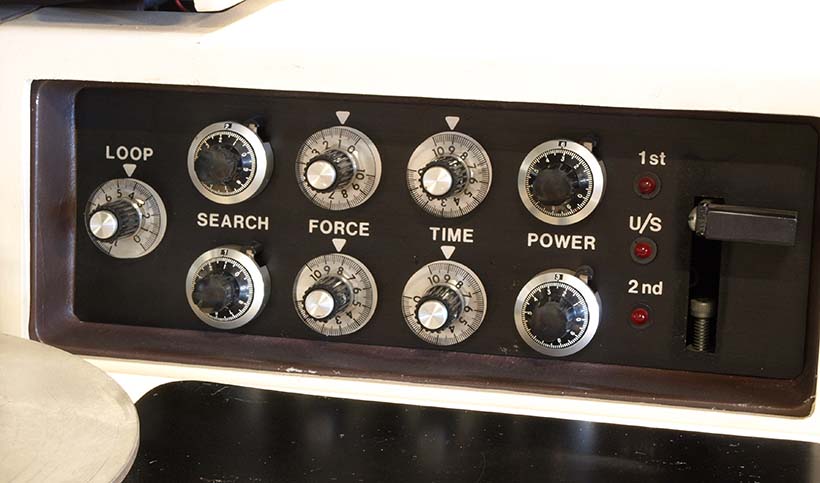

Other Information Wire diameter: 0.7 to 3.0 mils Wire spool: TC-3, 2", single flange Bond force: 10 to 160 grams Bond time: 10 to 100 ms Cycle time: 900 ms
Ultrasonic power: 1.3W low, 2.0W high
Throat depth: 5"
Bonding area: 3.75" x 3.75"

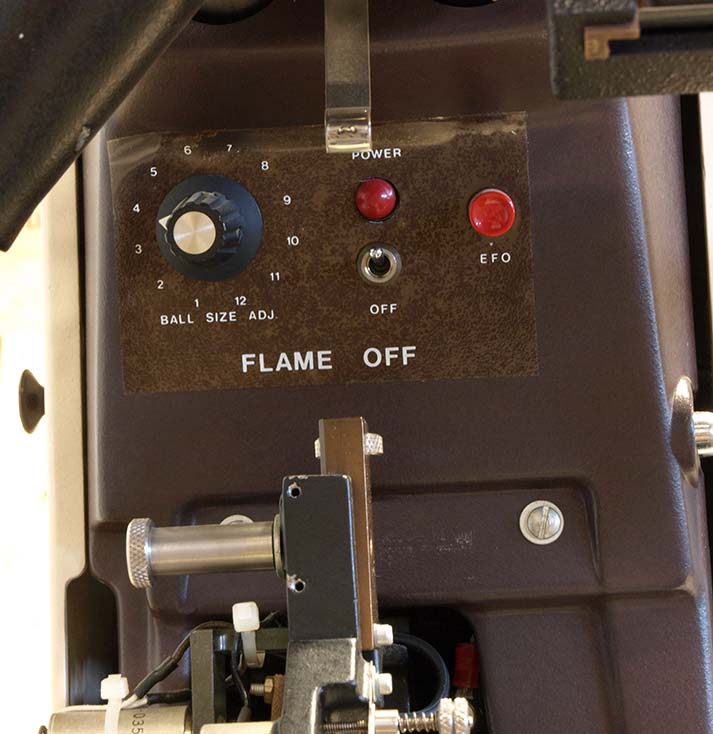

EFO: 1200 VDC, adjustable ball size
Power Requirements 115 V     5.0 A(2)     60 Hz     1¬†Phase
Exterior Dimensions
  Width 23.000  in  (58.4 cm)
  Depth 26.000  in  (66.0 cm)
  Height 26.000  in  (66.0 cm)
Weight 110  lb  (50 kg)
