FULL DESCRIPTION of Item 158163

in Electronic Loads
Item ID: 158163

Offered 3 Offered at Best Price

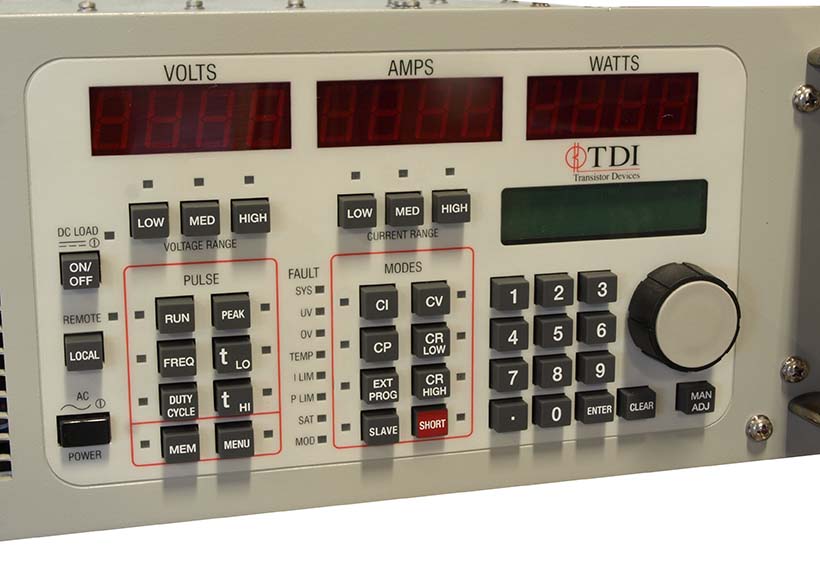

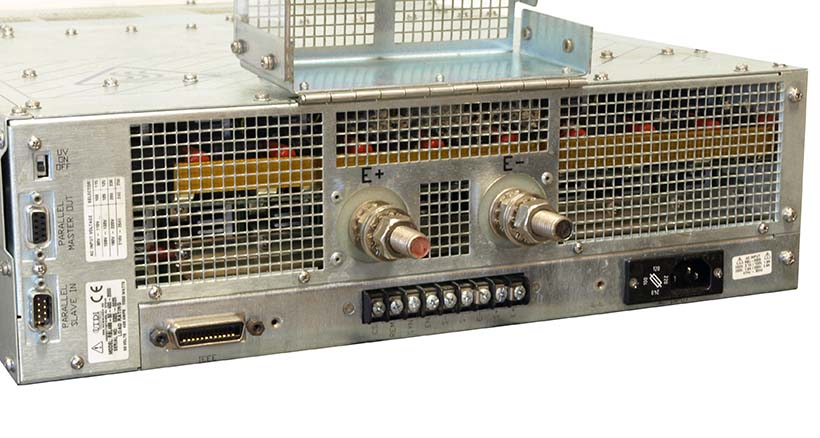

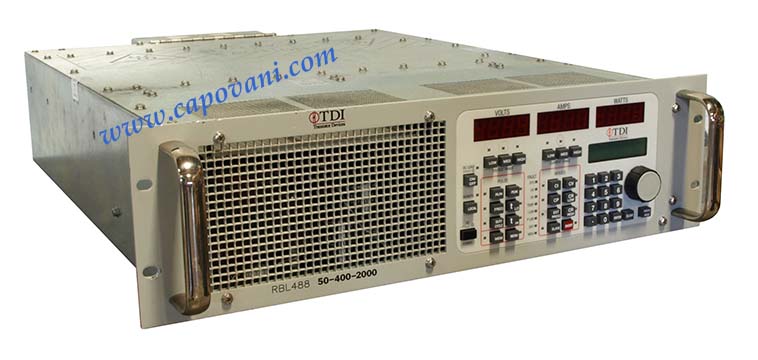

TDI POWER ELECTRONIC LOAD

Electronic Load

TDI POWER ELECTRONIC LOAD
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 3
Manufacturer Transistor Devices
Model RBL 488-50-400-2000
Maximum Input Voltage 50.00 Volts
Maximum Input Current 400.00 Amps
Maximum Input Power 2.00 kW
Regulation Modes Constant Current     Constant Voltage     Constant Power     Constant Resistance
Panel Meters Digital
Interface IEEE 488-GPIB
External Cooling Forced Air Cooled
Other Information

Modes of operation: Constant Current, Constant Resistance, Constant Voltage, Constant Power and Pulse Mode.

For specifications click here

Power Requirements 120/220 V     1.8 A     0.9 A(2)     47-63 Hz     1 Phase
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 27.000  in  (68.6 cm)
  Height 5.250  in  (13.3 cm)
Weight 58  lb  (26 kg)
