FULL DESCRIPTION of Item 177136

in Barrel/Box Plasma Etchers
Item ID: 177136

Offered1 Offered at Best Price


MARCH NORDSON BOX PLASMA ETCHER 1000 WATT 13.56 MHZ

Box Plasma Etcher

Applications
"Gas plasma treatment provides a fast, efficient method for
surface treatment and cleaning prior to wire bonding, die
attach, encapsulation, conformal coating and other processes.
Plasma processing enhances lamination bondstrength, improves
wire bond strength and uniformity,promotes underfill adhesion and enhances die attach." Source -- March Nordson.

In addition to this March Instruments PX-2400, Capovani Brothers Inc stocks a wide range of used and refurbished plasma etching equipment including RIE, ICP and DRIE plasma etch tools. Typical manufacturers include Applied Materials, Branson/IPC, LAM Research, March Instruments, Oxford Instruments, Plasma-Therm, Surface Technology Systems, Tegal, Trion Technology

To view our complete stock of used plasma etch tools visit our Plasma Etch Equipment categories

This used plasma etching tool and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

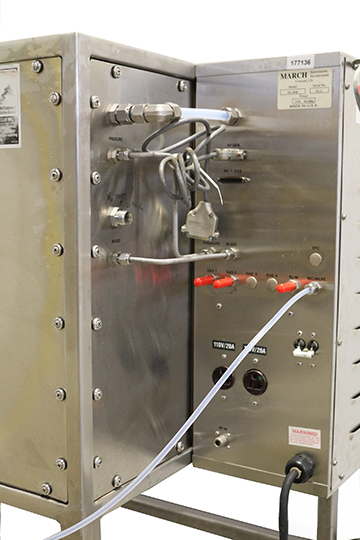

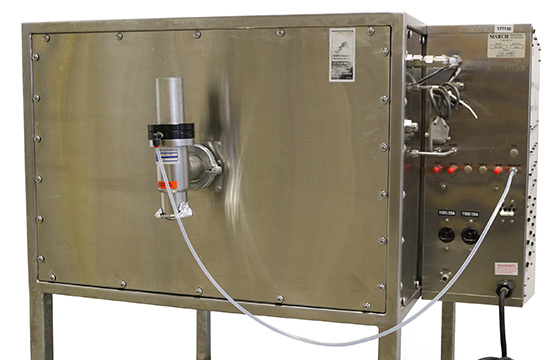

MARCH NORDSON BOX PLASMA ETCHER 1000 WATT 13.56 MHz
  Click to see additional image(s)... other images
Unit Price Unstated
Number of Units 1
Manufacturer March Instruments
Model PX-2400
Etcher Type Box
Rated Power Output 1000 Watts
Reactor Center Rectangular
Reactor Center Size
  Width 26.38  in  (67.01 cm)
  Depth 25.38  in  (64.47 cm)
  Height 14.00  in  (35.56 cm)
Reactor Center Material Other
Number of Gas Inputs Two Gas
Automatching Network Included Yes
Vacuum Pump Included No
RF Generator Model Dressler 1312
Interface RS 232

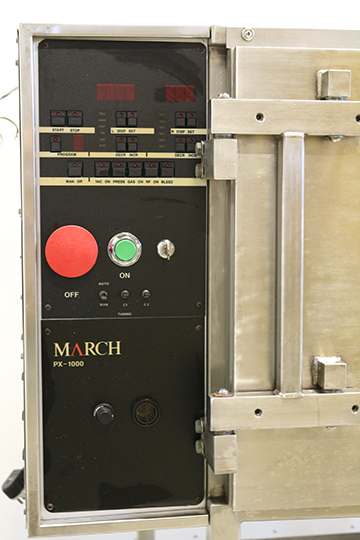

Panel Meters Digital
External Cooling Forced Air Cooled

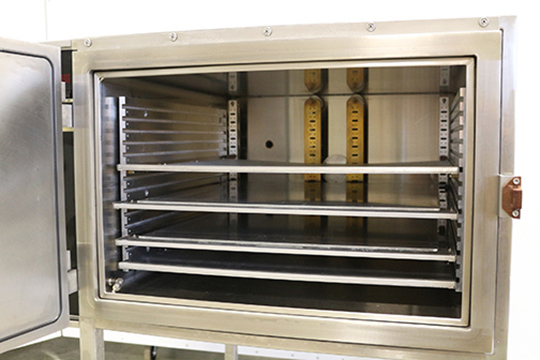

Accessories
 Door with viewing window
Other Information Stainless Steel chamber
Electrodes  -- 14 Adjustable postions
   (2) Powered,  Work area 24" x 24"

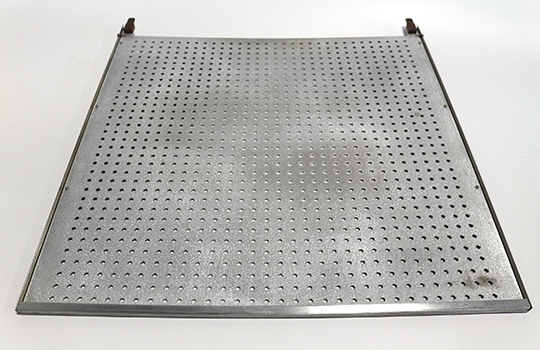

   (1) Grounded, Perforated, Work area 24" x 24"

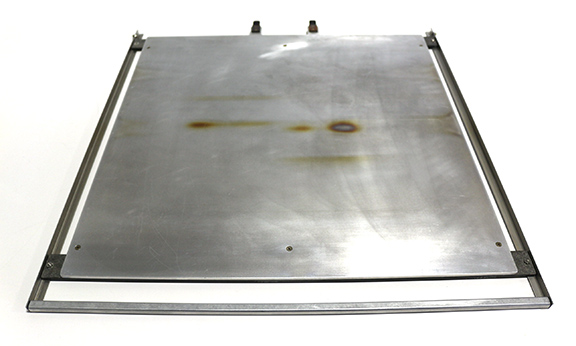

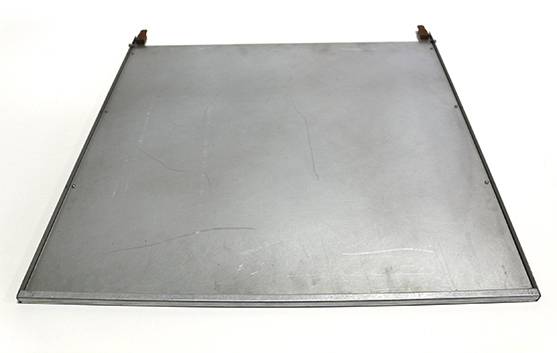

   (1) Grounded, Solid, Work area 24" x 24"

Gas inputs via mass flow controllers
Extended Description Details at March PX--2400.pdf
Exterior Dimensions
  Width 42.000  in  (106.7 cm)
  Depth 36.000  in  (91.4 cm)
  Height 48.000  in  (121.9 cm)
