in Acid Wet Stations
Item ID: 181396

Offered1 Offered at Best Price

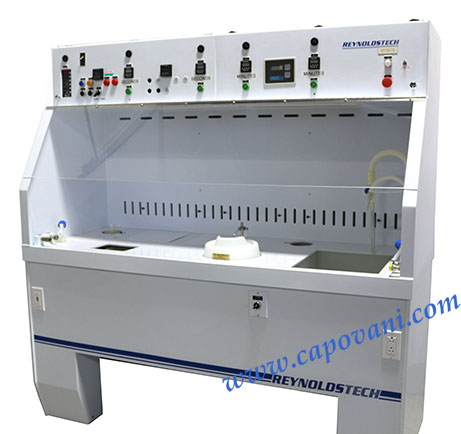

Photoresist Develop Station with Headway Wafer Spin Cleaner

  Click to see additional image(s)... other images
Unit Price Unstated
Number of Units 1
Manufacturer Reynoldstech
Model Resist Develop Station
Wafer Size Range
  Minimum 150 mm
Number of Positions 1

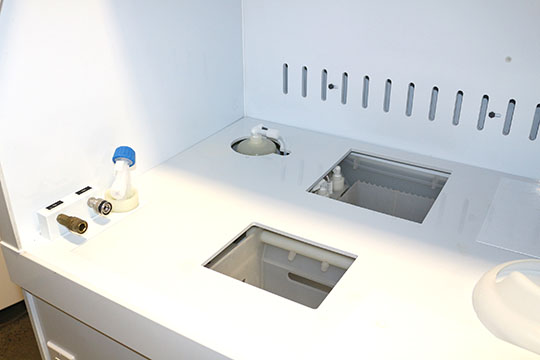

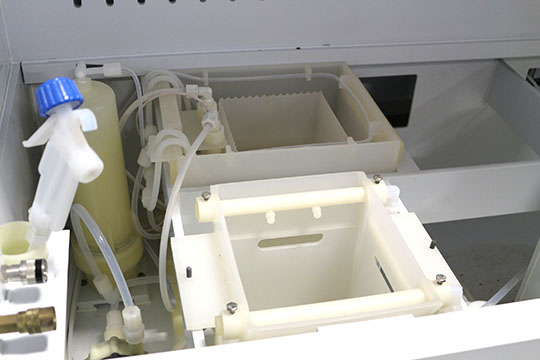

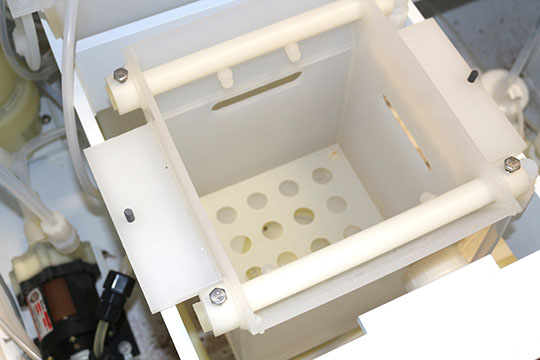

Position 1
  Process Overflow Rinse
  Tank Material PVDF
  Other Features 7" x 7" x 9" Deep

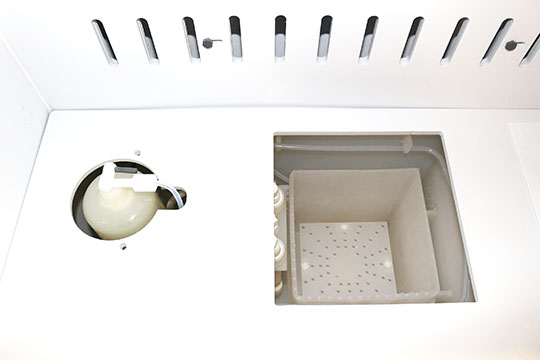

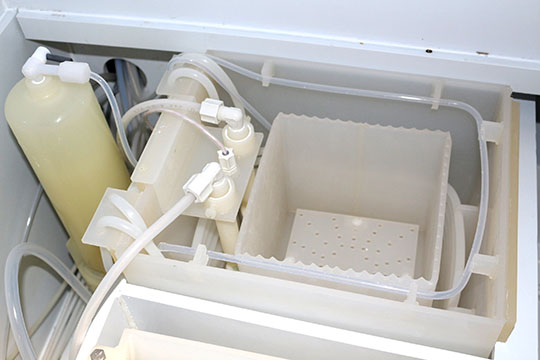

Position 2
  Process Quick Dump Rinse
  Tank Material PVDF
  Other Features 8" x 6.25" x 9"
Position 3
  Tank Material Polypropylene

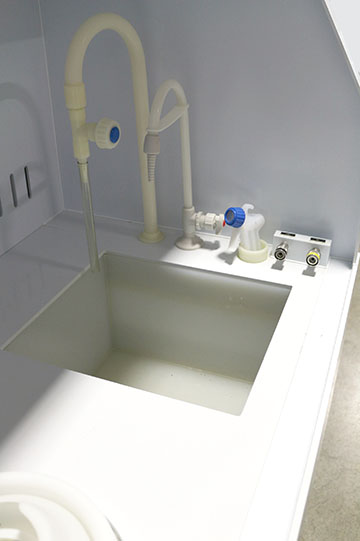

  Other Features 16 x 14 x 10 Sink w/(2) Gneck Faucets, DI+City H2O

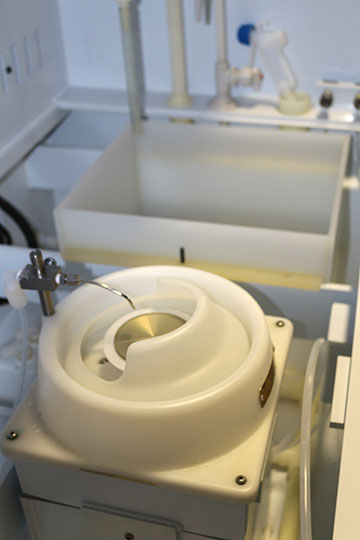

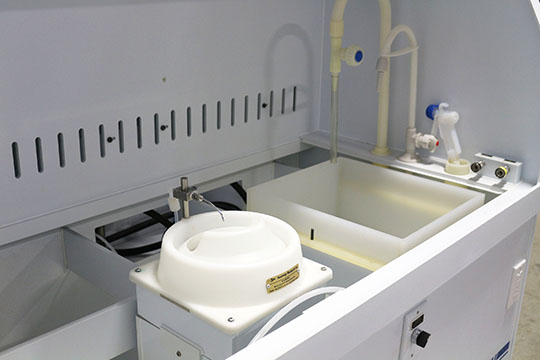

Headway PM80 Wafer Spin Cleaner with three postion foot switch and pressurized dispense
(2) Di water spray wands one  located on left and right side of deck

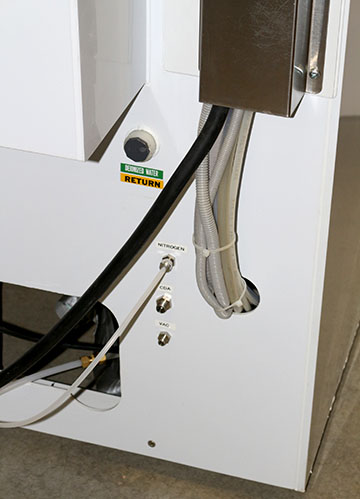

(2) N2 quick disconecct ports one located on left and right side of deck
(2) vacuum quick disconecct ports one located on left and right side of deck
Adjustable deck exhaust

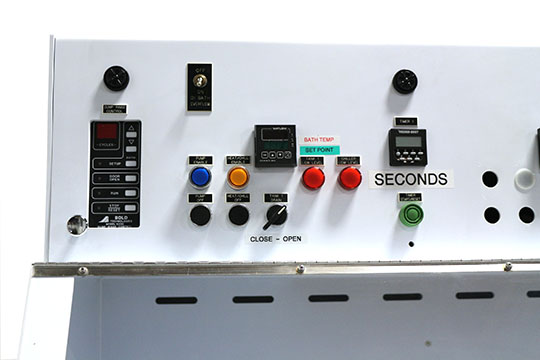

BOLD Technologies Model 625D Dump Rinse Control

Other Information

Deck Width:  71.5"
Deck Depth:  27.5

Power Requirements 120/208 V     30.0 A     60 Hz     3¬†Phase
Exterior Dimensions
  Width 72.000  in  (182.9 cm)
  Depth 42.000  in  (106.7 cm)
  Height 74.000  in  (188.0 cm)
