Item ID: 186513

**1 Offered at Best Price**

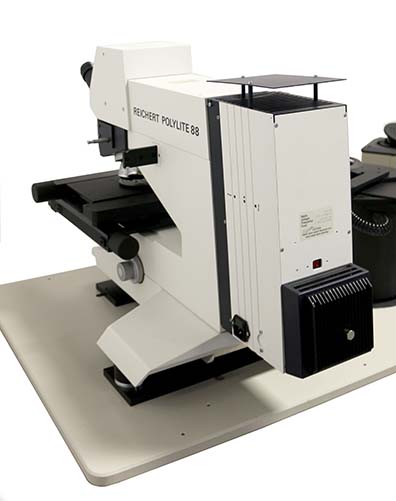

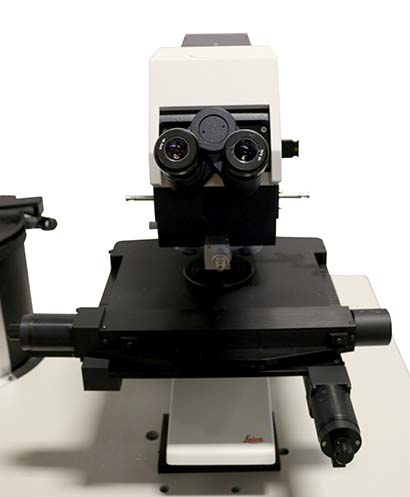

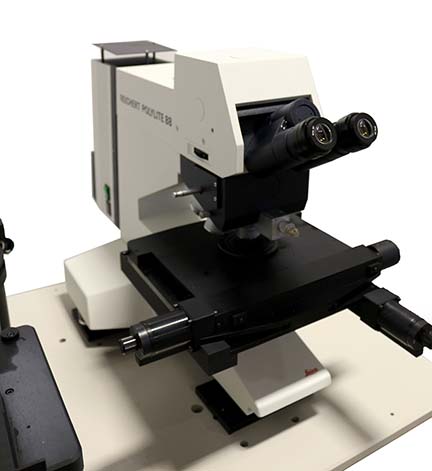

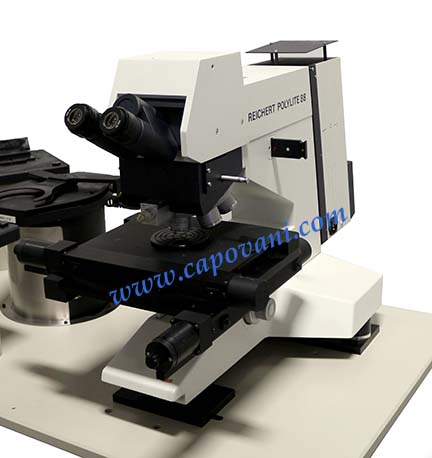

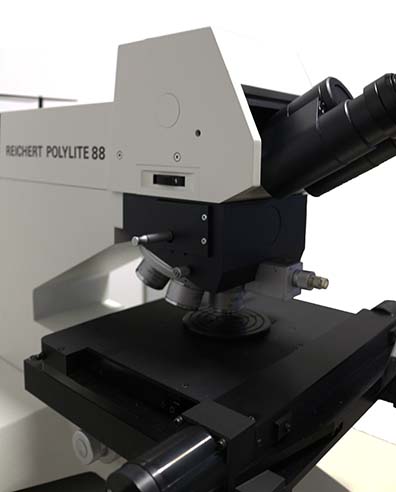

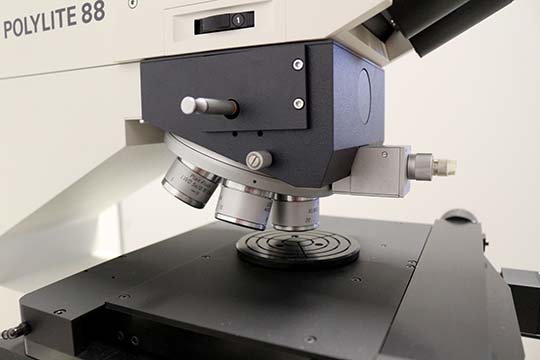

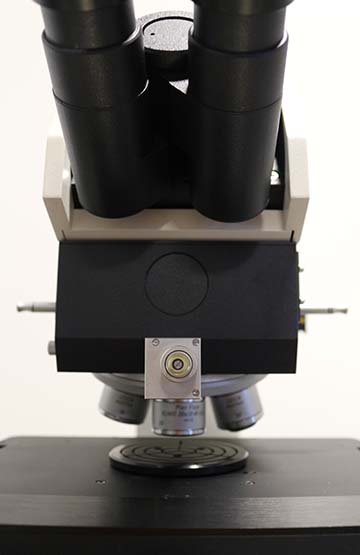

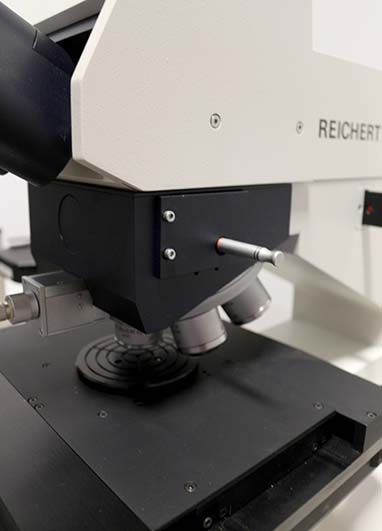

LEICA/REICHERT WAFER INSPECTION MICROSCOPE

Automated Wafer Inspection Microscope
Brightfield/Darkfield/DIC

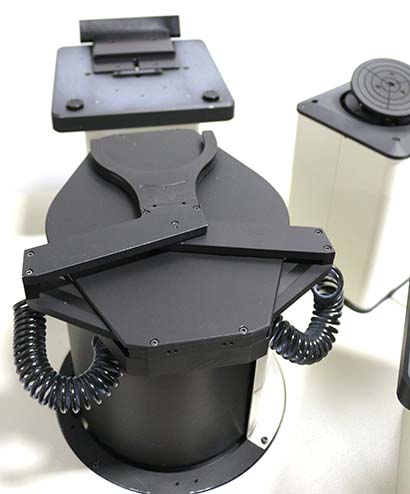

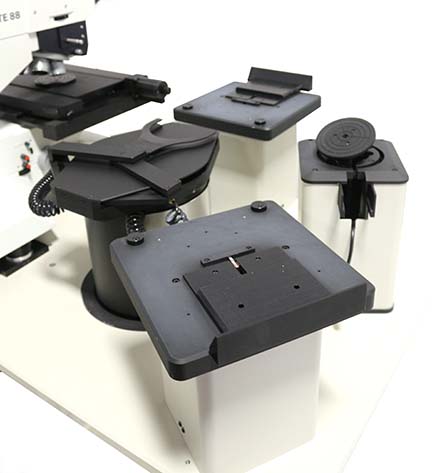

With LEP motorized wafer transport system

In addition to this Leica POLYLITE 88, Capovani Brothers Inc stocks a wide range of used and refurbished wafer inspection microscopes. Typical manufacturers include Leica, Leitz, Mitutoyo, Nikon, Olympus, Reichert-Jung, and Zeiss. To view our complete stock of used wafer inspection microscopes visit our Wafer Inspection Microscope category.

This used wafer inspection microscope and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Learn more about our Used Microscopes Refurbishment and Functional Testing Procedures

Sell us your used, surplus or idle assets! Send us your surplus list

LEICA/REICHERT WAFER INSPECTION MICROSCOPE

... other images

Location: Scotia, New York, United States

Unit Price	Unstated
Number of Units	1
Manufacturer	Leica
Model	POLYLITE 88
Microscope Type	Upright
Microscope Configuration	Brightfield, Darkfield & DIC
Illumination Type	Reflected Light
Binocular Angle	Variable
Eyepieces
Model	WPK
Magnification	10 X
Field Number	20 mm
Focusing	YES
Wafer Size	200.00 mm (7.87 in)
Magnification Changer	1.0,2.5
Motorized Nosepiece	YES

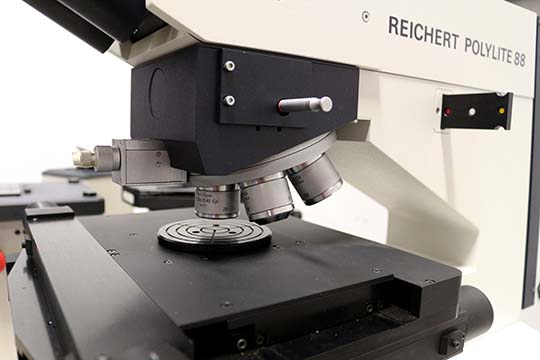

Multiple Objectives Models	PLAN FLUOR LWD 10X/0.20 EPI IK PLAN FLUOR XLWD 20X/0.40 EPI IK PLAN FLUOR 50X/0.60 EPI PLAN FLUOR 100X/0.70 EPI PLAN APO 150X/0.95 EPI IK
Infinity Corrected Objectives	YES
Illumination Power	*Volts:* 14 *Watts:* 85
Power Supply Included	YES
Wafer Stage/Loader
Manufacturer	Leica
Wafer Size	200.00 mm (7.87 in)
Stage Type	Coaxial X-Y
Stage Area	*Length:* 140 mm (5.512 in) *Width:* 261.0 mm (10.276 in)

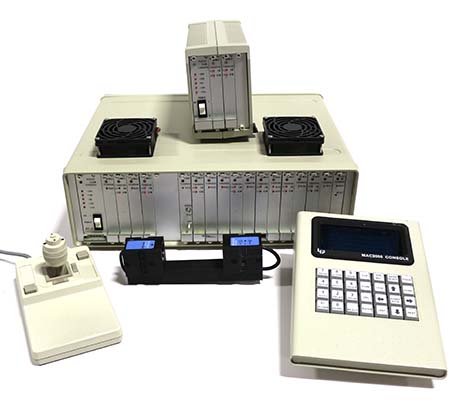

Accessories	Leica brightfield/darkfield microscope M/N: 302313 LEP motorized X-Y stage controller M/N: 73000100 LEP wobbler control M/N: 73000102 LEP MAC2000 interface console M/N: 73000352 LEP Joystick Keyence LX-132T Laser (Notch/ Edge Finder)
Other Information	Adustable aperture and field diaphragm Power requirements (Scope): 115/220 V, 50/60 Hz, 100 W Power requirements (stage controller): 100-240 V, 50/60 Hz, 300 W
