FULL DESCRIPTION of Item 187522

in Other Wafer Fabrication Equipment
Item ID: 187522

Offered 1 Offered at $ 5,750.00

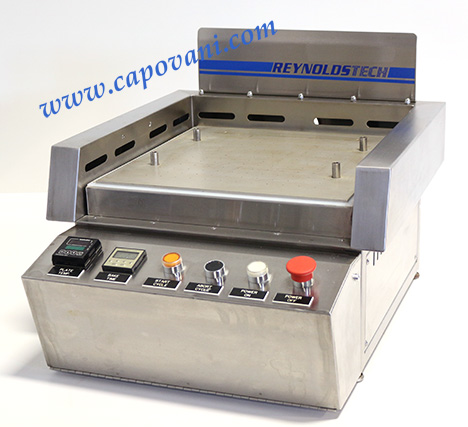

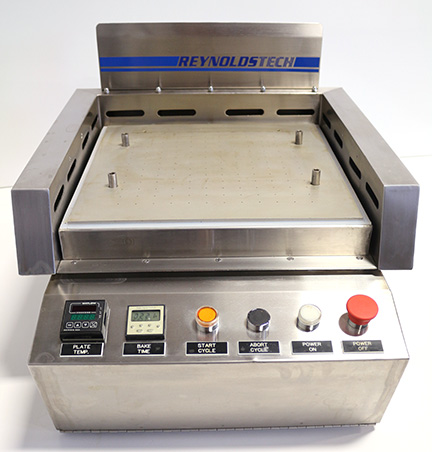

REYNOLDSTECH 16 'X 16', HOT PLATE 200° C,

200° C 16 " x 16" Hot Plate with Vacuum Hold Down

REYNOLDSTECH 16 'X 16', HOT PLATE 200° C,
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price $ 5,750.00
Number of Units 1
Manufacturer Reynoldstech
Model Custom
Description Hot Plate, 200° C, 16" x 16", Vacuum Hold Down
Other Information

Max Temp with hot plate covered -- 200°C, cover not included
Max Temp with hot plate not covered -- 160°C

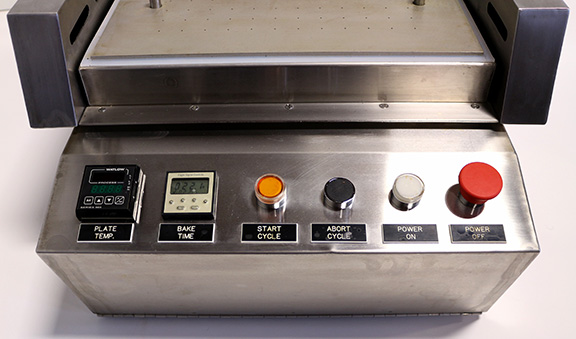

Digital set point controller
Overtemp controller
Vacuum hold down --  vacuum pump not included
(4) substrate lift pins, with 1/4-20 female threads to accept custom tips.

Lift Pin  Layout:

Top and Bottom: 4.5" from edge of hot plate to pins
Left and Right:  2.875" from edge of hot plate to pins

Vacuum hold down area:  11" Wide x 12" Deep

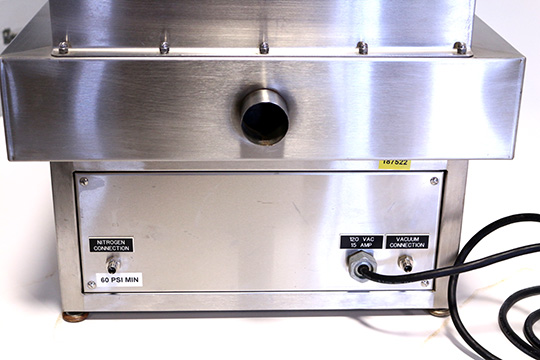

N2 Input for lift pin cyclinders.
Vacuum imput for hold down.

Condition Very Good
Power Requirements 120 V     15.0 A     50/60 Hz     1 Phase
Exterior Dimensions
  Width 21.000  in  (53.3 cm)
  Depth 26.000  in  (66.0 cm)
  Height 13.000  in  (33.0 cm)
