Item ID: 1887

Offered2 Offered at Best Price


Screen Printer

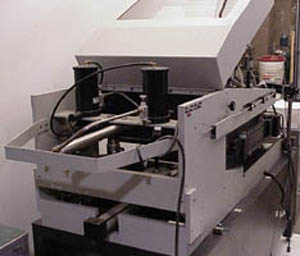

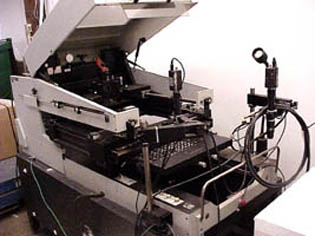

  Click to see additional image(s)... other images
Unit Price Unstated
Number of Units 2
Manufacturer MPM
Model SP2400
Description Screen Printer With Manual Vision System
Accessories Manual vision system assures precise alignment of board to stencil
Provides for fewer defects and higher yields.
Other Information System specifications:
Print area: 20" x 20" max
Frame size: 29" x 29" OD.
Board carriage
  • Registration repeatability: ±0.0005"
  • Board size: 21" x 21"
  • X Y Adjustment: ±0.500"
  • Rotary adjustment: ±10°
    Squeegee head
  • Print stroke adjustment: 1" to 23"
  • Squeegee speed: 0 to 12" per second
  • Squeegee pressure: 5 to 60 lbs.
  • Squeegee angle of attack adjustment: ±5°
  • Squeegee holder: 21" with 0.375 square blade
  • Squeegee flood blade, seperate height and level adjustment
    Motor drive: 1' range
    Vacuum work holder
    Manual vision system
  • Two camera assemblies
  • Video splitter
  • Work lamp
  • Monitor
  • Power Requirements 115 V     15.0 A     50/60 Hz     1 Phase
    Condition Excellent
    Exterior Dimensions
      Width 32.000  in  (81.3 cm)
      Depth 81.000  in  (205.7 cm)
      Height 59.000  in  (149.9 cm)
