FULL DESCRIPTION of Item 195478

in Temperature Chambers
Item ID: 195478

Offered 1 Offered at $ 6,900.00


SUN ELECTRONICS SYSTEMS TEMPERATURE CHAMBER -73C TO 315C, 6.16 CU.FT

Temperature Chamber
Liquid CO2, High Pressure 850 PSI

In addition to this Sun Electronic Systems EC16, Capovani Brothers Inc stocks a wide range of used and refurbished temperature chambers. Typical manufacturers include Blue M, Cincinnati Sub-Zero, Delta Design, Despatch, Espec, Sun Electronic Systems, Tenney, and Thermotron. To view our complete stock of used temperature chambers visit our Temperature Chamber category.

This used temperature chamber and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

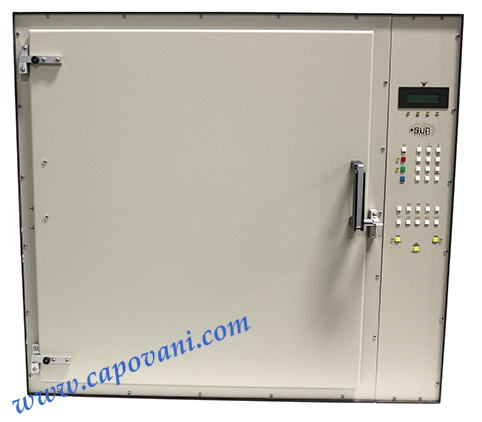

SUN ELECTRONICS SYSTEMS TEMPERATURE CHAMBER -73C TO 315C, 6.16 CU.FT
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price $ 6,900.00
Number of Units 1
Manufacturer Sun Elect. Sys
Model EC16
Minimum Temperature -73  ºC  (-99 ºF, 200.00 ºK)
Maximum Temperature 315  ºC  (599 ºF, 588 ºK)
Temperature Control
  Control Stability ± 0.500 ºC
Heat/Cool Controls
  Control Type Programmable
  Overtemperature Protection YES
  Interface IEEE 488-GPIB
Capacity/Volume Box 6.16  cu ft  (0.17 cu m)
Chamber Characteristics

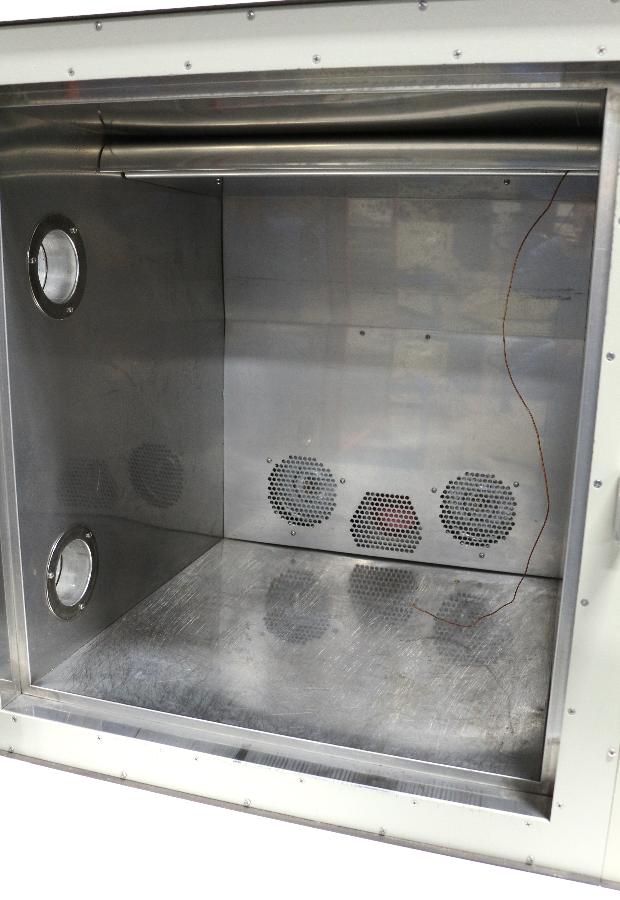

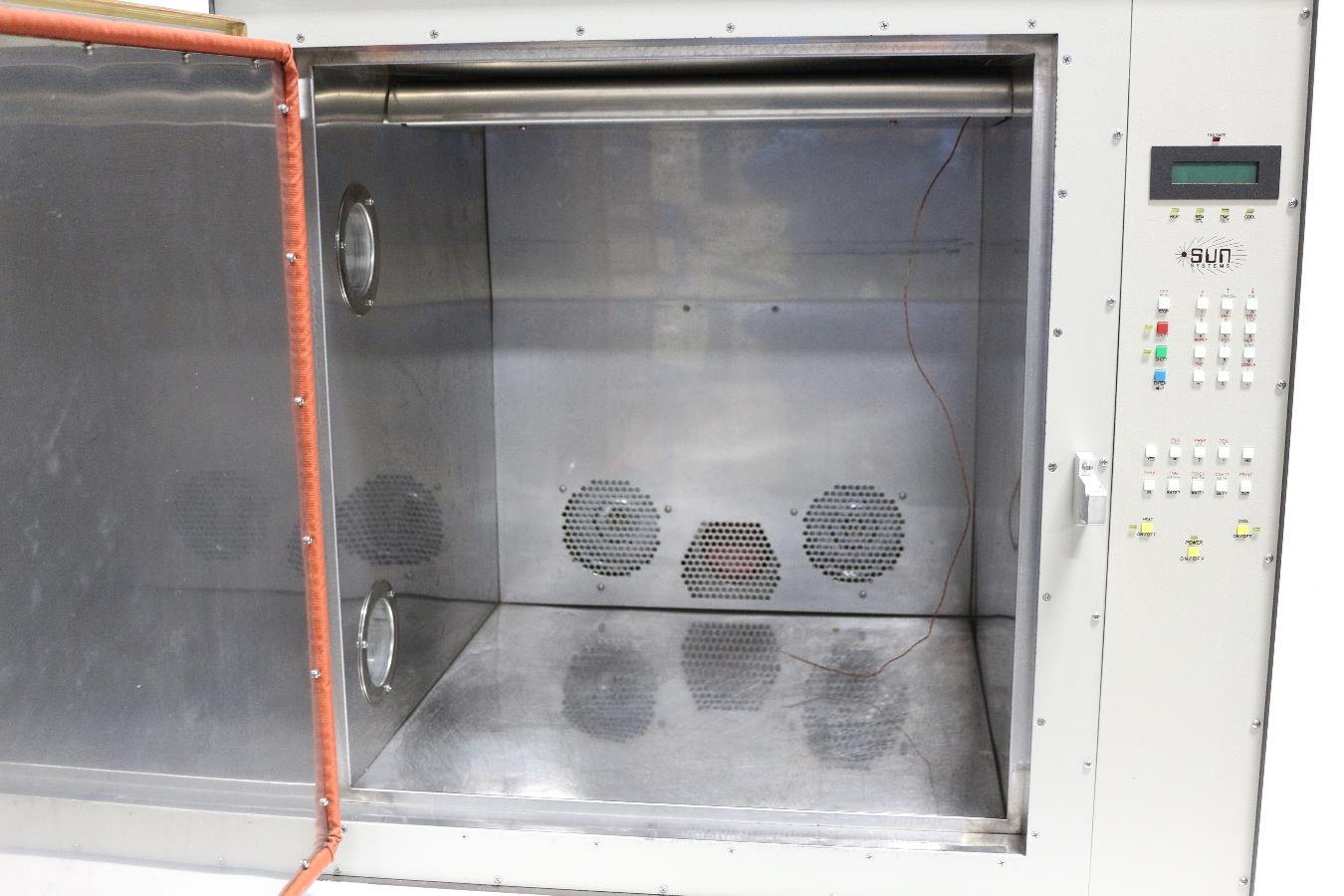

  Chamber Construction Stainless Steel
  Number and Size of Access Ports 2-3" Left side
Chamber Size
  Width 22.00  in  (55.88 cm)
  Depth 22.00  in  (55.88 cm)
  Height 22.00  in  (55.88 cm)

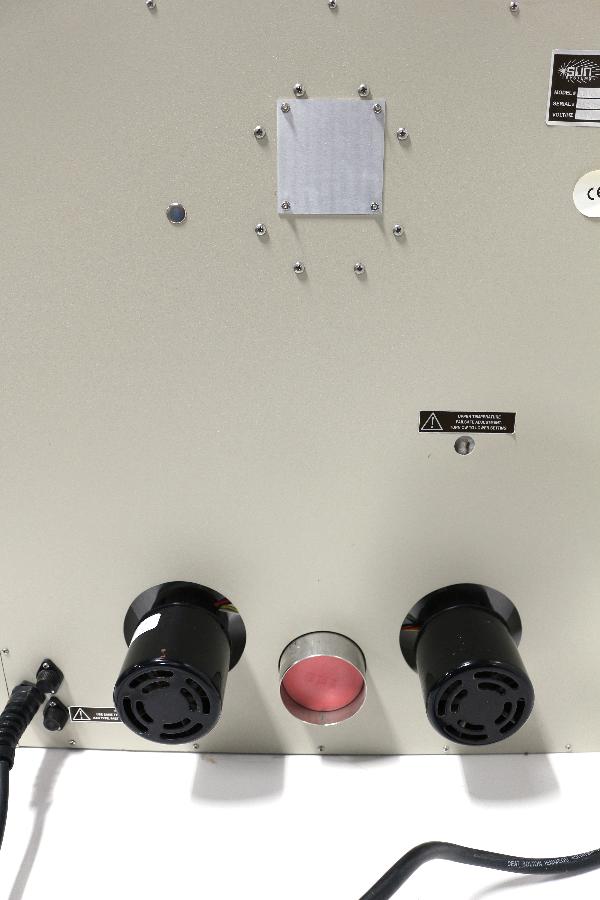

External Cooling Air Cooled
Accessories

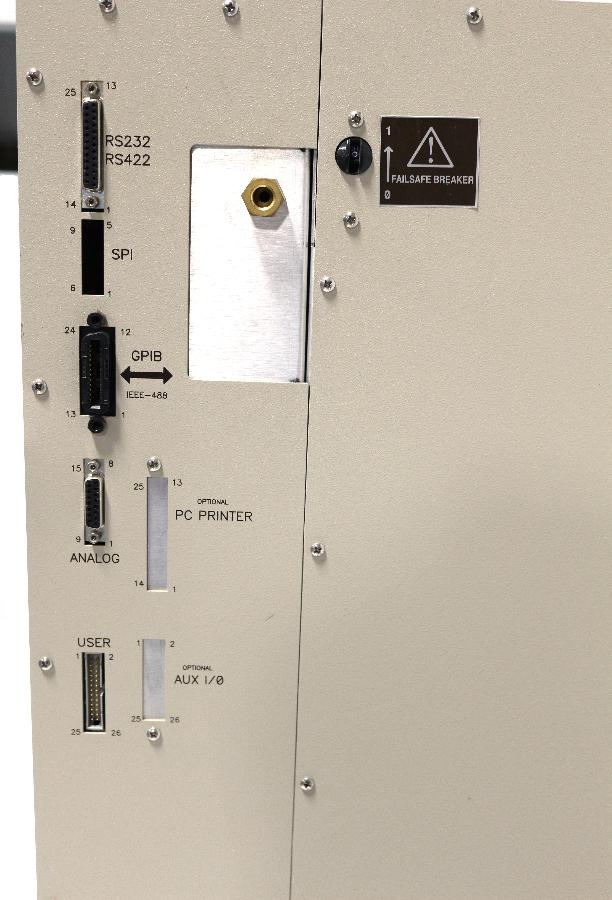

Remote Control: RS232 / RS422 / IEEE-488 bus

Other Information

Chamber configured for LCO2 @ 850 PSI


Features:

  • Heat/cool enable and disable switches
  • Battery backed memory
  • Setup menus for probe CAL.
  • Time of day clock
  • Remote interrupt operation and default conditions for alarms and interfaces
  • IEEE/RS232/RS422/IO Port Controller:

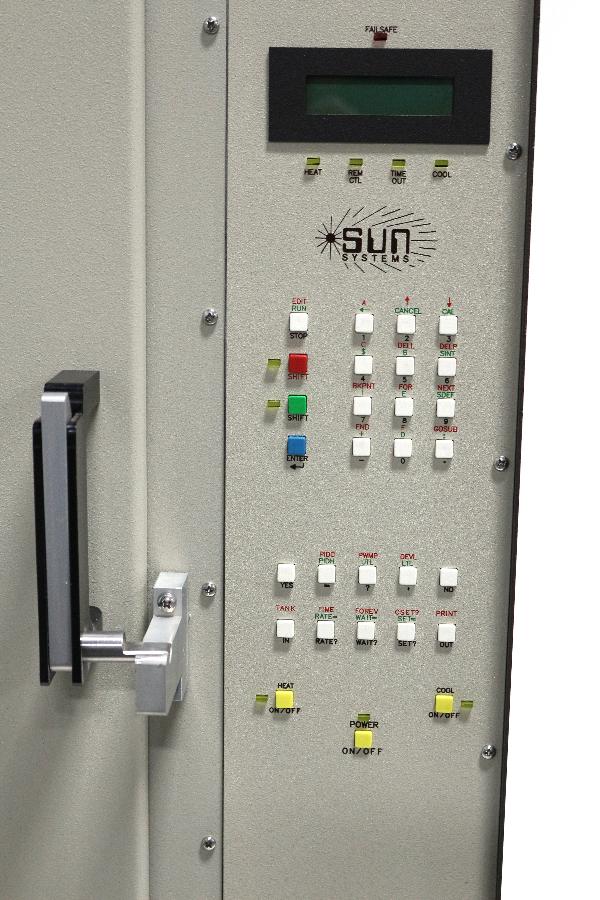

  • Programmable controller Model TC10
  • 100 plus segments (Temps. and Time)
  • Stability per month: ±0.2°C
  • Resolution: 0.02°C
  • Gas coolant usage @ 0°C 2 lbs hour(LCO2)
  • Hot/cold rate of exchange: 0.5°C/sec
  • Air flow: 60 CFM
  • Digital readout
  • CE label


Power:  6000W at 220V, 50/60 Hz, Single Phase

Extended Description  Details at Sun Electronics EC16.PDF
Power Requirements 220 V     50/60 Hz     1 Phase
CE Marked YES
Year of Manufacture 2005
Exterior Dimensions
  Width 32.000  in  (81.3 cm)
  Depth 36.000  in  (91.4 cm)
  Height 29.500  in  (74.9 cm)
Weight 139  lb  (63 kg)
