FULL DESCRIPTION of Item 3011

in Metal Etchers
Item ID: 3011

Offered1 Offered at Best Price

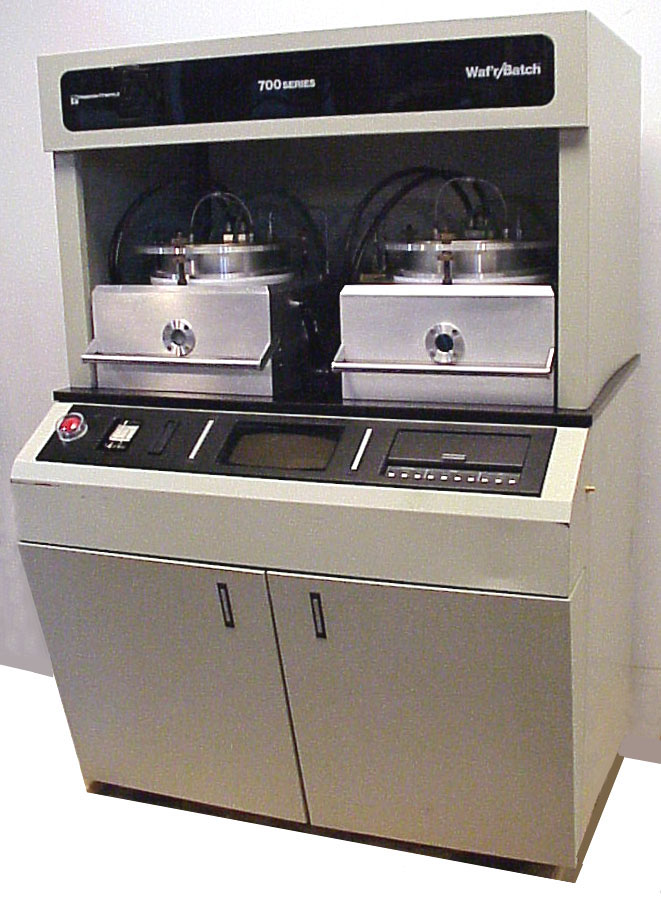

PLASMA-THERM DUAL PLASMA ETCH AND REACTIVE ION ETCH SYSTEM 200MM

Dual Plasma Etch and Reactive
Ion Etch Processing Systems

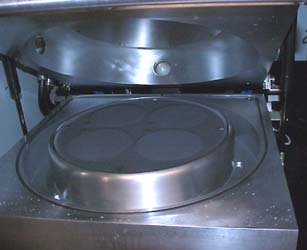

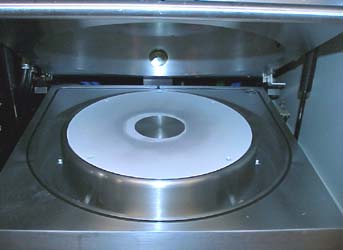

System consists of a process chamber, upper electrode (with gas feed), and substrate electrode.

In addition to this Plasma-Therm Wafer Batch 740/740, Capovani Brothers Inc stocks a wide range of used and refurbished plasma etching equipment including RIE, ICP and DRIE plasma etch tools. Typical manufacturers include Applied Materials, Branson/IPC, LAM Research, March Instruments, Oxford Instruments, Plasma-Therm, Surface Technology Systems, Tegal, and Trion Technology.

To view our complete stock of used plasma etch tools visit our Plasma Etch Equipment categories.

This used plasma etching tool and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

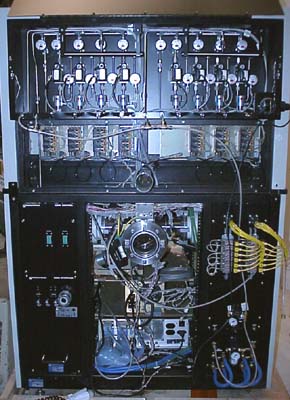

PLASMA-THERM DUAL PLASMA ETCH AND REACTIVE ION ETCH SYSTEM 200MM
  Click to see additional image(s)... other images
Unit Price Unstated
Number of Units 1
Manufacturer Plasma-Therm
Model Wafer Batch 740/740
Wafer Size Range
  Minimum 100 mm
  Maximum 200 mm
Process Plasma and Reactive Ion Etch

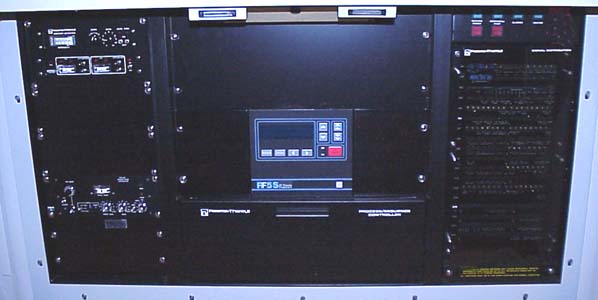

Controller Type Microprocessor Controller Type
End Point Detection Included
High Vacuum Pump Leybold 361C
Roughing Pump Ebara A10S
RF Generator Model None

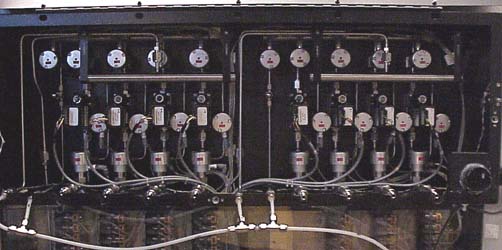

Number of Gas Inputs Four Gas
Chillers
  Number of Chillers 1
  Chiller #1Manufacturer/Model Tek-Temp MM1500/3000
Other Information Refurbishment to include the following:
  • Control Upgrade:

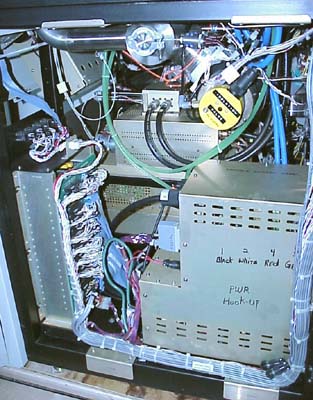

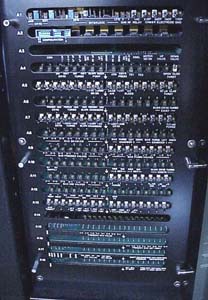

    Our operating system upgrade has been developed as a direct replacement control system for PlasmaTherm process tools using off-the-shelf IO components and modern Windows Vista compatible control system software. A complete replacement of all IO and signal wiring is performed. None of the original IO is used. A full set of system documentation is provided which includes wiring diagrams, IO listings, OEM equipment spec sheets, and full system software source code.
  • MFCs will be sent out for cleaning and recalibration; filters will be replaced.
  • Wet clean of process chambers.
  • Installation of rebuilt Leybold 361C turbo pump and controller.

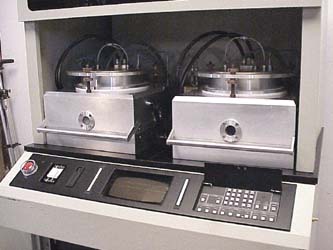

    NB: Please note that the dual chamber configuration is designed to operate sequentially. The RF generator and vacuum sources are shared for each process chamber. However each chamber has its own set of four MFCs.

  • Exterior Dimensions
      Width 45.000  in  (114.3 cm)
      Depth 43.000  in  (109.2 cm)
      Height 73.000  in  (185.4 cm)
