FULL DESCRIPTION of Item 30246

in Cluster PECVD Tools
Item ID: 30246

Offered1 Offered at Best Price

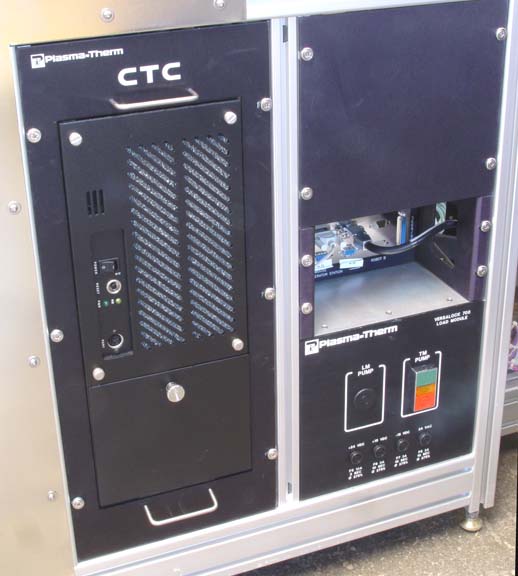

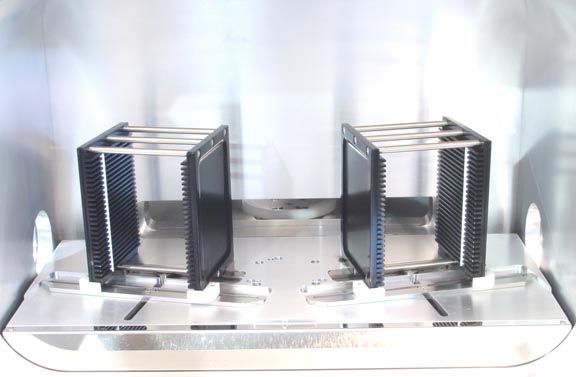

PLASMATHERM VLR 700

Single Chamber PECVD. Mixed Frequency Deposition

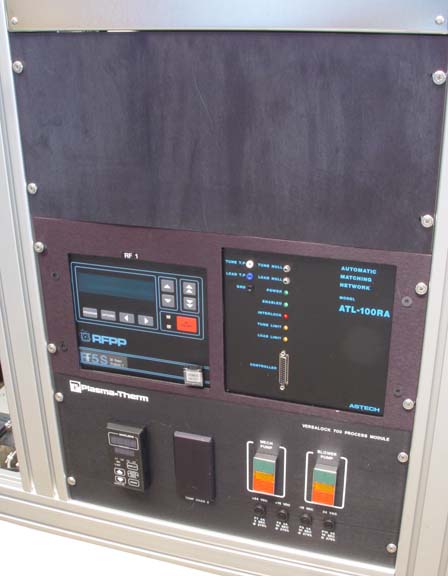

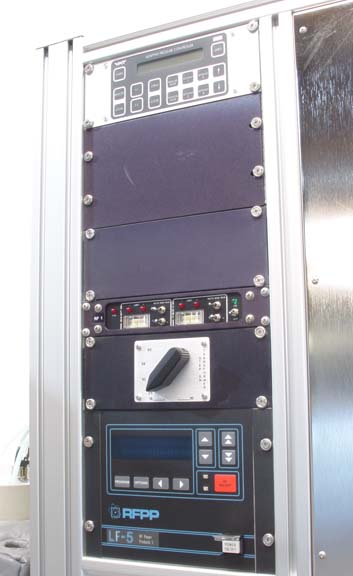

(MFD) Both High Frequency (13.56 MHz) and Low Frequency (50-460 kHz)
RF power delivered both electrodes.
PLASMATHERM VLR 700
  Click to see additional image(s)... other images
Unit Price Unstated
Number of Units 1
Manufacturer Plasma-Therm
Model VLR 700 VLR-PM1-ICRB-PM
Wafer Size Range
  Minimum 50 mm
  Maximum 200 mm
  Set Size 100 mm
Number of Chambers 1
Process Capabilities Nitride Depostion

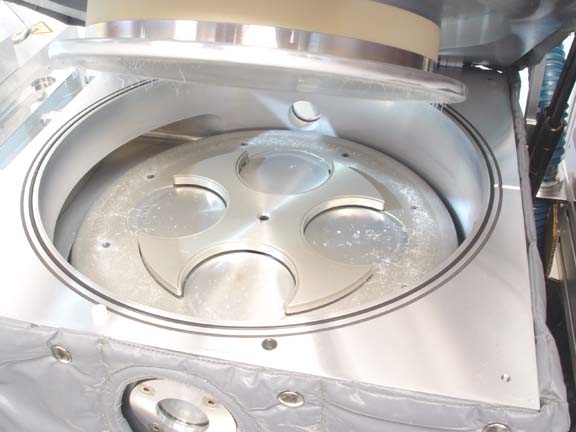

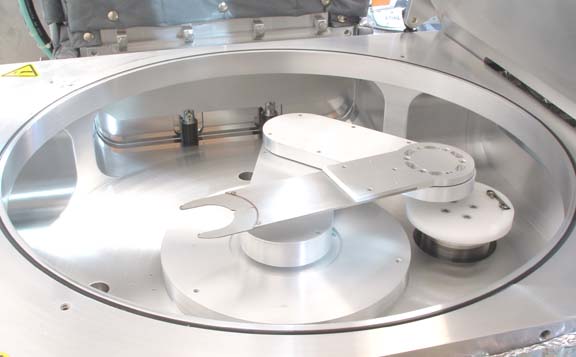

Chamber 1 Description 13.5" Electrode

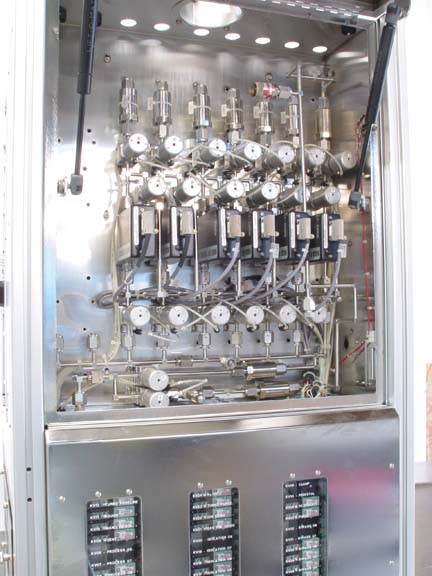

Gas Delivery
  • Six Channel; (2)2000 sccm, (2)1000 sccm, (1)200 sccm, (1)20 sccm
  • Controller Type PC Controller Type
    Temperature Control T/C
    External Cooling Water Cooled

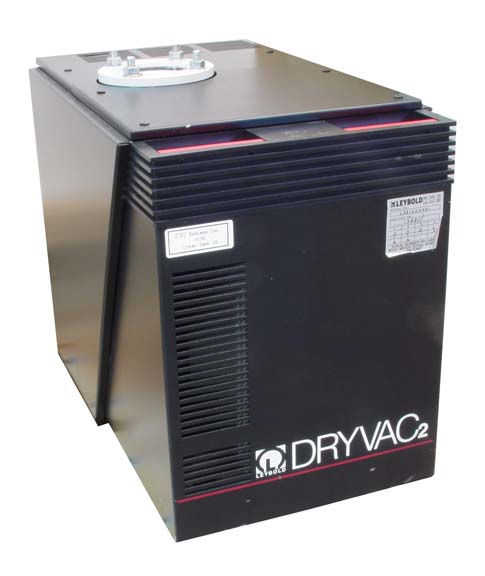

    Accessories Leybold Pump Package

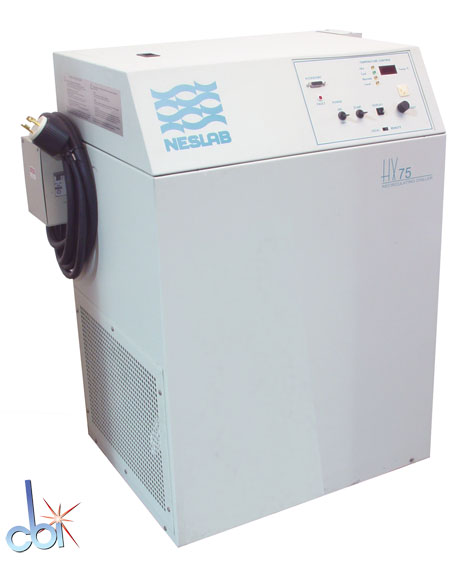

    Neslab HX 75 Chiller
    Other Information Computer #1 dual boot VxWorks Wind River Systems 5.3.1 BSP version 1.1/1 and
    Windows 3.11 System Monitor VLR v.1.10

    Computer #2 NT4, Versaworks 2.5

    Year of Manufacture 1999
    Condition Excellent
