FULL DESCRIPTION of Item 31708

in Linear Stages
Item ID: 31708

Offered12 Offered at $ 310.00 (each)

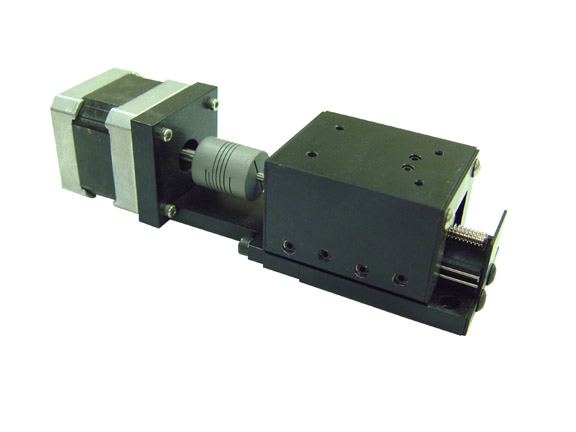

DEL-TRON PRECISION, INC. MOTORIZED LINEAR STAGE, 1" TRAVEL

Motorized Linear Stage
DEL-TRON PRECISION, INC. MOTORIZED LINEAR STAGE, 1" TRAVEL
  Click to see additional image(s)... other image
Unit Price $ 310.00 (each)
Number of Units 12
Manufacturer Del-Tron Precision
Model None
Configuration Single Axis
Total Travel, XYZ X: 1.00  in  (25 mm)
Mechanical Drive System Lead screw
Stage Bearing Type Ball Bearing
Screw Pitch 21 turns per inch
Stage Length 7.00  in  (178 mm)
Stage Width 1.75  in  (44 mm)
Table Length 2.25  in  (57.15 mm)
Table Width 1.75  in  (44.45 mm)
Tabletop Height 1.36  in  (34.54 mm)
Maximum Payload 15.00  lb  (6.80 kg)
Motor  Drive: Stepper Motor
Other Information Motor: VEXTA m/n PK 244-03BA
Exterior Dimensions
  Width 1.750  in  (4.4 cm)
  Depth 7.000  in  (17.8 cm)
  Height 1.360  in  (3.5 cm)
Weight 2  lb  (1 kg)
