FULL DESCRIPTION of Item 45428

in Poly/Nitride Etchers
Item ID: 45428

Offered1 Offered at Best Price

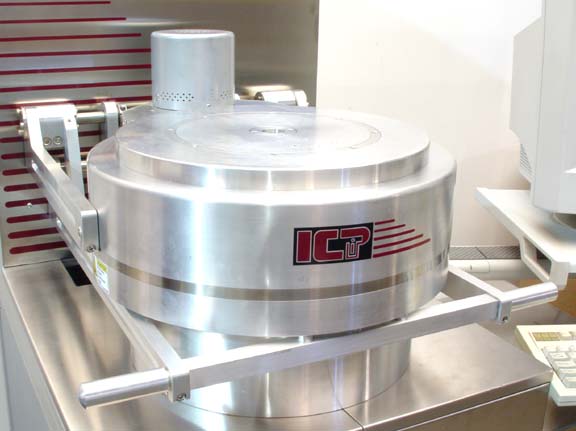

PLASMATHERM ICP PLASMA ETCHER

Inductively Coupled Plasma Etcher with 9.5 Inch Electrode

In addition to this Plasma-Therm 790 ICP, Capovani Brothers Inc stocks a wide range of used and refurbished plasma etching equipment including RIE, ICP and DRIE plasma etch tools. Typical manufacturers include Applied Materials, Branson/IPC, LAM Research, March Instruments, Oxford Instruments, Plasma-Therm, Surface Technology Systems, Tegal, and Trion Technology.

To view our complete stock of used plasma etch tools visit our Plasma Etch Equipment categories.

This used plasma etching tool and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

PLASMATHERM ICP PLASMA ETCHER
  Click to see additional image(s)... other images
Unit Price Unstated
Number of Units 1
Manufacturer Plasma-Therm
Model 790 ICP
Wafer Size Range
  Minimum 50 mm
  Maximum 200 mm

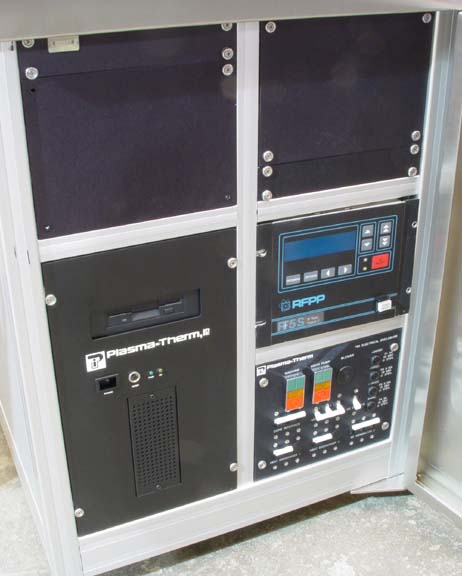

Controller Type PC Controller Type
High Vacuum Pump Leybold 361C
Roughing Pump Leybold D40BCS

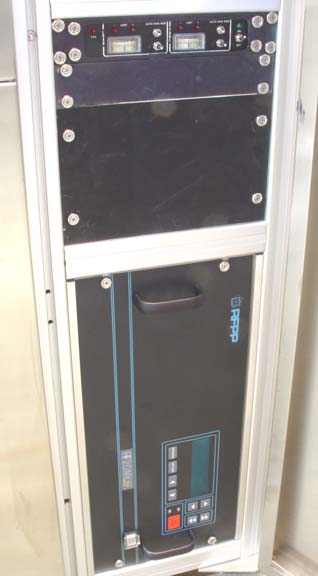

RF Generator Model RFPP RF20M & RF5S
Automatch Text RFPP AM-20 & AM-5
Number of Gas Inputs Three Gas
Process Gases TBD
Other Information The top coil is supplied 2 MHz RF at 1000 watt max. RFPP Model RF20M
The bottom electrode is supplied 13.56 MHz RF at 500 Watts. RFPP Model RF5S

Refurbishment to Include:
Cleaning and recalibration of mass flow controllers.
Rebuilding of Leybold D40BCS prepped only with fomblin oil.
Rebuilding of Leybold 361C Turbo pump.
Cleaning of chamber and gas shower.
Power Requirements 208 V     60.0 A     60 Hz     3¬†Phase
Year of Manufacture 1998
Refurbished YES
