FULL DESCRIPTION of Item 59142

in Barrel Resist Strippers
Item ID: 59142

Offered1 Offered at $ 32,500.00


METROLINE BOX PLASMA ETCHER

Box Plasma Etcher
METROLINE BOX PLASMA ETCHER
  Click to see additional image(s)... other images
Unit Price $ 32,500.00
Number of Units 1
Manufacturer Metroline
Model M4L
Rated Power Output 1000 Watts
Chamber Construction Aluminum/box
Chamber Size
  Width 13.00  in  (33.02 cm)
  Depth 17.00  in  (43.18 cm)
  Height 9.00  in  (22.86 cm)
Number of Gas Inputs Three Gas
Automatching Network Included Yes
Vacuum Pump Included Yes
RF Generator Model Seren

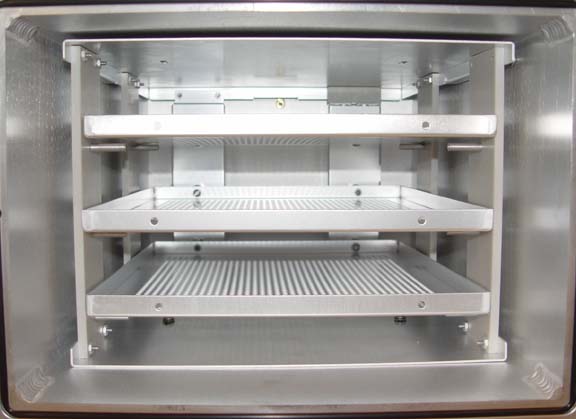

Accessories (3) Shelves Included
Leybold D25B Vacuum Pump
Other Information Windows based software

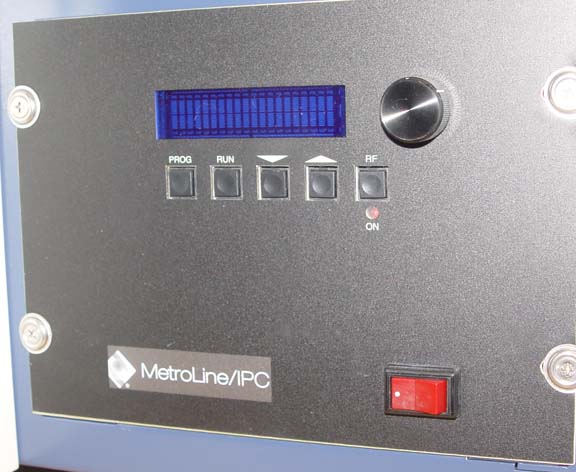

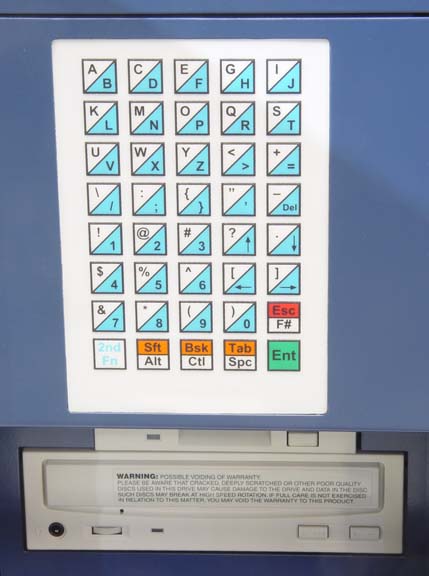

LCD touch panel,keyboard
Process under computer control
Built-in statistics and data gathering to disk
64 Process steps
Vacuum conection: KF 40
Gases: O2, AR, N2
MKS Throttle valve
Vacuum connection hose
Power Requirements 120 V     30.0 A     60 Hz     1¬†Phase
CE Marked YES
Exterior Dimensions
  Width 28.000  in  (71.1 cm)
  Depth 31.500  in  (80.0 cm)
  Height 30.000  in  (76.2 cm)
Weight 613  lb  (278 kg)
