FULL DESCRIPTION of Item 621

in Rotary Vane Pumps
Item ID: 621

Offered6 Offered at $ 1,300.00 (each)


LEYBOLD ROTARY VANE MECHANICAL VACUUM PUMP 7 CFM

Two Stage Mechanical Vacuum Pump

 Once sold, all mechanical vacuum pumps will be rebuilt to factory specifications, unless stated otherwise.

All rebuilt pumps are sold with a one year warranty on parts and labor.
Pumps can be ordered Fomblin® or standard hydrocarbon oil prepped.

Pumping speed and ultimate pressure are based on 60 Hz operation.

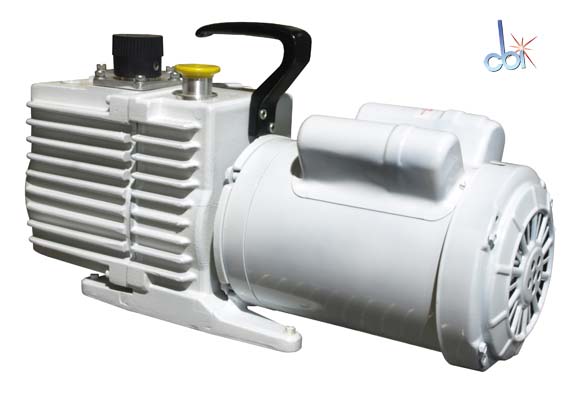

Leybold D8A

Representive photo.



LEYBOLD ROTARY VANE MECHANICAL VACUUM PUMP 7 CFM
  Click to see additional image(s)... other image
Unit Price $ 1,300.00 (each)
Number of Units 6
Manufacturer Leybold
Model D8A
Pumping Speed 7.0  CFM  (197.8 l/m)
Ultimate Pressure  3.00E-4(En)  torr  (4.00E-4 mbar)
Inlet Flange KF     25.0  mm  (0.984 in)
Exhaust Flange KF     25.0  mm  (0.984 in)
Refurbished YES
Two-Stage YES
Motor Horsepower 3/4  HP
Rotational Speed 1,725 RPM
Oil Capacity Minimum: 0.30  L  (0.32 qt, 0.07 Br gal)     Maximum: 0.90  L  (0.95 qt, 0.20 Br gal)
Power Requirements 115/ 230 V     9.0 A     5.0 A(2)     60 Hz     1¬†Phase
Exterior Dimensions
  Width 9.000  in  (22.9 cm)
  Depth 21.000  in  (53.3 cm)
  Height 10.000  in  (25.4 cm)
Weight 65  lb  (29 kg)
