Item ID: 63666

Offered2 Offered at Best Price

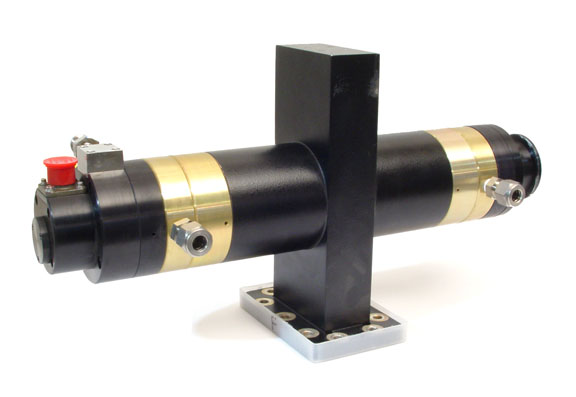

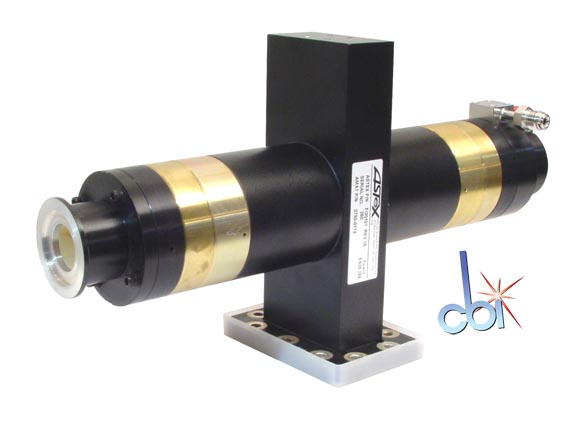

Chemical Downstream Plasma Source

Applied Materials part number: 3750-0112
  Click to see additional image(s)... other images
Unit Price Unstated
Number of Units 2
Manufacturer Astex
Model AX 7610
Description Chemical Downstream Plasma Source
Other Information The AX7610 is a microwave plasma source for downstream chemical etch applications,
such as photoresist stripping and hard mask removal.
With replaceable quartz or sapphire tubes, the AX7610 downstream source offers flexibility of configuration to meet the most demanding application process parameters.
The sapphire tube version is compatible with much more severe CF4 and NF3 chemistries for isotopic etch and other applications.

Sapphire Plasma Source Tube
P/N F120101
Applied part number: 3750-0112
Max power output: 3 kW
Inert gas fitting: 1/4" VCR
Output flange: KF 40
Operating pressure: 2 to 8 Torr
Elect requirments: 24VDC 1 Amp
Process gas compatibility:
O2, N2, H2O, Ar, NF3, CF4, F6, and other Florine based gases

Exterior Dimensions
  Width 8.000  in  (20.3 cm)
  Depth 4.500  in  (11.4 cm)
  Height 14.500  in  (36.8 cm)
Weight 10  lb  (5 kg)
