Item ID: 81786

Offered1 Offered at $ 750.00

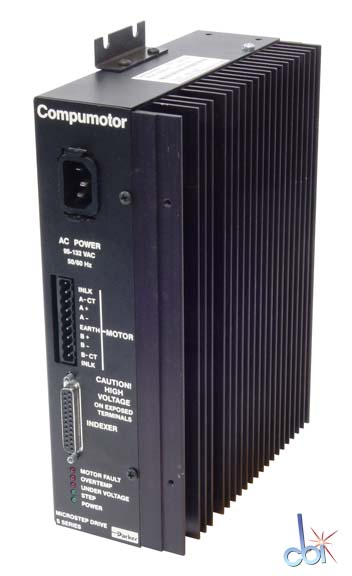

Stepper Drive/Indexer
  Click to see additional image(s)... other image
Unit Price $ 750.00
Number of Units 1
Manufacturer Compumotor
Model S57-83
Description Stepper Drive/Indexer
Other Information Torques from 65 to 1,900 oz-in
Speeds to 50 rps (3,000 rpm) continuous
16 user selectable motor resolutions to 50,800 steps/rev
Three-state current control for reduced motor heating
User-selectable current waveform for smooth operation
Zero phase input resets phase currents to the power up positions
Fault output for remote signaling and diagnostics
Optically isolated step and direction, shutdown and zero phase inputs
Anti-resonance eliminates mid-range instability
Exterior Dimensions
  Width 7.000  in  (17.8 cm)
  Depth 3.250  in  (8.3 cm)
  Height 9.500  in  (24.1 cm)
Weight 11  lb  (5 kg)

Shipping & Handling:

Unless otherwise stated, all items will be fully tested and sold with our standard ninety day warranty, which is described in our terms and conditions.
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, Fax: 518.381.9578).

Minimum order of $50 required.
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.
