FULL DESCRIPTION of Item 91174

in Horizontal Diffusion Furnaces
Item ID: 91174

Offered1 Offered at $ 3,500.00

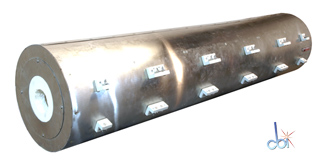

MRL INDUSTRIES FURNACE TUBE

Furnace Tube
MRL INDUSTRIES FURNACE TUBE
  Click to see additional image(s)... other images
Unit Price $ 3,500.00
Number of Units 1
Manufacturer MRL Industries
Model 400-902959
Maximum Temperature 1,200  ºC  (2,192 ºF, 1,473 ºK)
Other Information Zones: 3, center zone has 3 sections
Load zone: 10.00" long, 2.3 KW, 240 volt.
Center zone: 36.00" long, 5.4 KW, 240 volt.
Source zone: 10.00" long, 2.3 KW, 240 volt.
3" Refractory opening, 5" I.D.
Thermocouples not included.
See furnace diagram in "other images" link 5
All heater elements have individual connection terminals, diagram shown is for rated voltage and power
Exterior Dimensions
  Width 14.000  in  (35.6 cm)
  Height 64.000  in  (162.6 cm)
Weight 88  lb  (40 kg)
