Item ID: 222878

Offered 1 Offered at Best Price

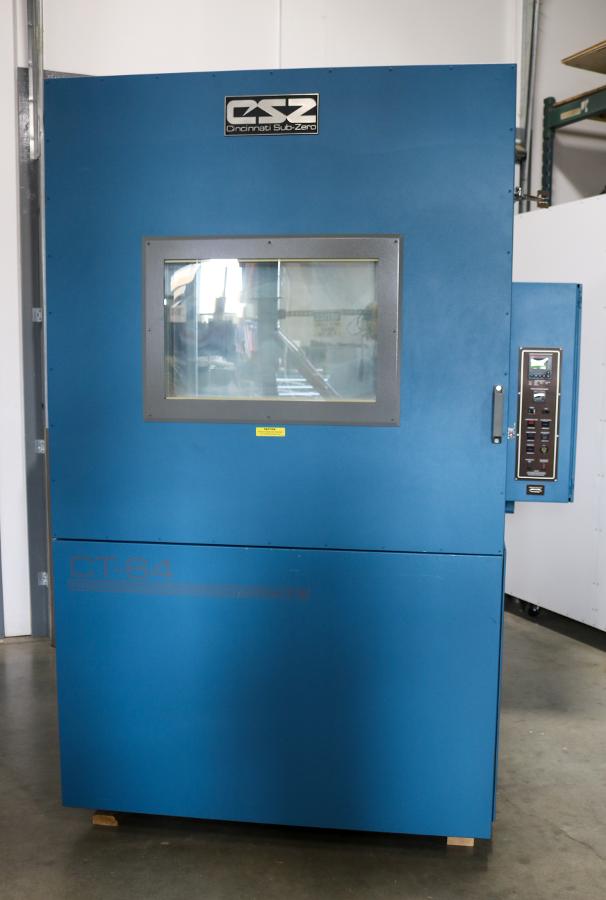

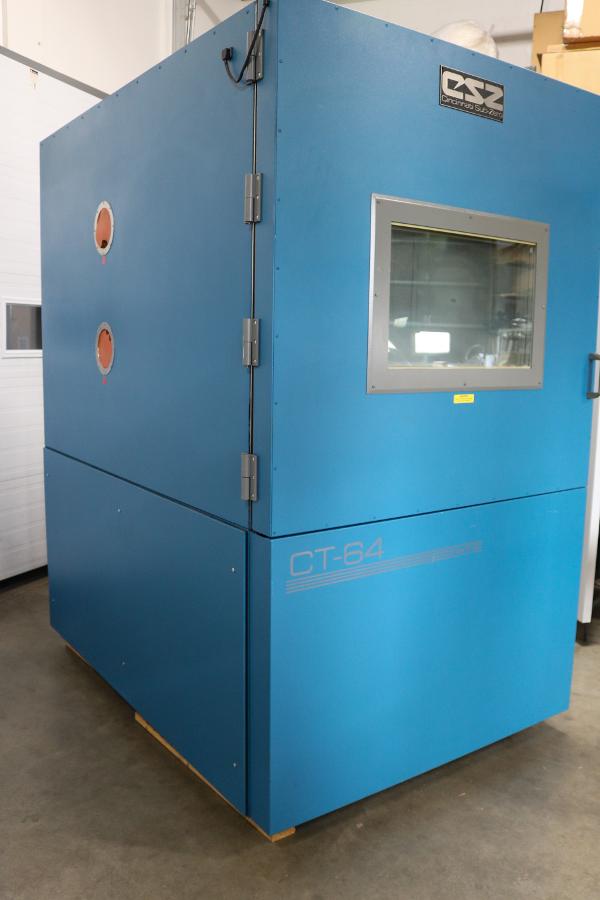

64 Cubic Foot Temperature Chamber

In addition to this Cincinnati Sub-Zero CT-64-3-H/AC, Capovani Brothers Inc stocks a wide range of used and refurbished temperature chambers. Typical manufacturers include Blue M, Cincinnati Sub-Zero, Delta Design, Despatch, Espec, Sun Electronic Systems, Tenney, and Thermotron. To view our complete stock of used temperature chambers visit our Temperature Chamber category.

This used temperature chamber and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Cinci Sub-Z
Model CT-64-3-H/AC

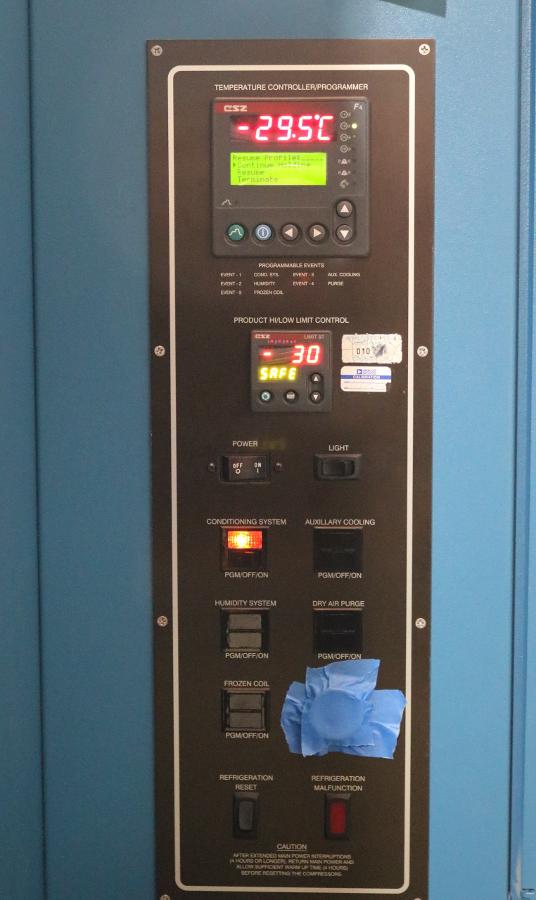

Minimum Temperature -34  ºC  (-29 ºF, 239.00 ºK)

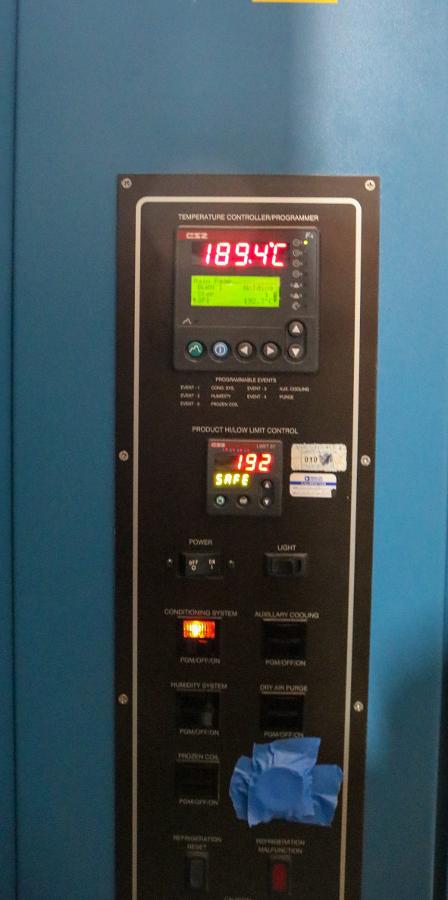

Maximum Temperature 190  ºC  (374 ºF, 463 ºK)
Heat/Cool Controls
  Control Type Programmable

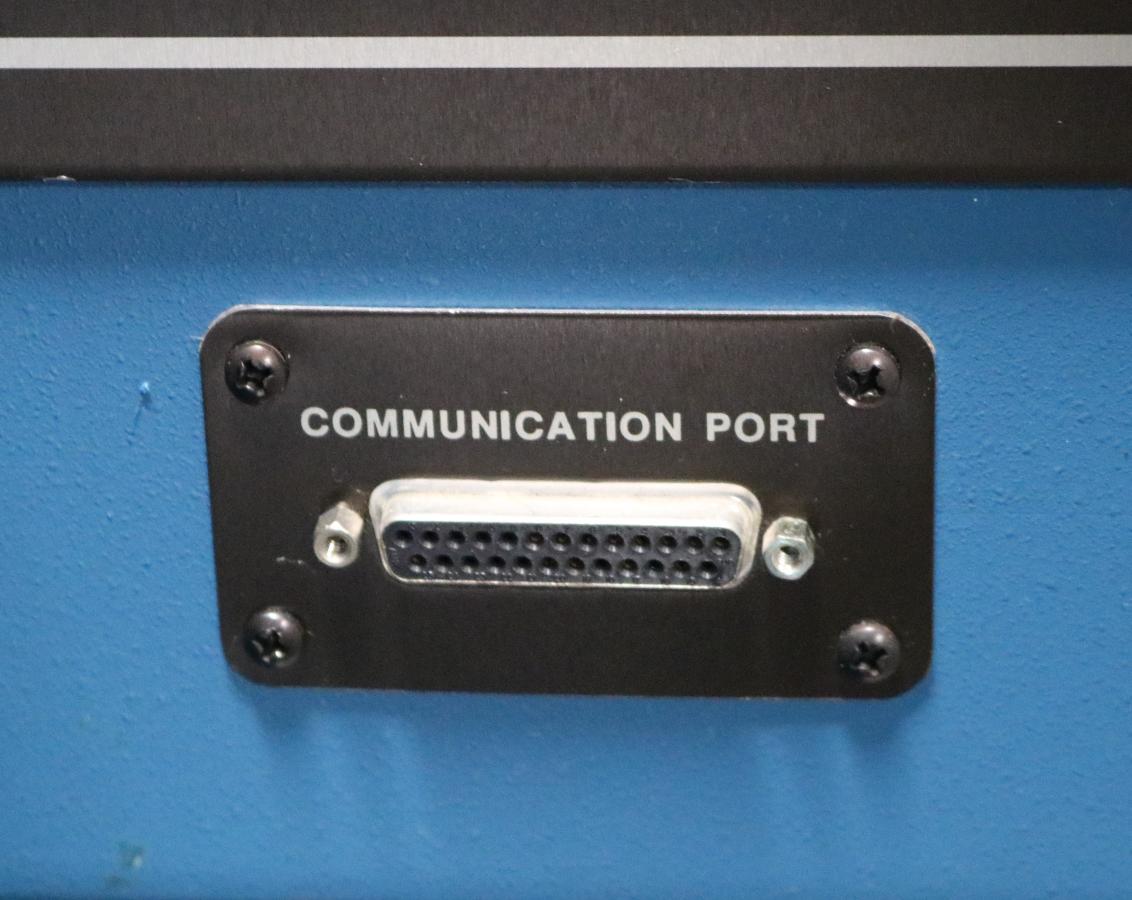

  Interface IEEE 488-GPIB
  Controller Manufacturer/Model Watlow F4 Dual Channel Ramping Controller
Capacity/Volume Box 64.00  cu ft  (1.81 cu m)
Chamber Characteristics
  Chamber Construction Stainless Steel
  Maximum Number of Shelves 0
  Number of Shelves Provided 0

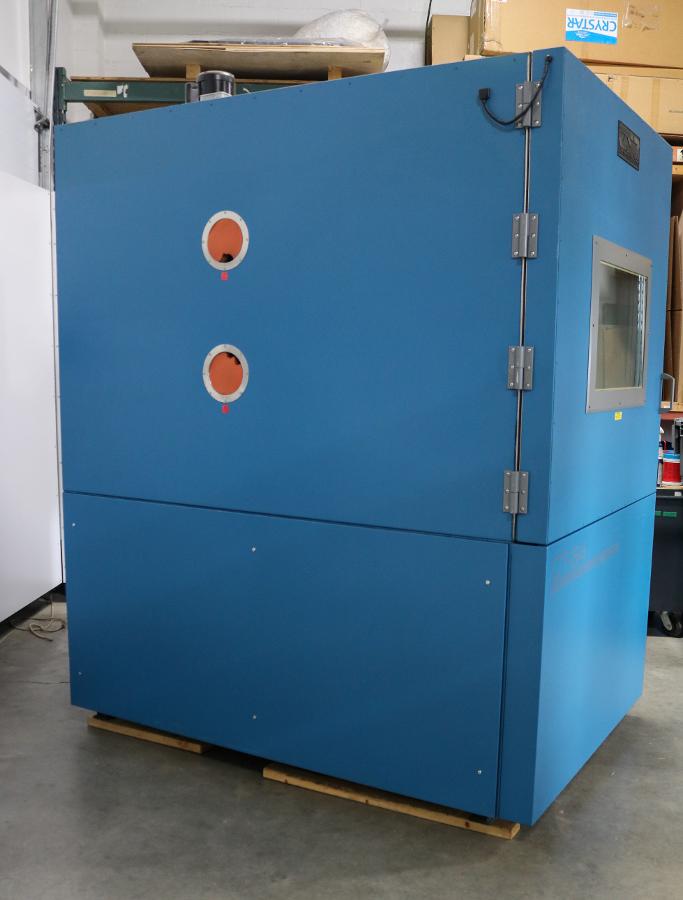

  Number and Size of Access Ports 2-6" left side
  Viewing Window YES
Chamber Size
  Width 48.00  in  (121.92 cm)
  Depth 48.00  in  (121.92 cm)
  Height 48.00  in  (121.92 cm)
External Cooling Forced Air Cooled
Refrigerant Type & Quantity Suva R-404A 8-lbs
Other Information

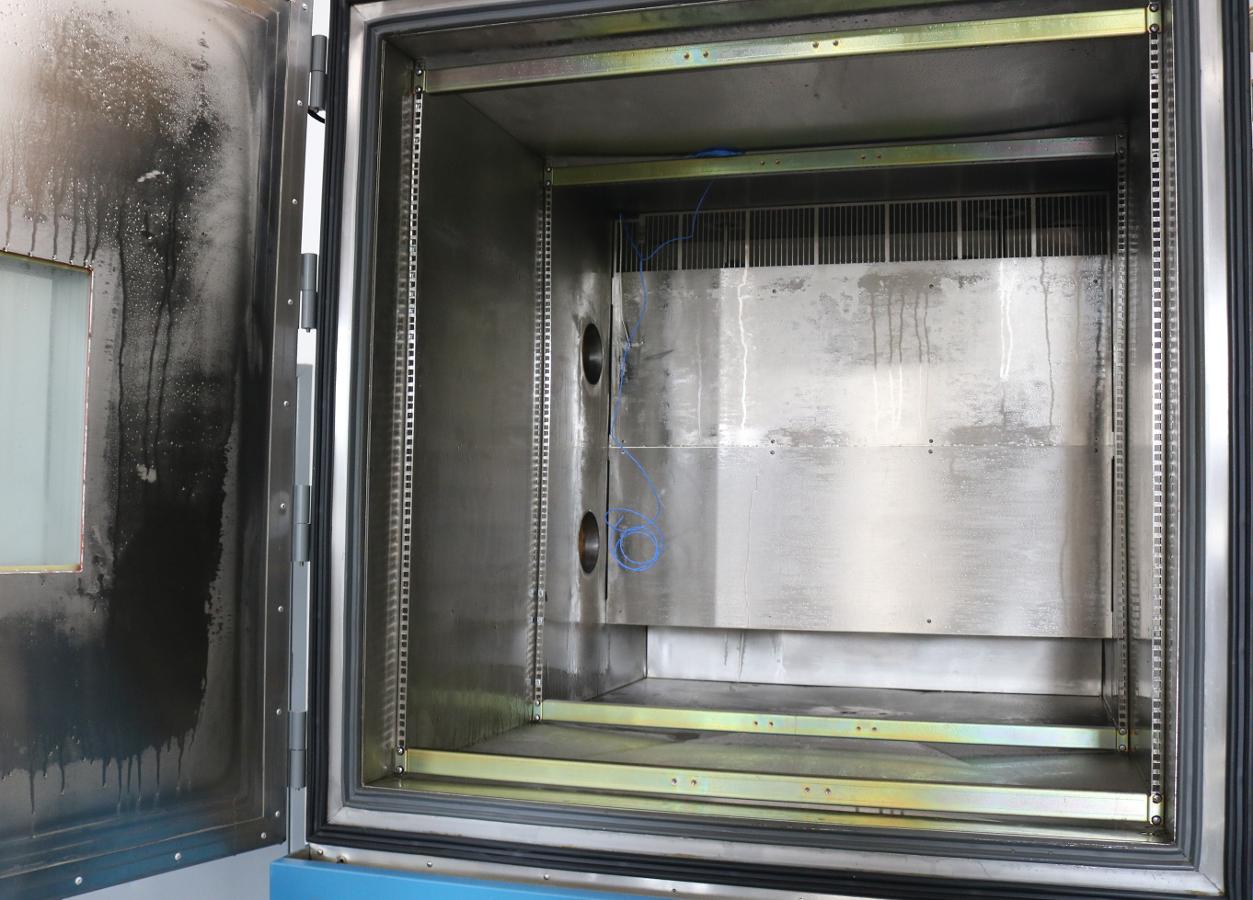

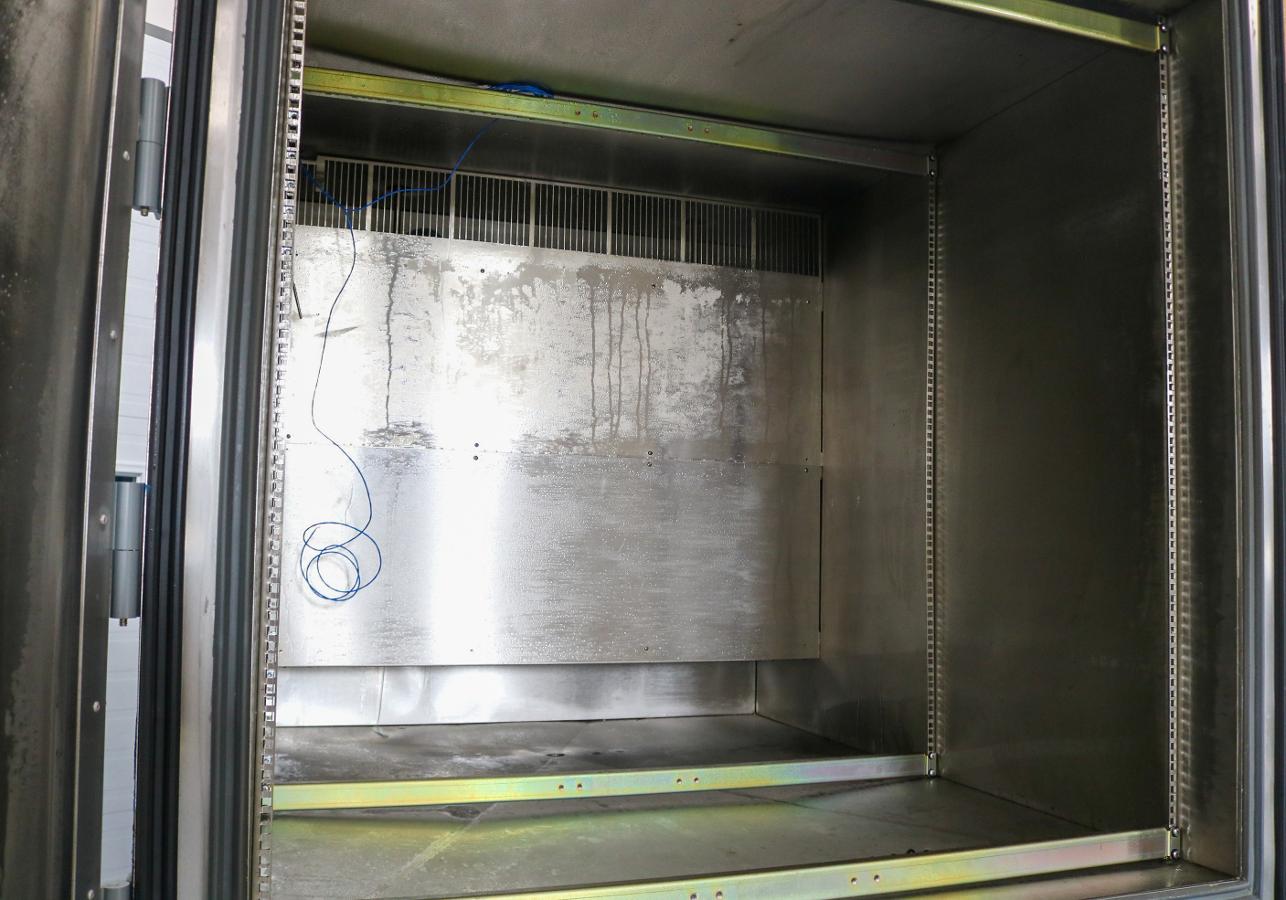

No shelves, set up for 19 ½” rack mount equipment

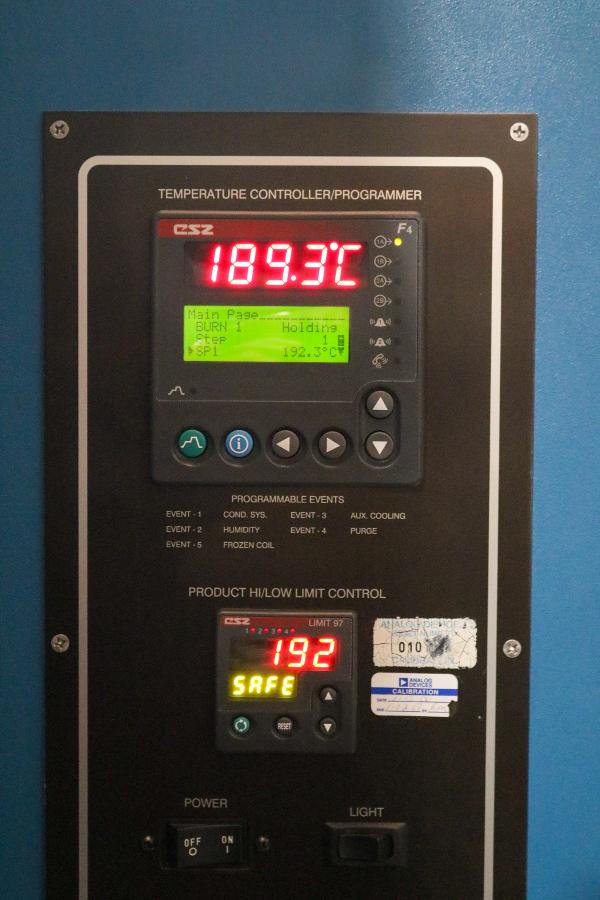

Watlow F4 Dual Channel Ramping Controller (Part#: F4DH-KKKK-21AH)

Watlow Limit 97 Temperature Limit controller (Part#:97A0-DCDA-00AH)

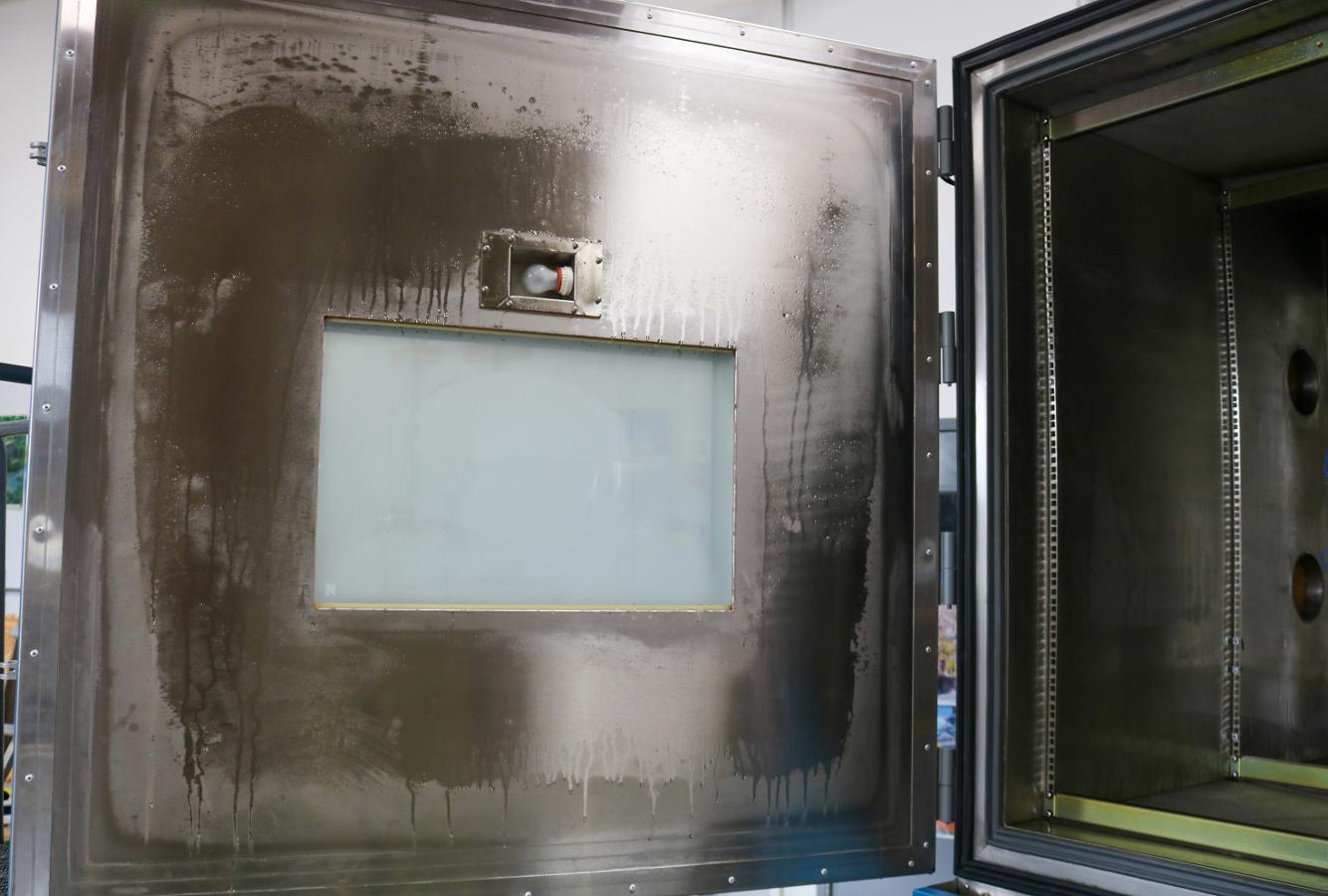

25.5" X 16.5" window

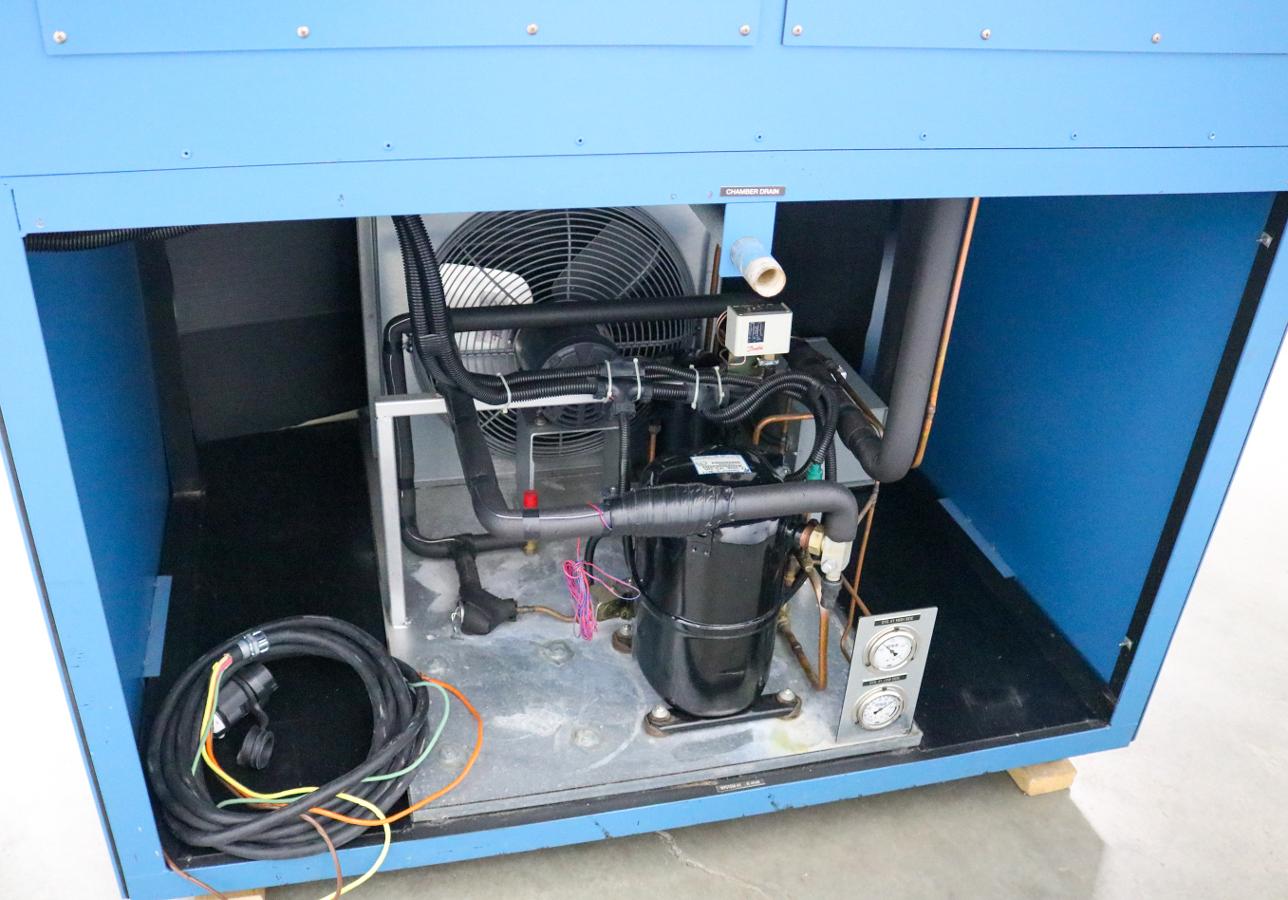

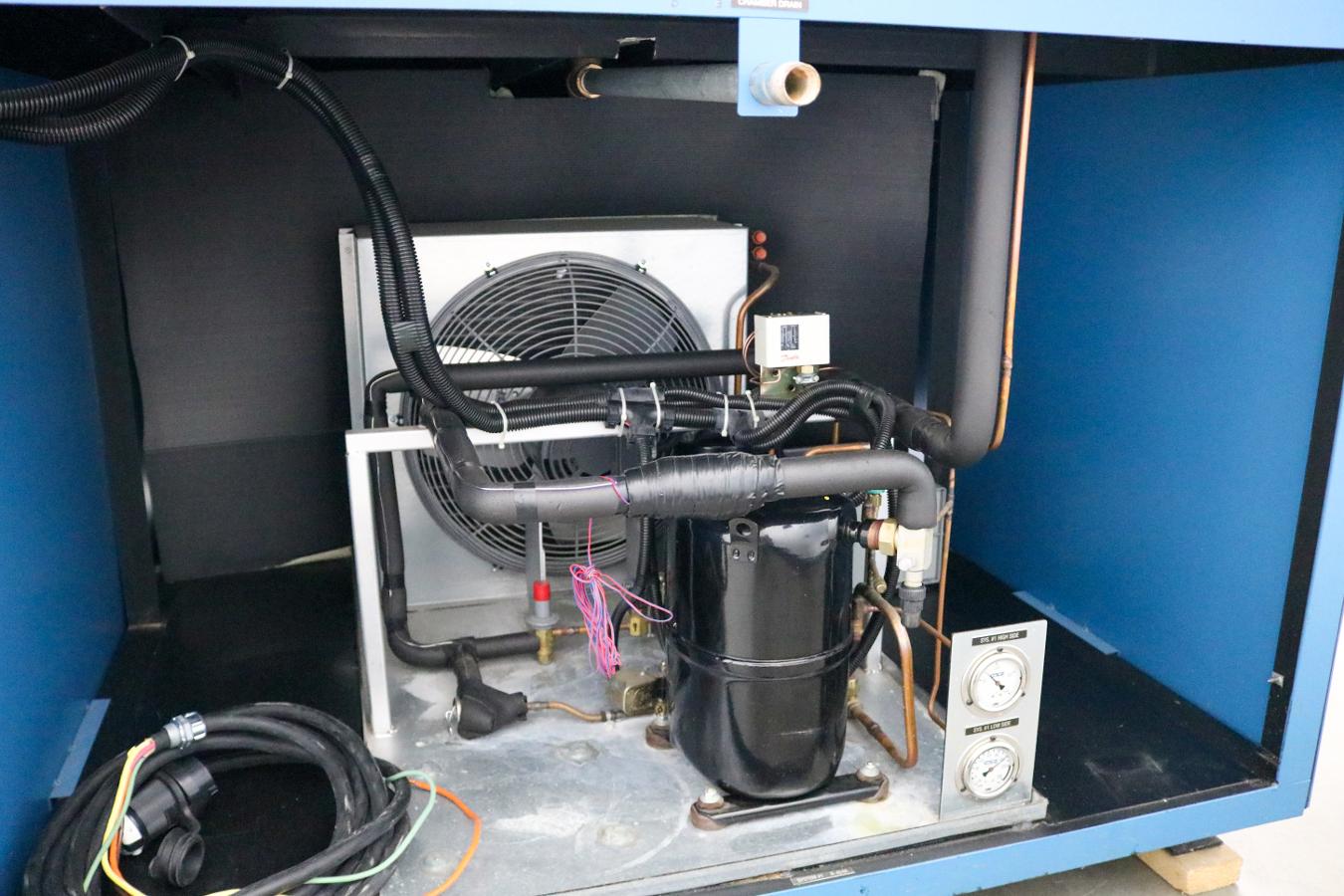

Single Stage Compressor, 404A, 460VAC, 21A, 60Hz

Power Requirements 460 V     21.0 A     60 Hz     3 Phase
Year of Manufacture 2002
Exterior Dimensions
  Width 71.000  in  (180.3 cm)
  Depth 83.000  in  (210.8 cm)
  Height 106.000  in  (269.2 cm)
Weight 2,040  lb  (925 kg)
