Item ID: 2626

Offered 2 Offered at Best Price

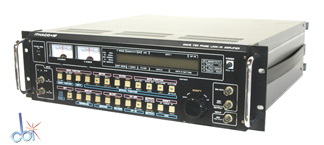

ITHACO TWO PHASE LOCK-IN AMPLIFIER

Two Phase Lock-in Amplifier

ITHACO TWO PHASE LOCK-IN AMPLIFIER
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 2
Manufacturer Ithaco
Model 3961B
Description Amplifier/Two Phase Lock-In
Interface RS 232
Other Information

System: Two phase with tracking input filter
Input system:

  • Sensitivity: 100nVT 1V full scale in 1-3.16-10 steps(15 ranges) max resolution 1nV max
  • Frequency range: 0.5 Hz to 200 kHz
  • Input type: single ended or true differential
  • Input impedance: 10mÙ parallel capacitance 40 ± 10pF
  • Common mode rejection ratio: 110dB or greater
  • IEEE port
    More information available
Power Requirements 120/220 V     2.0 A     1.0 A(2)     47-63 Hz     1 Phase
Condition Excellent
Exterior Dimensions
  Width 17.000  in  (43.2 cm)
  Depth 20.000  in  (50.8 cm)
  Height 5.250  in  (13.3 cm)
Weight 31  lb  (14 kg)
