FULL DESCRIPTION of Item 191696

in Barrel Resist Strippers
Item ID: 191696

Offered 1 Offered at Best Price

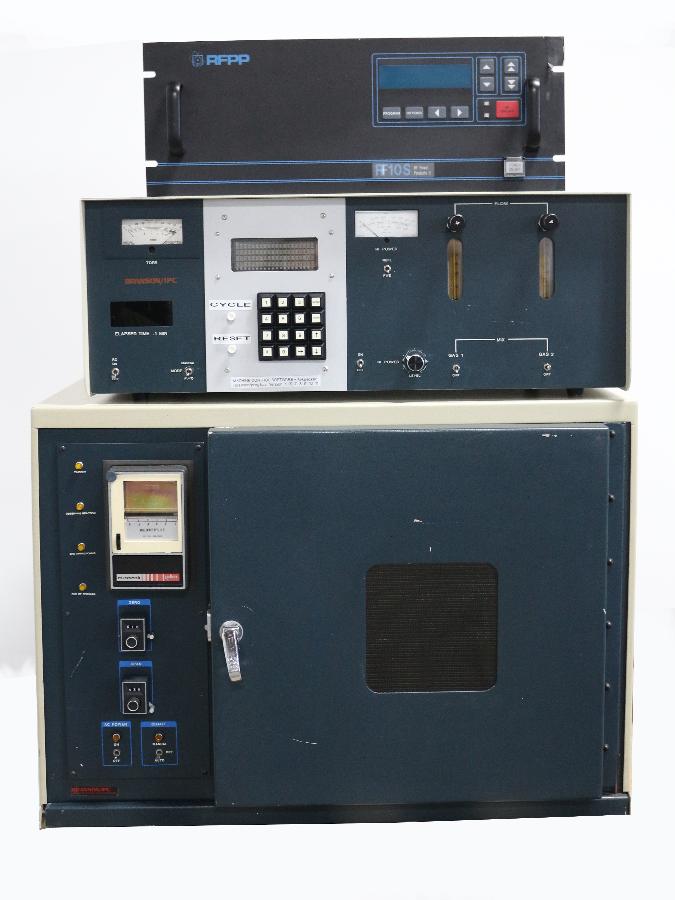

BRANSON BARREL PLASMA ASHER & ETCHER

Barrel Plasma Asher/Etcher

BRANSON BARREL PLASMA ASHER & ETCHER
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Branson/IPC
Model 4000 Series
Asher Type Barrel
Rated Power Output 1000 Watts

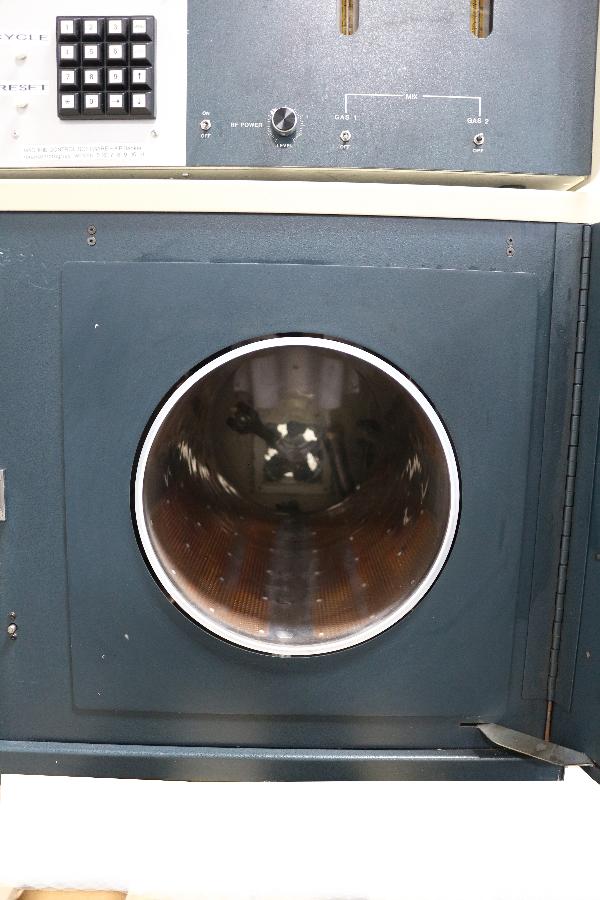

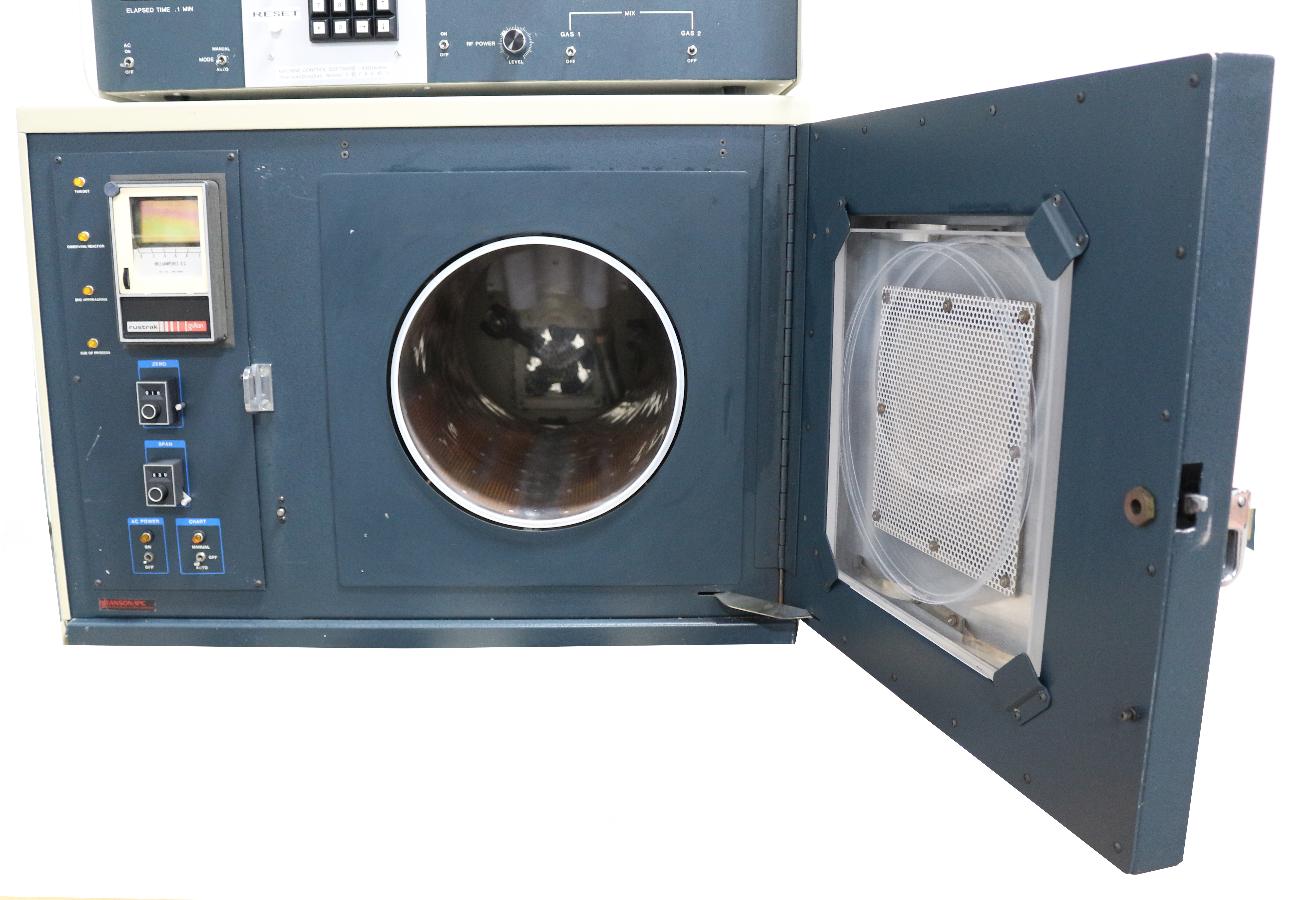

Chamber Construction Quartz
Chamber Size - Cylindrical
  Diameter 10.00  in  (25.40 cm)
  Depth 20.00  in  (50.80 cm)
  Length 20.00  in  (50.80 cm)
Number of Gas Inputs Two Gas
Automatching Network Included Yes
Vacuum Pump Included No
Vacuum Pump Model NOT INCLUDED
RF Generator Model RFPP Model 10S

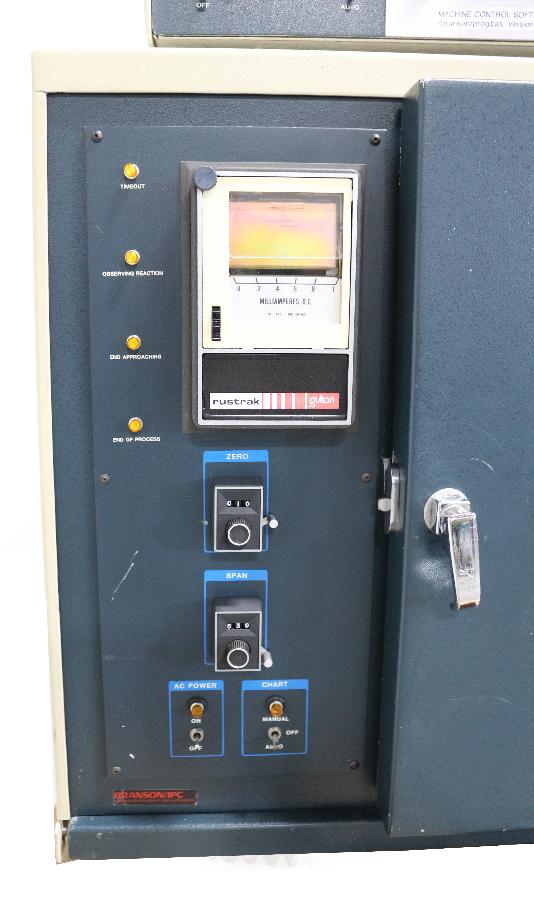

Panel Meters Analog
External Cooling Forced Air Cooled
Other Information

Chamber: Model S3075-11020

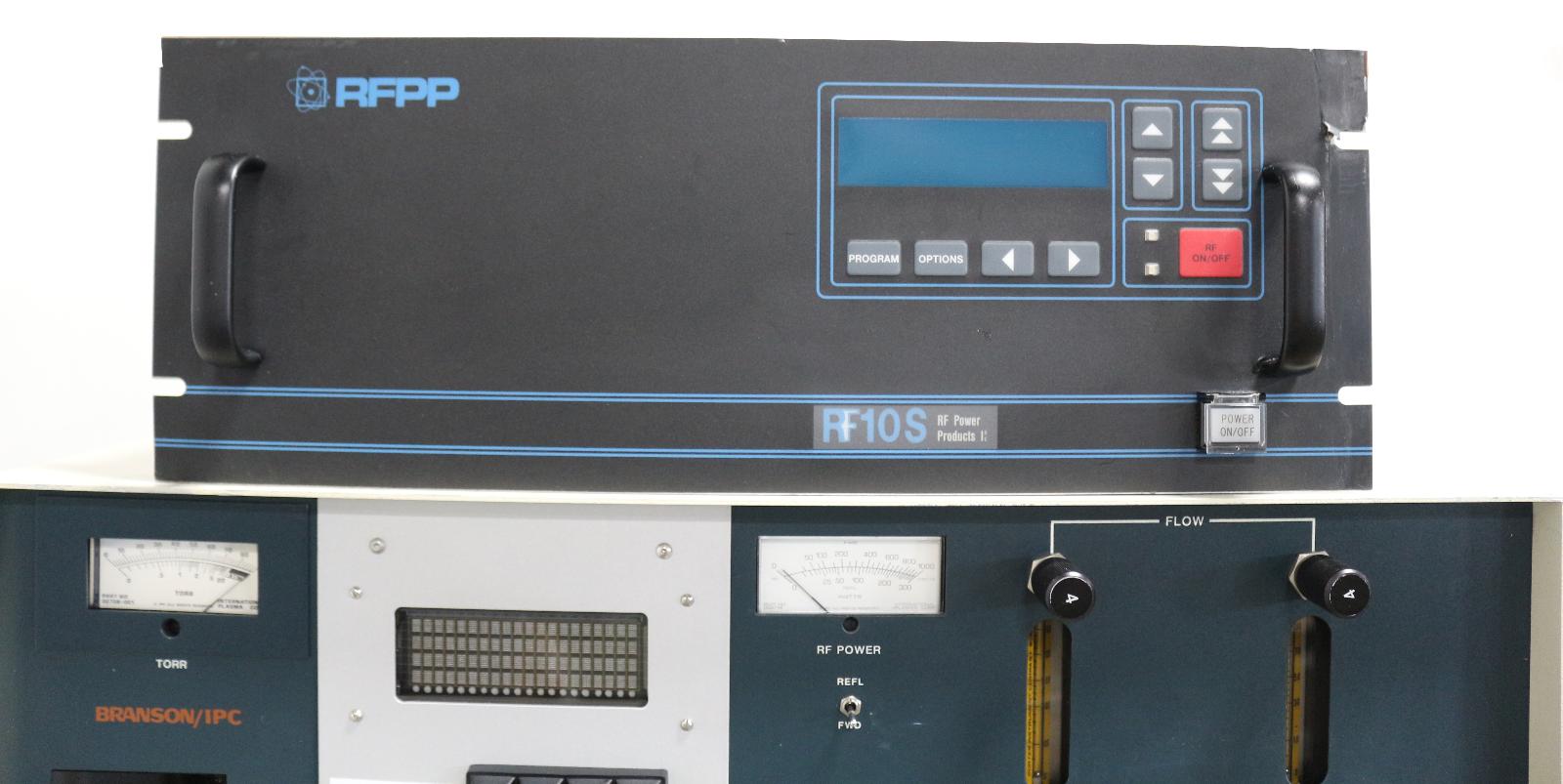

RF Generator: RFPP 10S, 1000W, 13.56 MHz,  P/N: 3150014-000 F SE

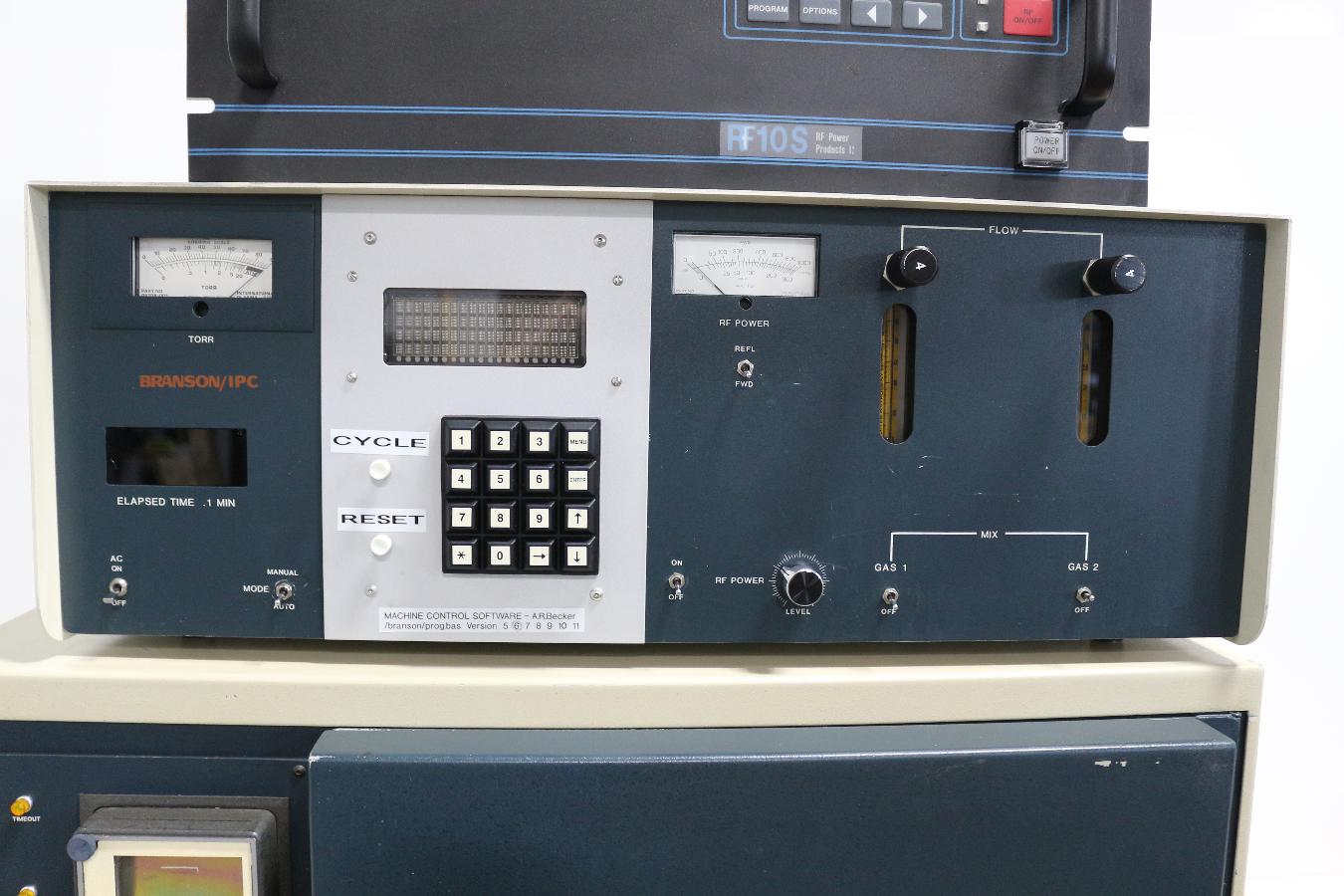

Controller: Model 4000C

  • Controller contains Octagon Systems Model 6040 embedded PC
  • Based on 386SX microprocessor
Exterior Dimensions
  Width 40.000  in  (101.6 cm)
  Depth 50.000  in  (127.0 cm)
  Height 36.000  in  (91.4 cm)
Weight 280  lb  (127 kg)
