in Helium Leak Detectors
Item ID: 199056

Offered 1 Offered at Best Price

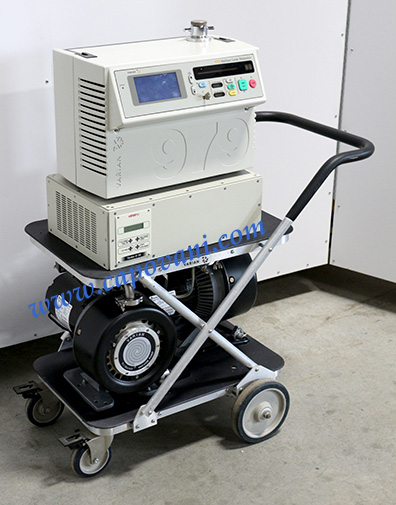

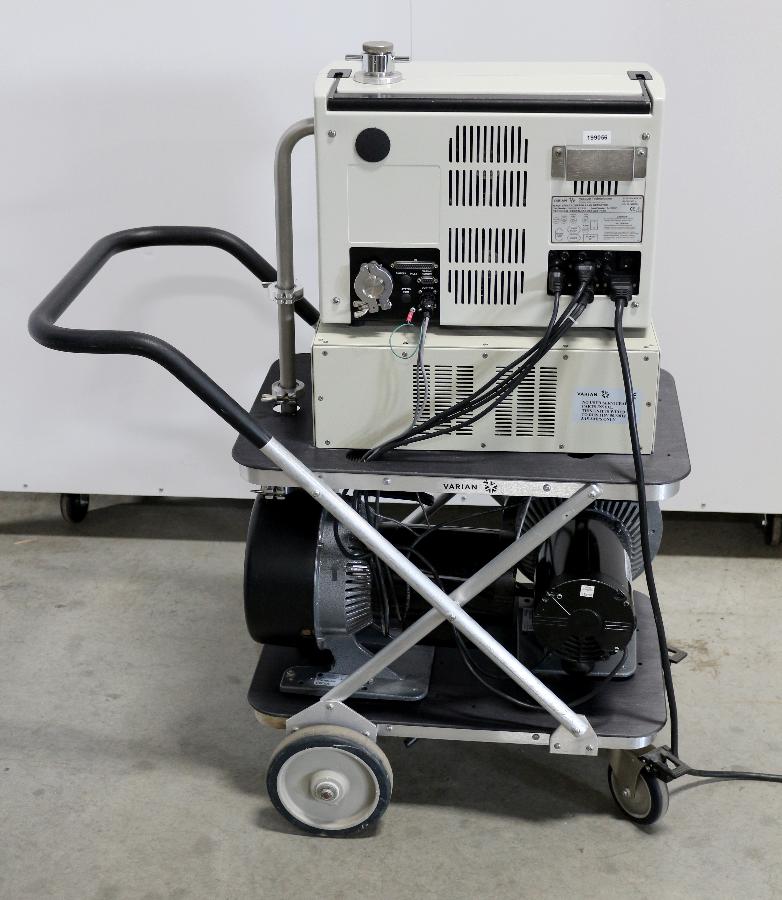

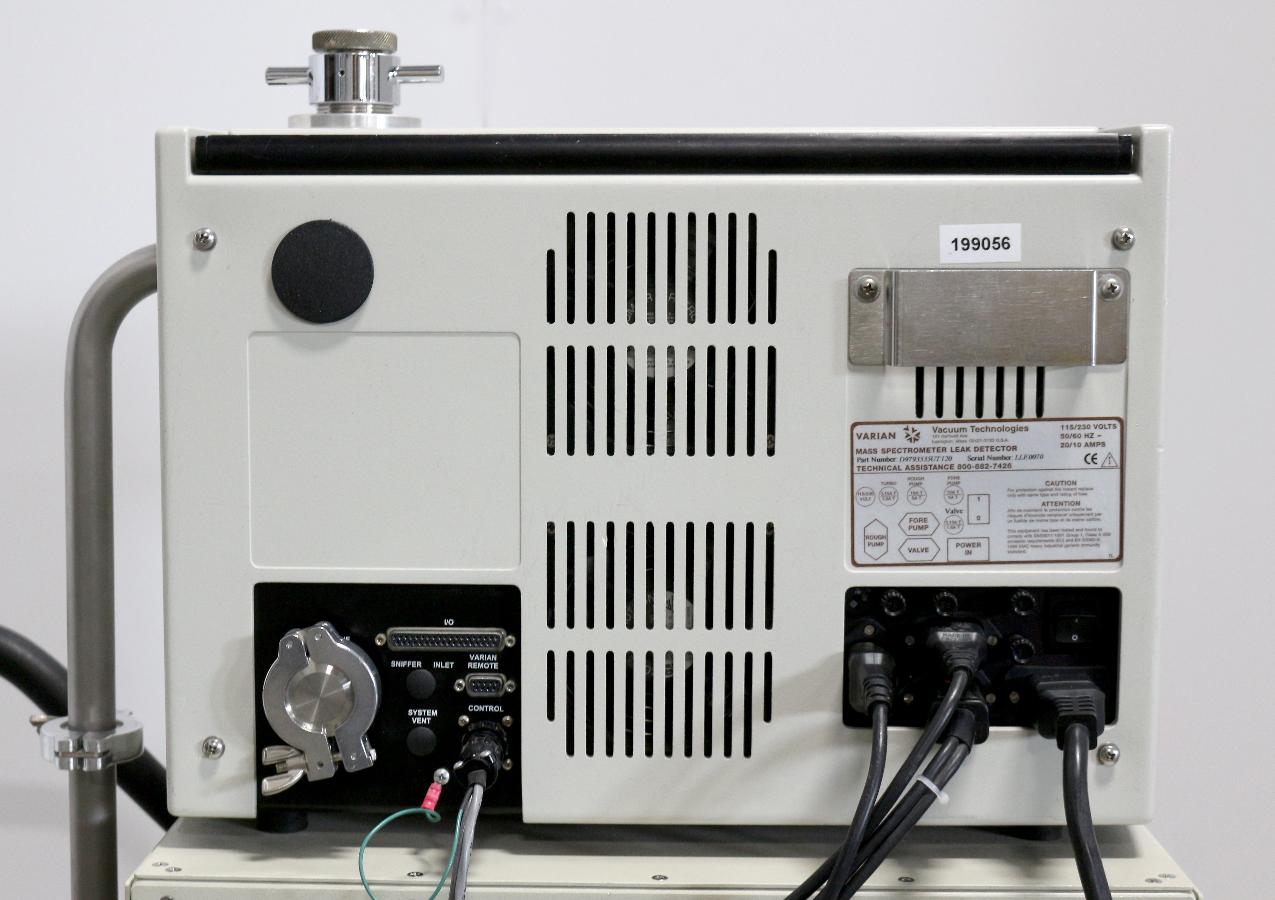

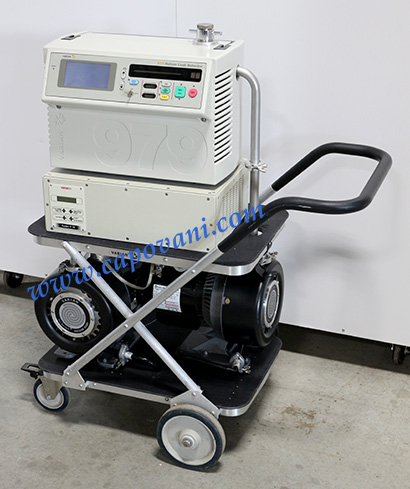

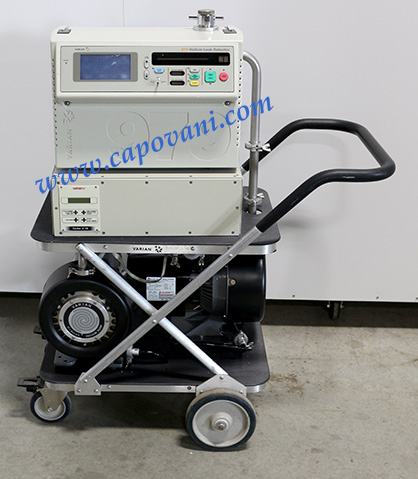

Dry Turbo Pumped Leak Detector

In addition to this Varian 979 , Capovani Brothers Inc stocks a wide range of used and refurbished helium leak detectors. Typical manufacturers include Alcatel, Adixen, Inficon, Pfeiffer, Leybold, Varian. To view our complete stock of used helium leak detectors visit our Helium Leak Detector category.

Learn about our Helium Leak Detectors Refurbishment and Functional Testing Procedures

This used helium leak detector and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Varian
Model 979
High Vacuum Pump Type Turbomolecular Pump
Minimum Detectable Helium Leak Rate  5.0E-10 atm-cc/sec
Test Port Connection 1.125" (28 mm) ID Compression Port
Interface RS 232
Audio Alarm with Variable Pitch Yes
Detectable Masses      4¬†AMU
Internal Calibrated Leak Included
Built-In Roughing Pump Included
Liquid Nitrogen Trap Not Included

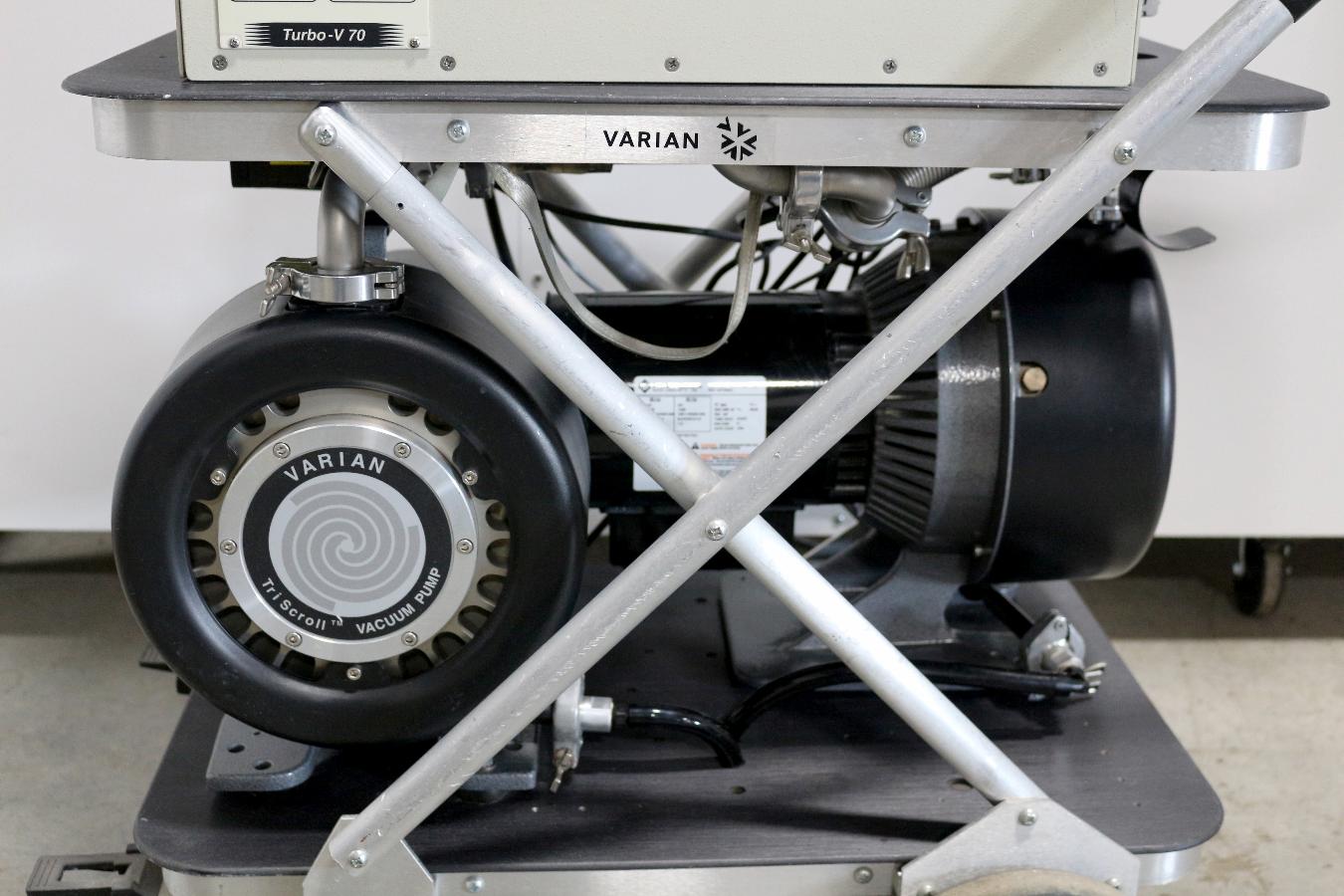

  • (2) Varian PTS-03101UNIV Tri-Scroll dry pump
  • 4 Wheel cart
Other Information

Part No: D9793535UT120
Sensitivity: 5E-10 std cc/sec, standard version
Internal helium response time: 0.5 second
Selectable leak units (std cc/sec, mbar-l/sec, torr-l/sec, Pa-m³/sec)
Maximum test-port pressure in fine-test mode: 5 torr

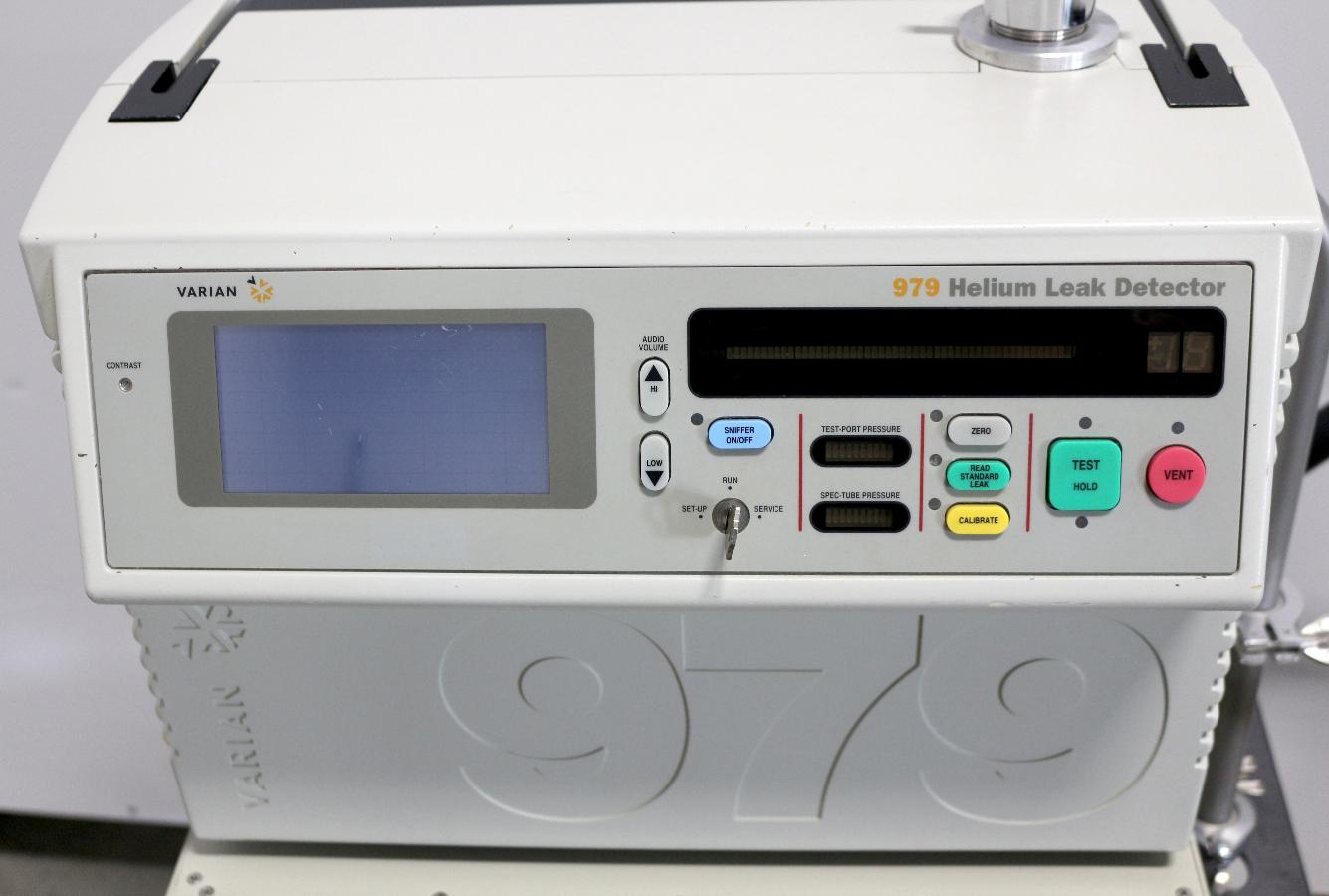

Leak-rate display: 50-segment bar graph (log or linear) plus alphanumeric
Pitch-controlled audio output with programmable threshold

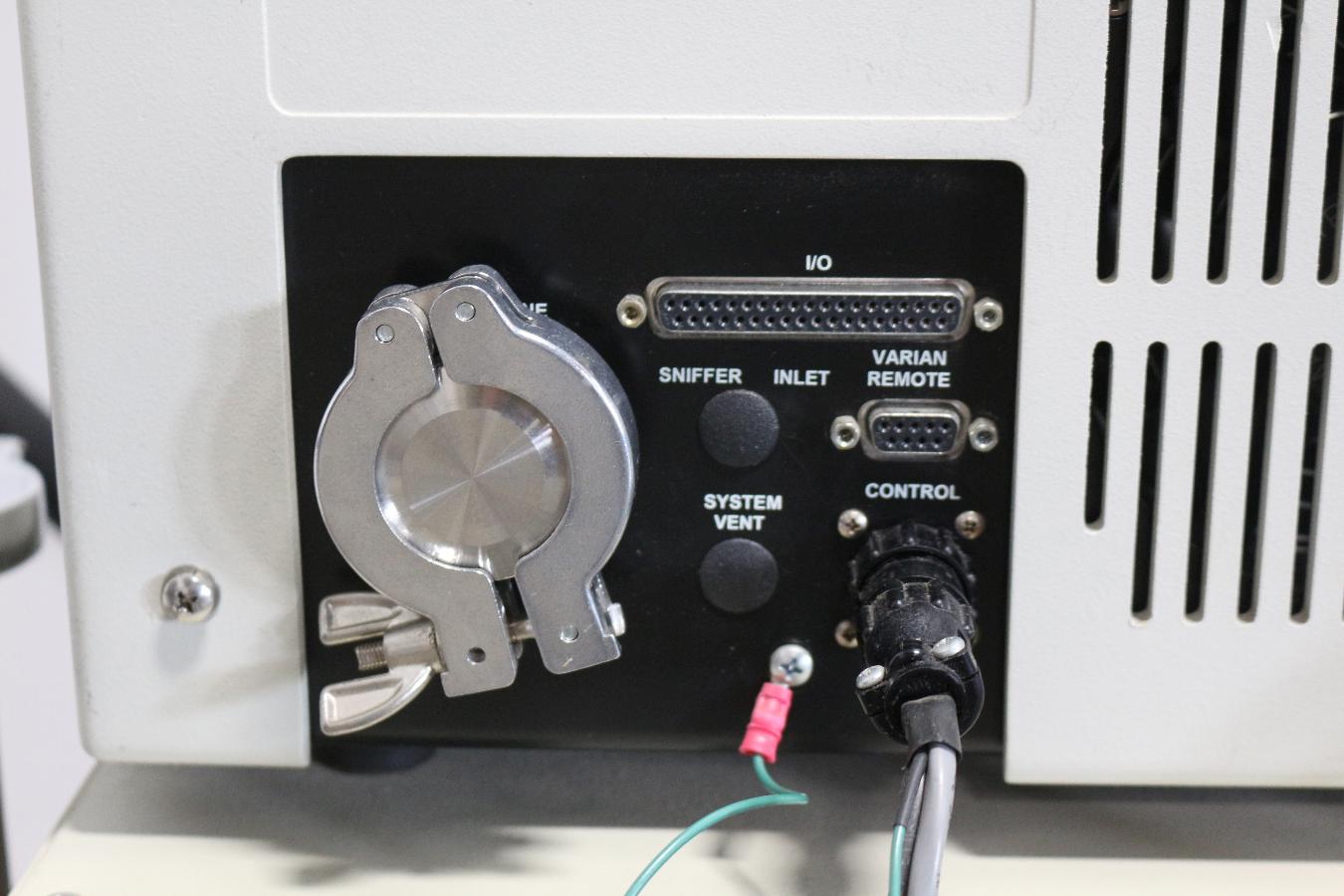

Remote I/O: 37-pin parallel or RS-232 serial

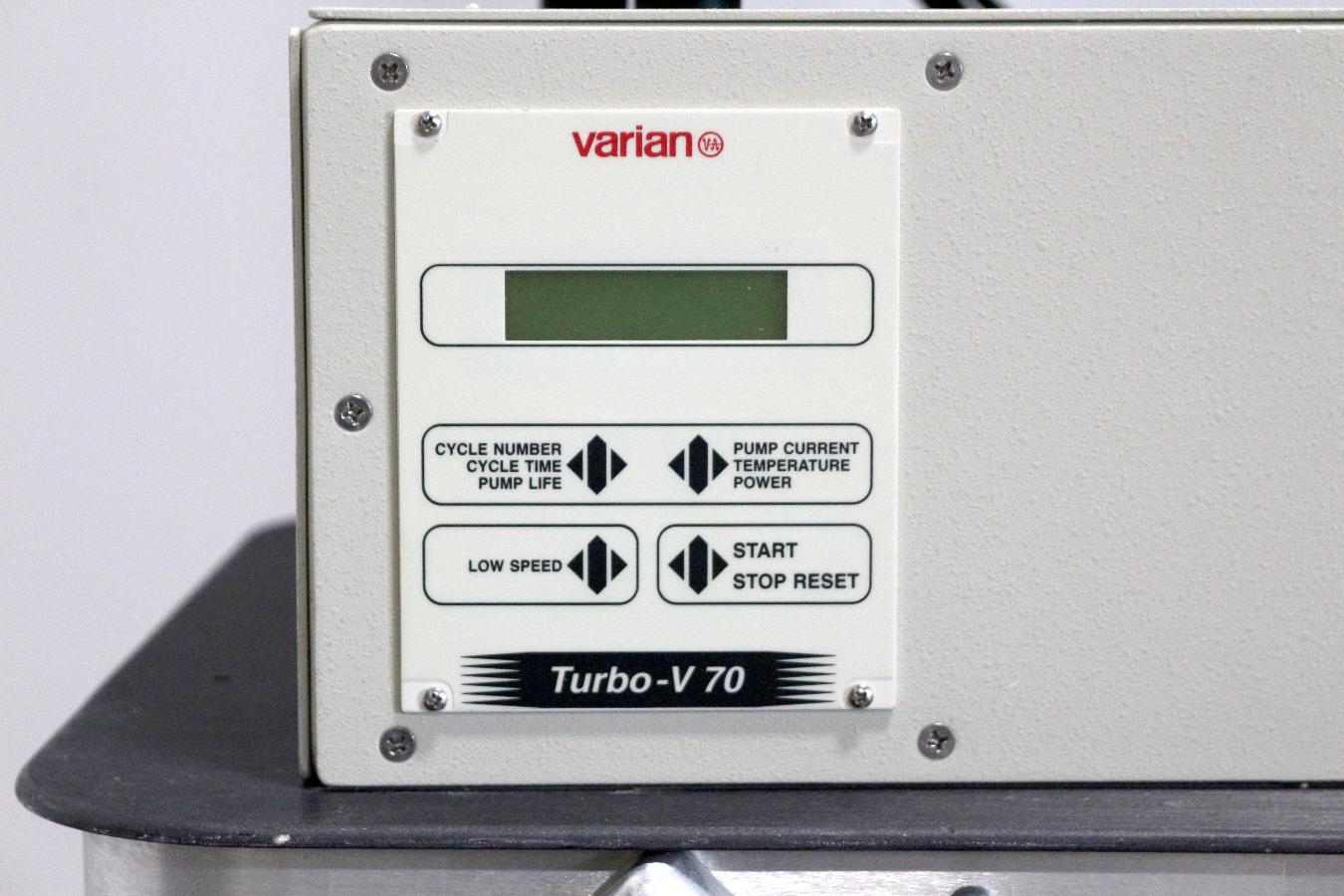

Turbo-V70LP MacroTorr hybrid turbopump
(2)Varian PTS-031001UNIV Tri-Scroll dry pump

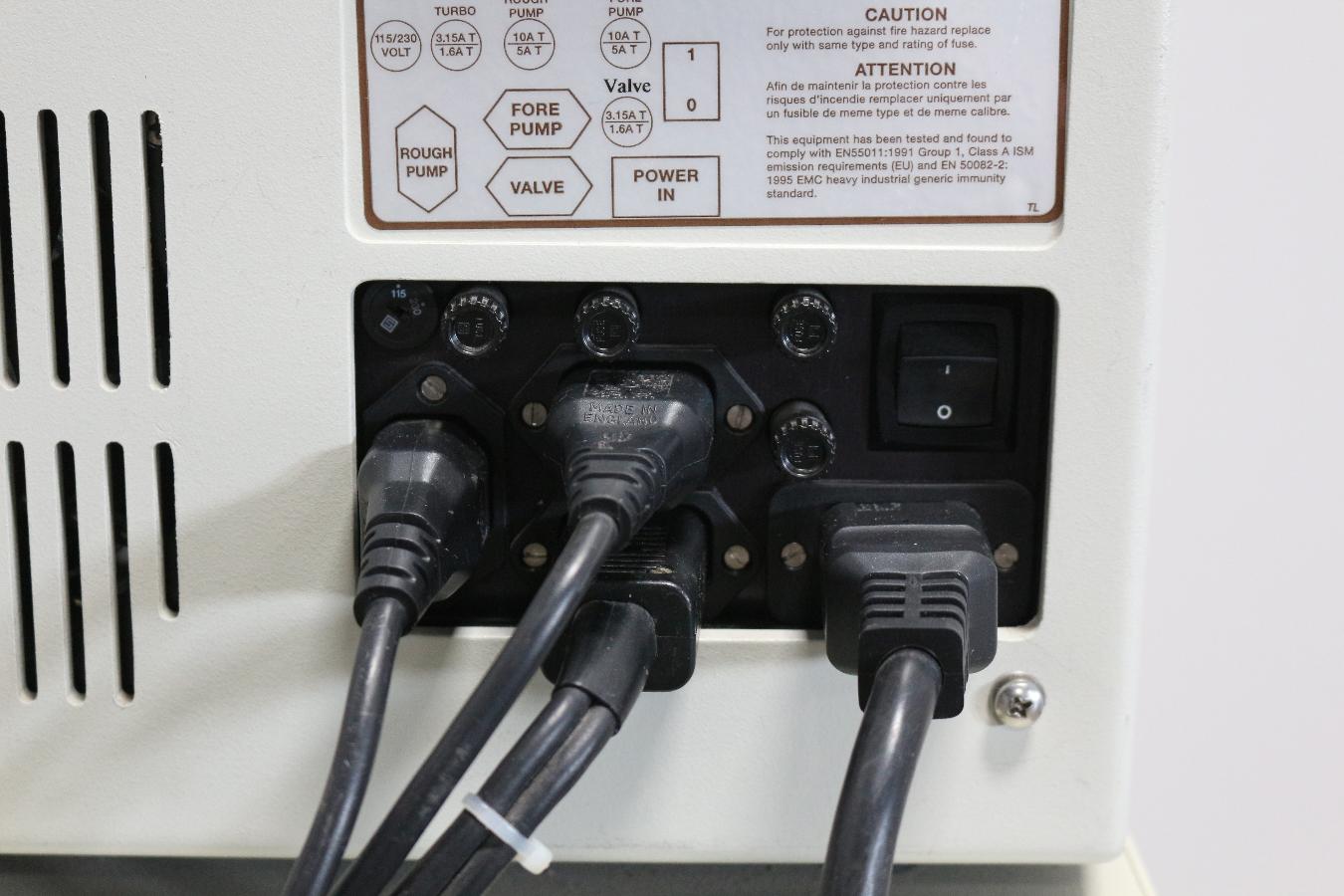

Power Requirements 115/ 230 V     20.0 A     10.0 A(2)     50/60 Hz     1¬†Phase
CE Marked YES
