FULL DESCRIPTION of Item 135516

in Temperature & Humidity Chambers
Item ID: 135516

Offered 1 Offered at Best Price

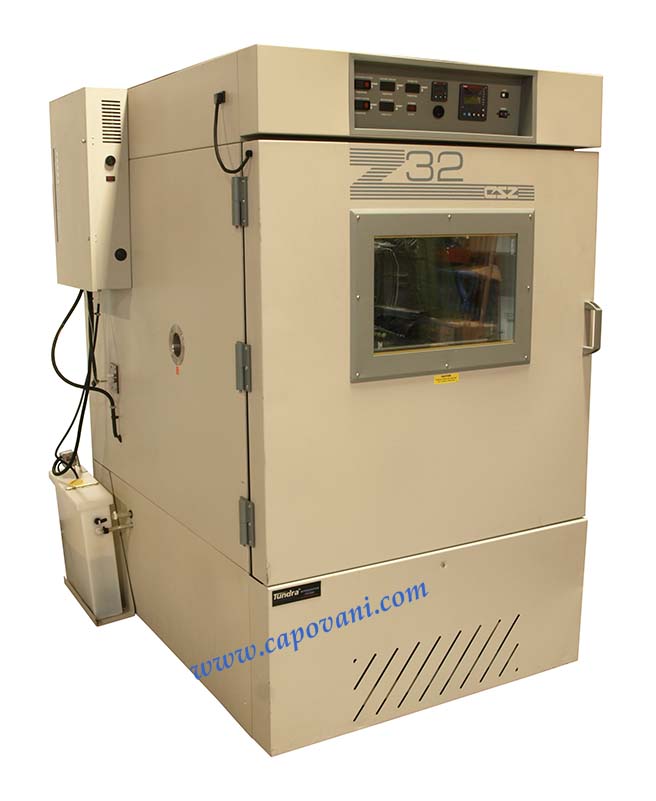

CINCINNATI SUB ZERO TEMPERATURE AND HUMIDITY CHAMBER 190C

32 Cubic Foot Temperature and Humidity Chamber

In addition to this Cincinnati Sub-Zero ZH-32-305-SCT/AC, Capovani Brothers Inc stocks a wide range of used and refurbished temperature and humidity chambers. Typical manufacturers include Blue M, Cincinnati Sub-Zero, Delta Design, Despatch, Espec, Sun Electronics, Tenney, and Thermotron. To view our complete stock of used temperature and humidity chambers visit our Temperature & Humidity Chambers category.

This used temperature and humidity chamber and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

CINCINNATI SUB ZERO TEMPERATURE AND HUMIDITY CHAMBER 190C
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Cincinnati Sub-Zero
Model ZH-32-305-SCT/AC
Minimum Temperature -34  ºC  (-29 ºF, 239.00 ºK)
Maximum Temperature 190  ºC  (374 ºF, 463 ºK)
Humidity Range 95%

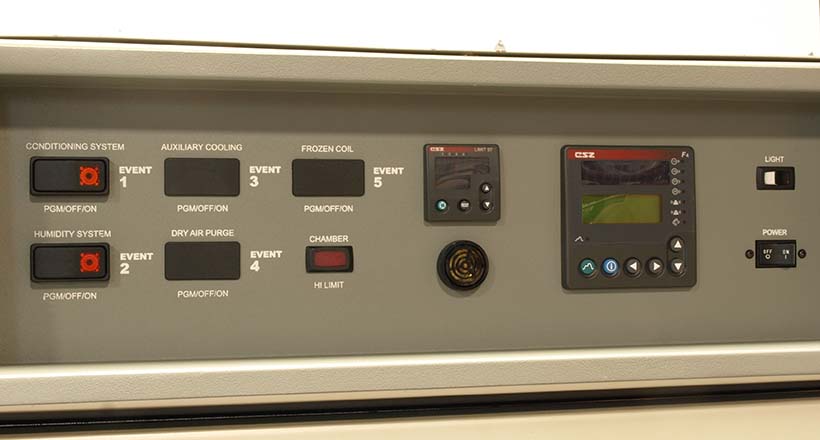

Heat/Cool Controls
  Control Type Programmable
  Overtemperature Protection YES
  Controller Manufacturer/Model Watlow F-4
Capacity/Volume Box 32.00  cu ft  (0.91 cu m)

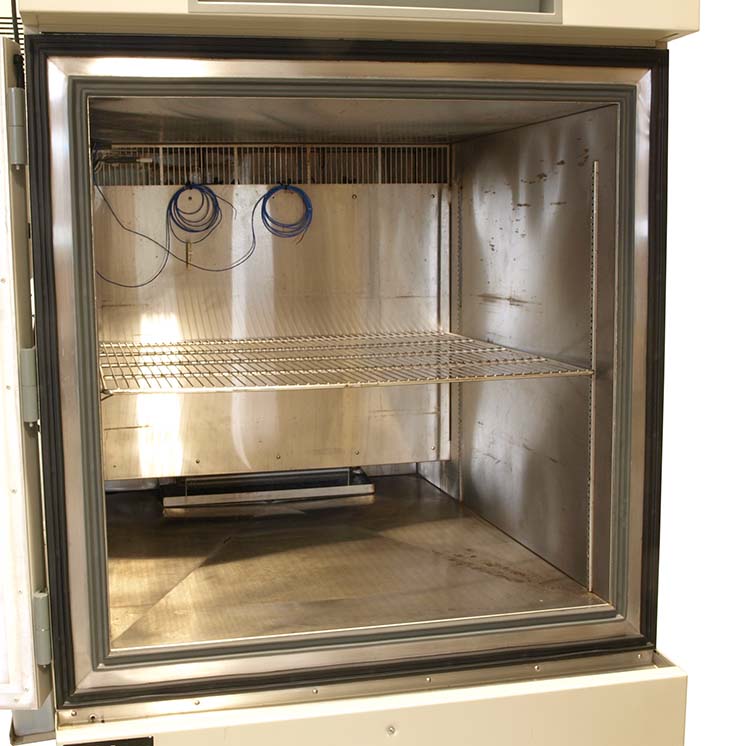

Chamber Characteristics
  Chamber Construction Stainless Steel
  Number of Shelves Provided 2
  Number and Size of Access Ports 1-2.875" left side
  Viewing Window YES
Chamber Size
  Width 38.00  in  (96.52 cm)
  Depth 38.00  in  (96.52 cm)
  Height 38.00  in  (96.52 cm)
External Cooling Forced Air Cooled
Refrigerant Type & Quantity Suva R-410A
Accessories

Viewing window 12.75 H X 19.75 W
Interior light with switch

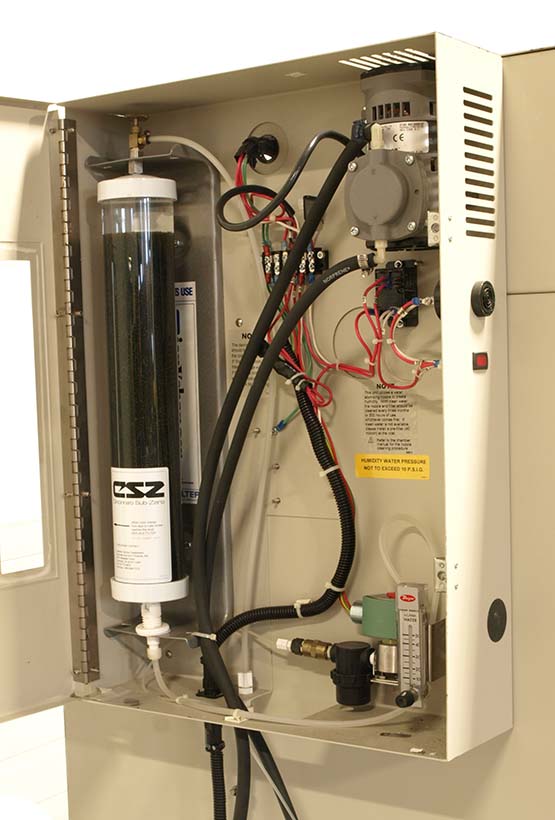

Humidity water demineralizer

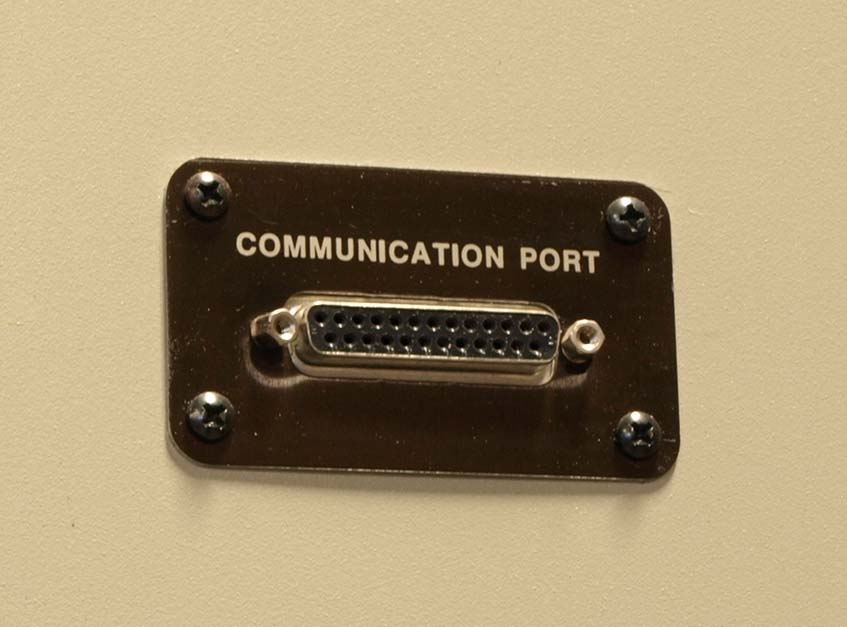

Communications port
Watlow F-97 Hi limit controller

Other Information

Refrigerant R-410A 7-lbs

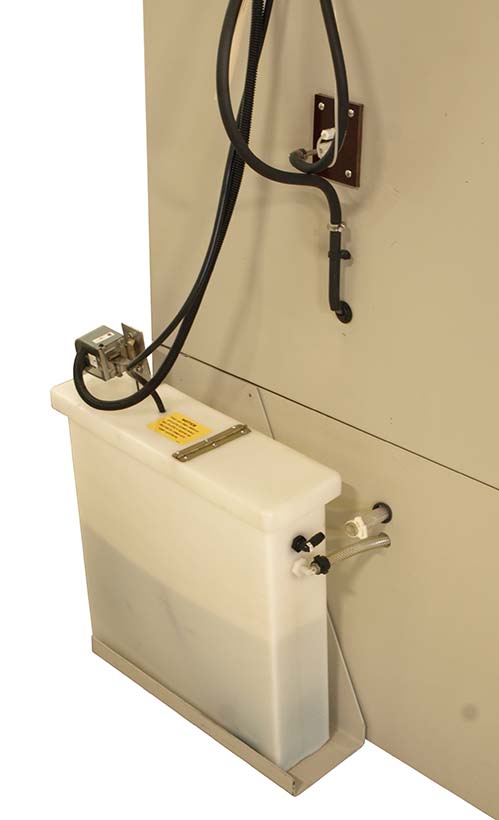

Humidity flow system with reservoir
Recirculating water supply

Power Requirements 208 V     45.0 A     60 Hz     3 Phase
Exterior Dimensions
  Width 54.000  in  (137.2 cm)
  Depth 66.000  in  (167.6 cm)
  Height 78.000  in  (198.1 cm)
Weight 1,412  lb  (640 kg)
