FULL DESCRIPTION of Item 176142

in Other Chambers
Item ID: 176142

Offered2 Offered at Best Price


DESPATCH H.A.S.T CHAMBER 331F 90 PSIG

Highly Accelerated Stress Test Chamber

In addition to this Despatch LPB1-40V, Capovani Brothers Inc stocks a wide range of used and refurbished chambers. Typical manufacturers include Blue M, Cincinnati Sub-Zero, Delta Design, Despatch, Espec, Sun Electronic Systems, Tenney, and Thermotron. To view our complete stock of used chambers visit our Chambers category.

This used chamber and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

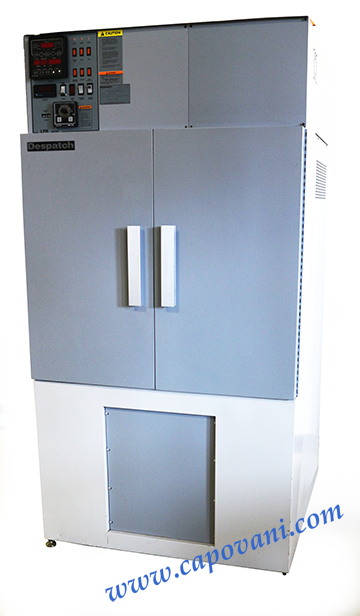

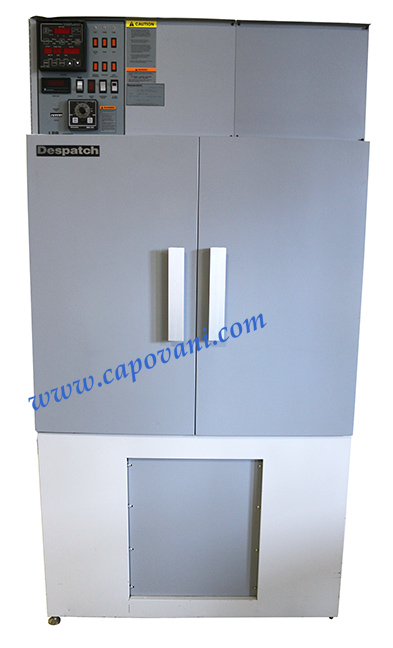

DESPATCH H.A.S.T CHAMBER 331F 90 PSIG
  Click to see additional image(s)... other images
Unit Price Unstated
Number of Units 2
Manufacturer Despatch
Model LPB1-40V
Description HAST Chamber - 331F 90 PSIG
Maximum Temperature 166  ºC  (331 ºF, 439 ºK)

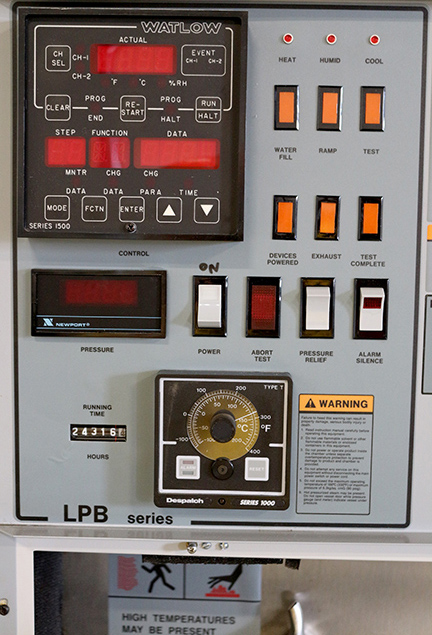

Temperature Control
  Control Stability ± 0.500 ºC
Heat/Cool Controls
  Control Type Programmable
  Overtemperature Protection YES

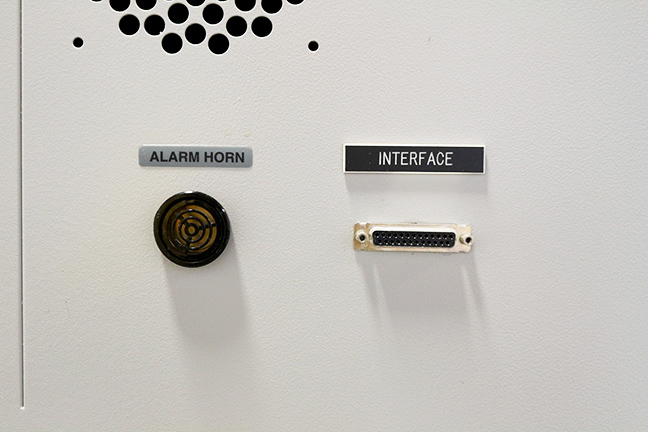

  Interface RS 232
Capacity/Volume Box 4.50  cu ft  (0.13 cu m)
Chamber Characteristics
  Chamber Construction Electropolished 316 Stainless Steel
Chamber Size
  Width 22.50  in  (57.15 cm)
  Depth 24.00  in  (60.96 cm)

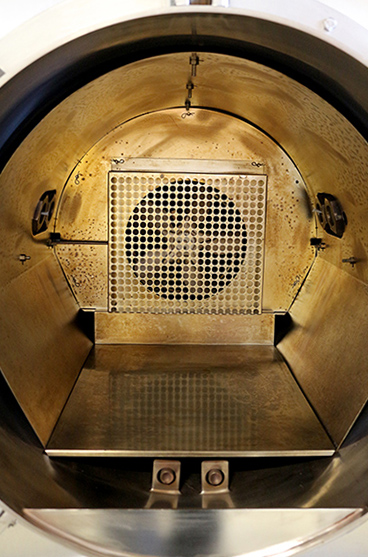

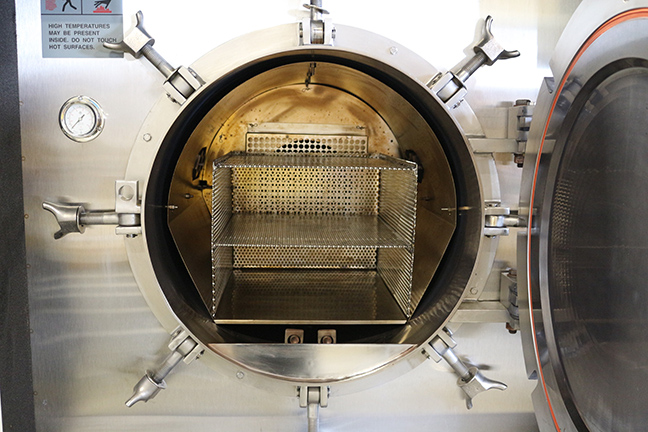

Accessories Unit No. 1 Has removable shelf unit:  16"W x 20"D x 12"H-- with two 6"H x 15.75"W compartments.  See detailed photos

Unit No. 2. Has card cage with (12) 22 pin card edge connectors.   There are a total of 120 teflon coated conductors exiting the chamber.  See detailed images.  Edge connector P/N: MP-7156-22-DY-5GY-1799

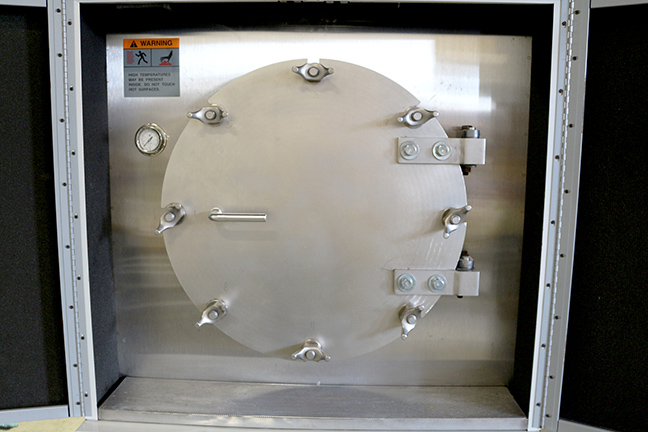

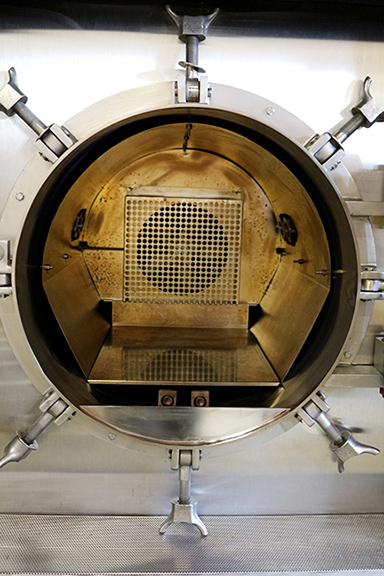

Other Information Vessel Door Opening:  23.5"
Humidity Range:  60-100%, (limited by 16PSIA vapor pressure)
Humitidy Uniformity:  .8% in empty vessel
Average time to temperature
  25°C to 130°C - 40 min. (80% RH)
  25°C to 166°C - 64 min. (100% RH)



Power Requirements 208 V     35.0 A     60 Hz
Exterior Dimensions
  Width 44.000  in  (111.8 cm)
  Depth 46.000  in  (116.8 cm)
  Height 86.000  in  (218.4 cm)
