FULL DESCRIPTION of Item 11074

in Single Chamber PECVD Tools
Item ID: 11074

Offered 1 Offered at Best Price


NEXX SYSTEMS ECR PECVD RIE SYSTEM

Low Temperature CVD Using ECR Technology. Formerly PlasmaQuest Astex

This system is designed for the fluorination of DLC surfaces on various substrates.
The ECR zone is produced by a Nd-Fe-B permanent magnet which produces a high magnetic field launch of the microwave energy.
High magnetic field launch produces a highly stable and efficient ECR plasma.

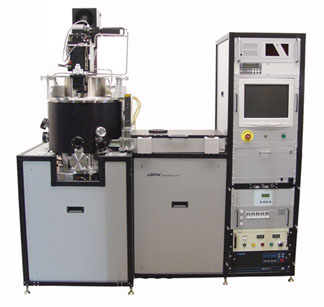

Nexx Systems Cirrus 300

NEXX SYSTEMS ECR PECVD RIE SYSTEM
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Nexx Systems
Model Cirrus 300
Description CVD Deposition with ECR source
Wafer Size Range
  Minimum 50 mm
  Maximum 300 mm
Controller Type PC Controller Type
Loadlock
  Loadlock Yes/No YES
High Vacuum Pump Balzers TMH 1001corrosive service Turbo
Automatch Text ASTeX AX3060
Chillers
  Number of Chillers 1
  Chiller #1Manufacturer/Model Neslab - HX 75
Other Information

PQ2000 Series permanent magnet low profile ECR source.
ASTeX AX2110 microwave power supply with remote magnetron head.

  • Output 150 - 1000 Watt, PC controlled
    20 inch outer diameter reactor chamber with Viton seals.
    Six (6) MKS Instruments 2179A Kalrez sealed mass flow controllers, expandable to seven.
    Wafer Chuck
  • Handling up to 300mm in diameter
  • RF Biased, Via RFPP 1kW, 13.56 Mhz, with automatch
  • Recirculating fluid cooling
  • Helium backside cooling
  • Temperature range -25C to 130C
  • Mechanical clamp substrate holder
  • NB: Higher temperatures can be achieved without helium backside cooling
Operating Air Pressure 80.00  PSI  (551,624.00 N/sq m)
Year of Manufacture 2000
Condition Excellent
Exterior Dimensions
  Width 81.000  in  (205.7 cm)
  Depth 41.000  in  (104.1 cm)
  Height 85.000  in  (215.9 cm)
