in Multiple Gauge Controllers
Item ID: 164227

Offered 2 Offered at Best Price


Refurbished Multi Gauge Controller

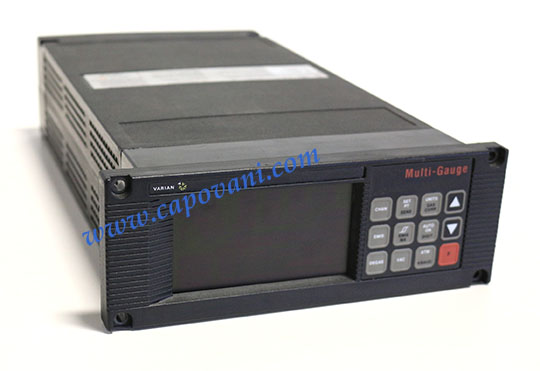

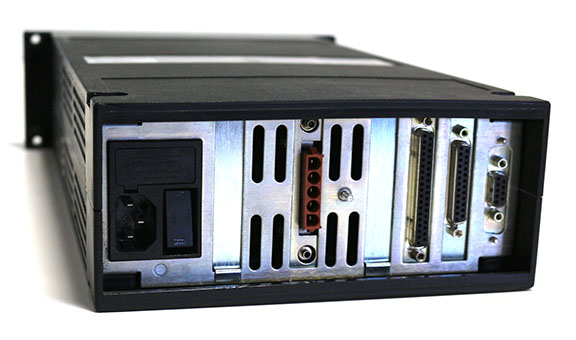

Representative photo, case may be black, beige or grey, and boards ordered will be installed

In addition to this Varian L8350-301 or L8350-328, Capovani Brothers Inc stocks a variety of used multiple gauge controllers. Typical manufacturers include Edwards Vacuum, Granville Phillips, HPS, Kurt Lesker, Leybold, MKS Instruments Inc., and Agilent Varian.

To view our complete stock visit our Multiple Gauge Controllers category.

Learn about our Vacuum Gauge Controllers Refurbishment and Functional Testing Procedures

This used vacuum gauge controller and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 2
Manufacturer Varian
Model L8350-301 or L8350-328
Description Multi Gauge
Gauge Types Controlled Choose the configuration when ordering
Cables Included No

Inquire about gauge cables and gauges


Other Information

Controller will be configured for your specific application, see below.

  • Base Unit, no boards, with LED backlight                      $710

Controller must be sold with at least one gauge board, add to the price of the base unit.

Optional gauge boards:
        UHV Bayard-Alpert Ion Gauge Board L8321301                  $550
        STD Bayard-Alpert Ion Gauge Board L6427301                   $530
        Inverted Magnetron (for IMG-100) gauge board L9066301  $460
        Cold Cathode gauge board  L6433-301                               $440
        Capacitance Manometer gauge board L6491301                $500
        ConvecTorr L9887301 gauge board                                    $240
        Thermocouple gauge board L6430301                                $300

Additional options available:
        Set Point female D-connector L8327301                            $220
        Set Point male D-connector L8727302                               $220
        Remote I/O interface board L8324-301                              $250
        RS232 interface board L6439301                                       $230

Software A 2.2 (Varian ASCII protocol)

Other versions of A*.* and P *.* software available, request when ordering,
this is important if your controller communicates through RS232 interface with external equipment.


Inquire about the boards not listed

Unit is set for 115VAC. Request voltage change to 230VAC if required when ordering

Extended Description  Details at -08-091-X MultiGauge controller2007.pdf
Condition Very Good
Refurbished YES
Power Requirements 120/240 V     4.0 A     50/60 Hz     1¬†Phase
CE Marked YES
Exterior Dimensions
  Width 9.500  in  (24.1 cm)
  Depth 15.120  in  (38.4 cm)
  Height 3.500  in  (8.9 cm)
click to view document at right in new windowConvectorr gauge
click to view document at right in new windowGauge Cable Connector Kits Field Installation
click to view document at right in new windowIon Gauge cable diagram
