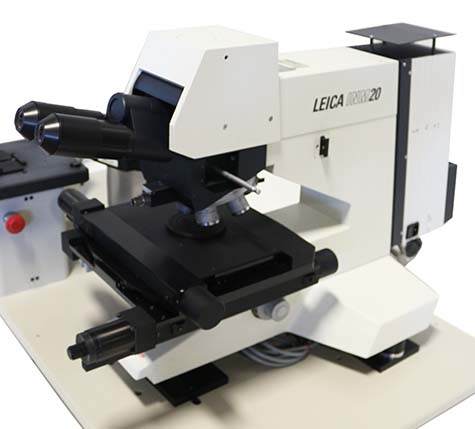

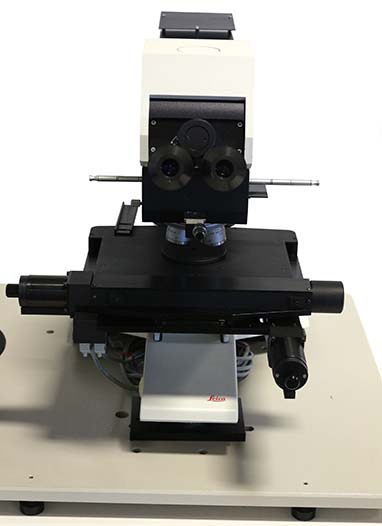

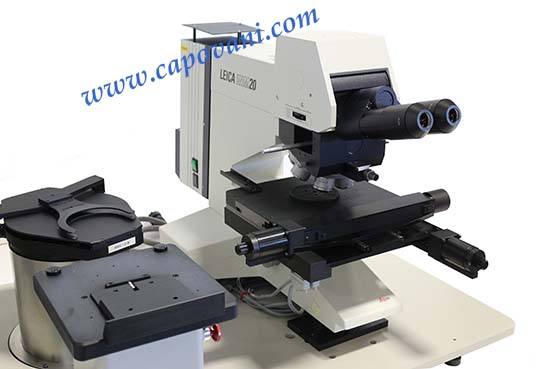

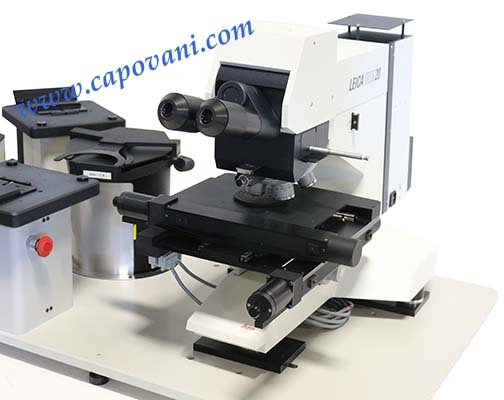

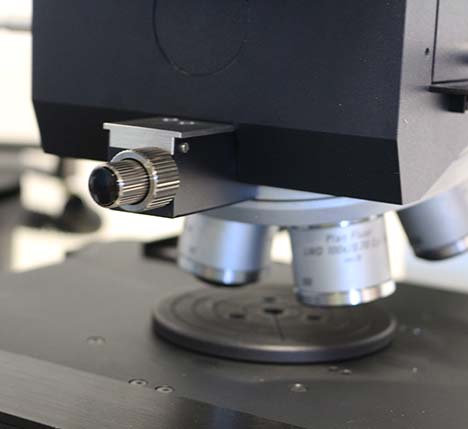

LEICA AUTOMATED WAFER INSPECTION MICROSCOPE

Wafer Inspection Microscopes

Automated Wafer Inspection Microscope
Brightfield/Darkfield, DIC, With LEP motorized wafer transport system

1 unit @ Best Price

Make: Leica

Model: INM20

Item ID: 186519

Manufacturer	Leica
Model	INM20
Microscope Type	Upright
Microscope Configuration	Brightfield, Darkfield & DIC
Illumination Type	Reflected Light
Binocular Angle	Variable
Eyepieces
Model	WPK
Magnification	10 X
Field Number	20 mm
Focusing	YES
Wafer Size	200.00 mm (7.87 in)
Magnification Changer	1.0, 2.5
Motorized Nosepiece	YES

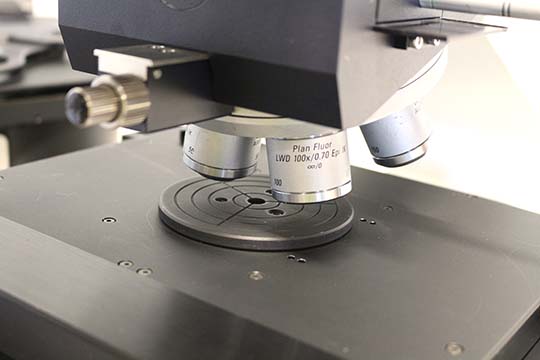

Multiple Objectives Models	PLAN FLUOR LWD 5X/0.10 EPI PLAN FLUOR LWD 10X/0.20 EPI IK PLAN FLUOR XLWD 20X/0.40 EPI IK PLAN FLUOR LWD 50X/0.60 EPI IK PLAN FLUOR LWD 100X/0.70 EPI IK PLAN APO 150X/0.95 EPI IK
Infinity Corrected Objectives	YES
Illumination Power	*Watts:* 100
Power Supply Included	YES

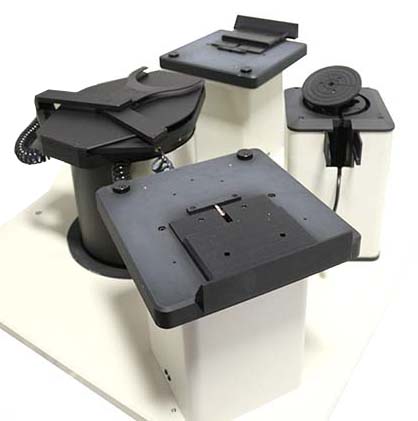

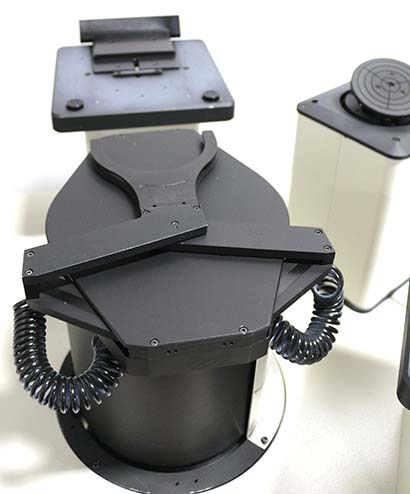

Wafer Stage/Loader
Manufacturer	Leica
Wafer Size	200.00 mm (7.87 in)
Stage Area	*Length:* 254 mm (10.000 in) *Width:* 242.0 mm (9.528 in)

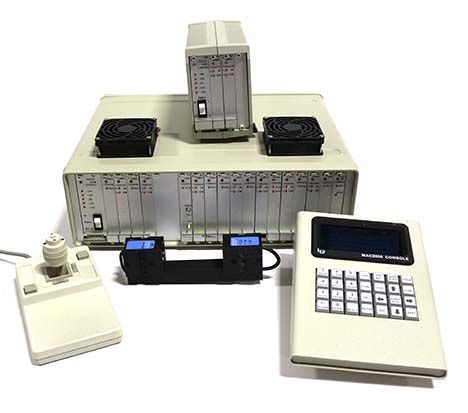

Accessories	Leica brightfield/darkfield microscope/DIC M/N: 302303 LEP motorized X-Y stage controller M/N: 73000100 LEP wobbler control M/N: 73000102 LEP MAC2000 interface console M/N: 73000352 LEP Joystick Keyence LX-132T Laser (Notch/ Edge Finder)
Other Information	Adustable aperture and field diaphragm Power requirements (Scope): 100-240V, 47-63 Hz, 100 W Power requirements (stage controller): 100-240 V, 50/60 Hz, 300 W Lamp house will also accept high pressure lamp.
