AEROTECH LINEAR STAGE, 8" TRAVEL
Linear Stages
Linear Stage
Aerotech ATS100-200
2 unit s @ $1,500.00
Make: Aerotech
Model: ATS100-200
Item ID: 107852
| Manufacturer | Aerotech |
| Model | ATS100-200 |
| Configuration | Single Axis |
| Total Travel, XYZ | X: 8.00 in (203 mm) |
| Mechanical Drive System | Precision Ball screw |
| Linear Accuracy | ±6.0µm(±240(µin) |
| Stage Length | 14.60 in (371 mm) |
| Stage Width | 4.00 in (102 mm) |
| Table Length | 4.00 in (101.60 mm) |
| Table Width | 4.00 in (101.60 mm) |
| Tabletop Height | 1.53 in (38.86 mm) |
| Maximum Payload | 55.00 lb (24.95 kg) |
| Maximum Travel Speed | 3.937 in/s (100 mm/s) |
| Motor | Drive: Servo Motor |
| Controller Included | No |

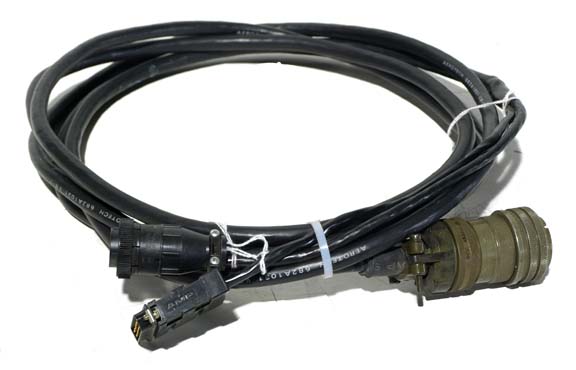

| Cables Included | Yes |
| Other Information | DC Servo Motor: Model- 1035DC/MSOF |
| Exterior Dimensions | |
| Width | 5.750 in (14.6 cm) |
| Depth | 23.000 in (58.4 cm) |
| Height | 2.250 in (5.7 cm) |
