LINDBERG TUBE FURNACE 1200 C

Tube Furnaces

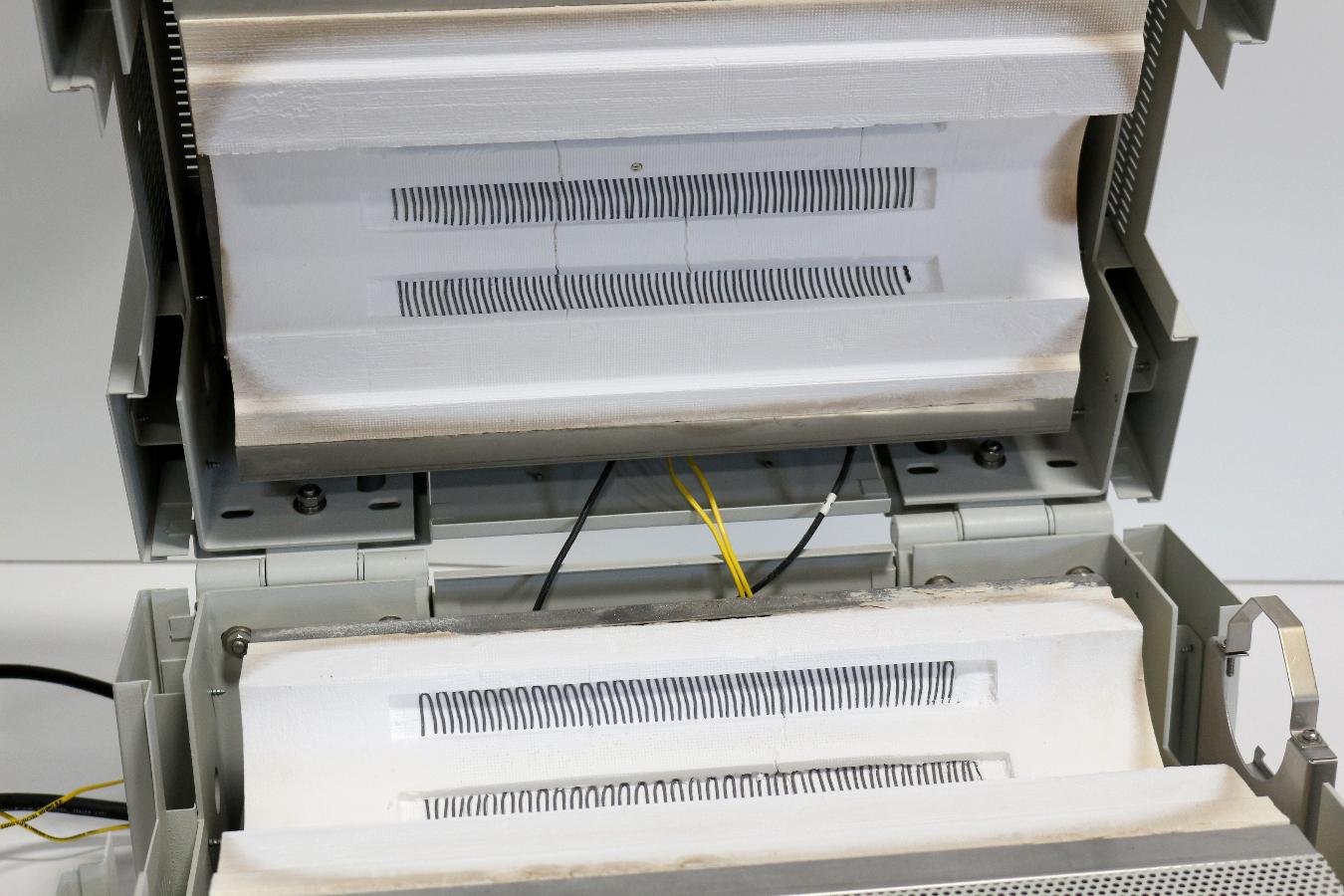

Split Hinge Tube Furnace with Retort
Watlow controller with profiling ramp

1 unit @ Best Price

Make: Lindberg/Blue M

Model: HTF55322C

Item ID: 196492

Manufacturer Lindberg/Blue M
Model HTF55322C
Maximum Temperature 1,200 ºC (2,192 ºF, 1,473 ºK)
Minimum Temperature 21 ºC (70 ºF, 294.00 ºK)
Temperature Control
Control Stability ± 0.100 ºC
Heat/Cool Controls
Control Type Programmable
Interface RS 485

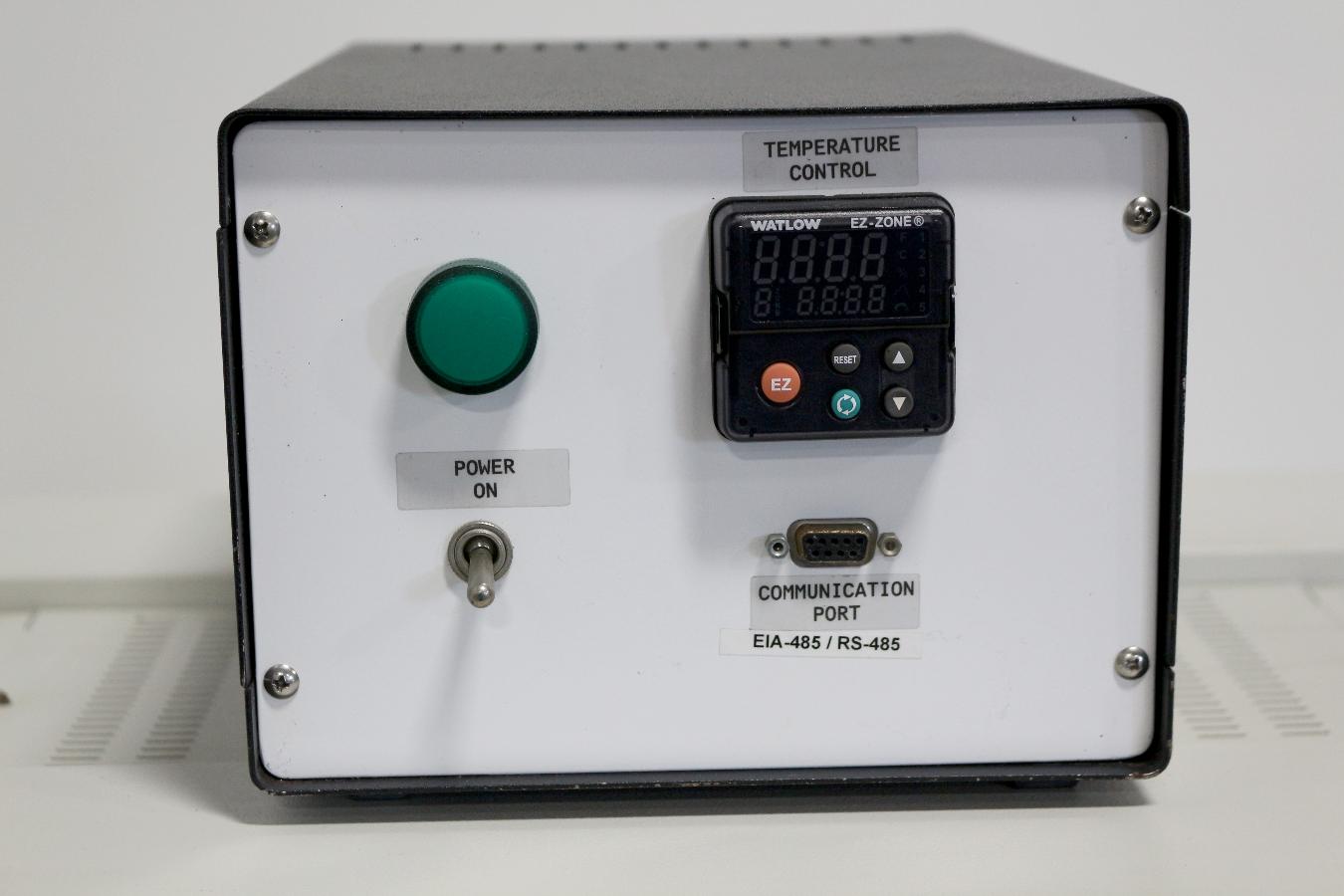

Controller Manufacturer/Model Watlow EZ-Zone PM6R1CA-ALAJAAA
Number of Control Zones 1
Tube Dimensions Diameter: 4.50 in (11.43 cm) Length: 18.00 in (45.72 cm)
Thermocouple Type Type K
Retort Included YES
Accessories

Watlow PM6 controller with High Limit protection. and Profiling ramp and soak option.
Up to 40 steps and four profiles, no real time clock or battery back-up option.

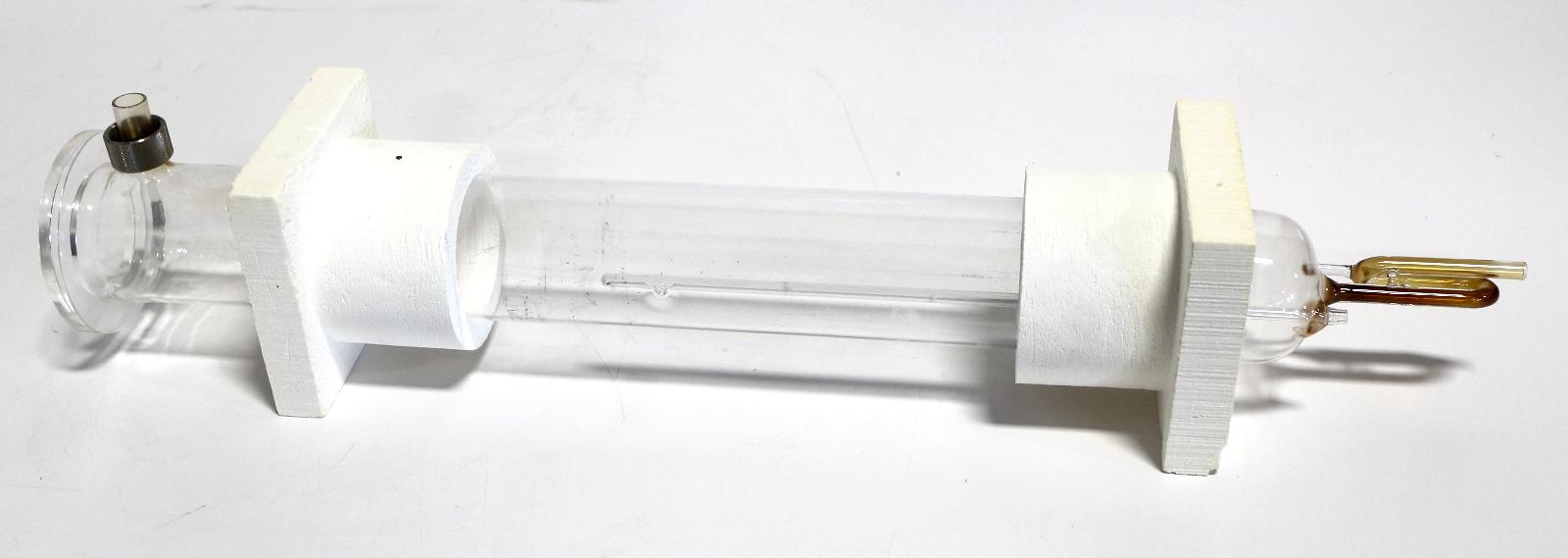

Retort:
Material Unknown, either pyrex or quartz
Overall Length 23" end to end.

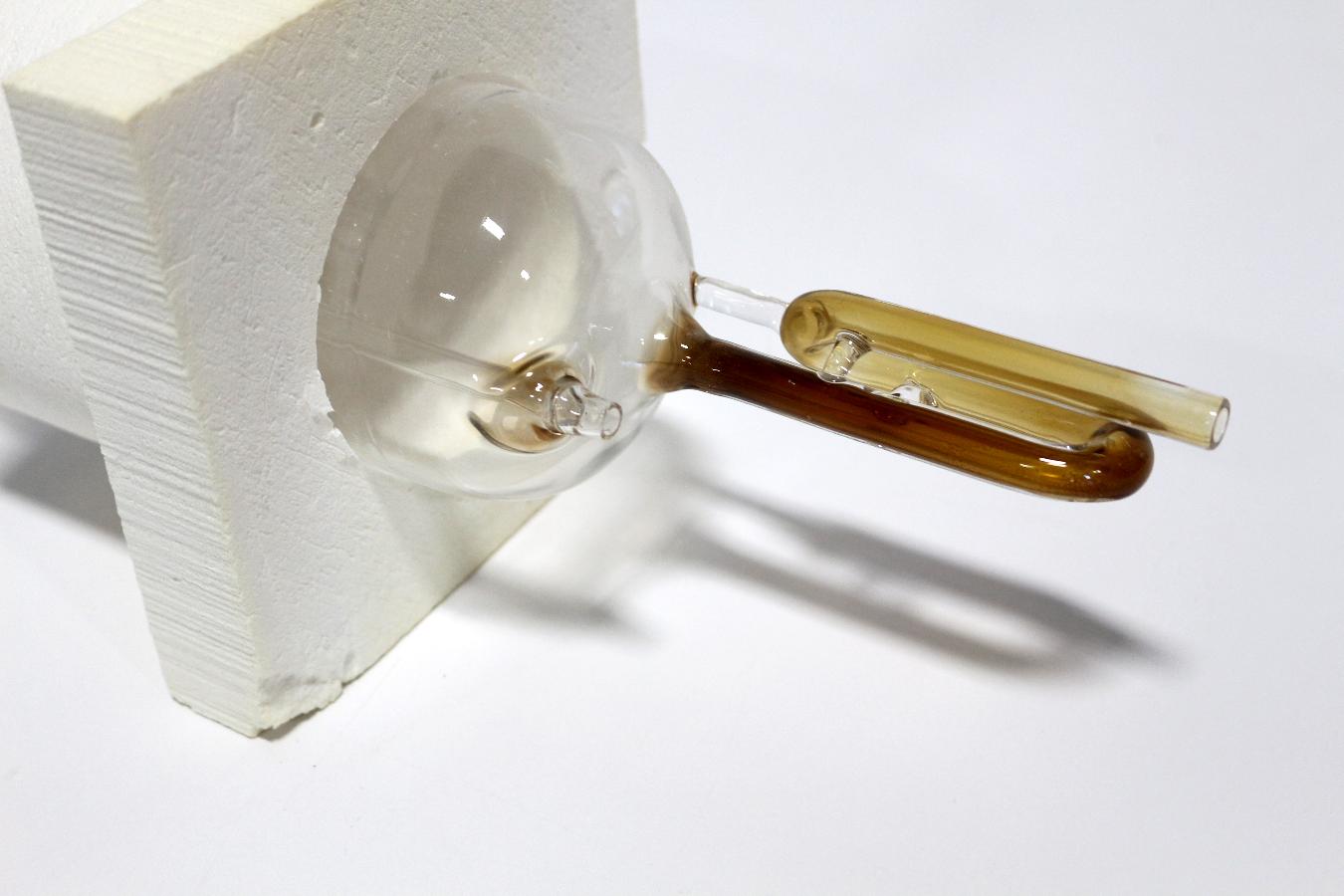

3" ID. sealed on one end, other end open.

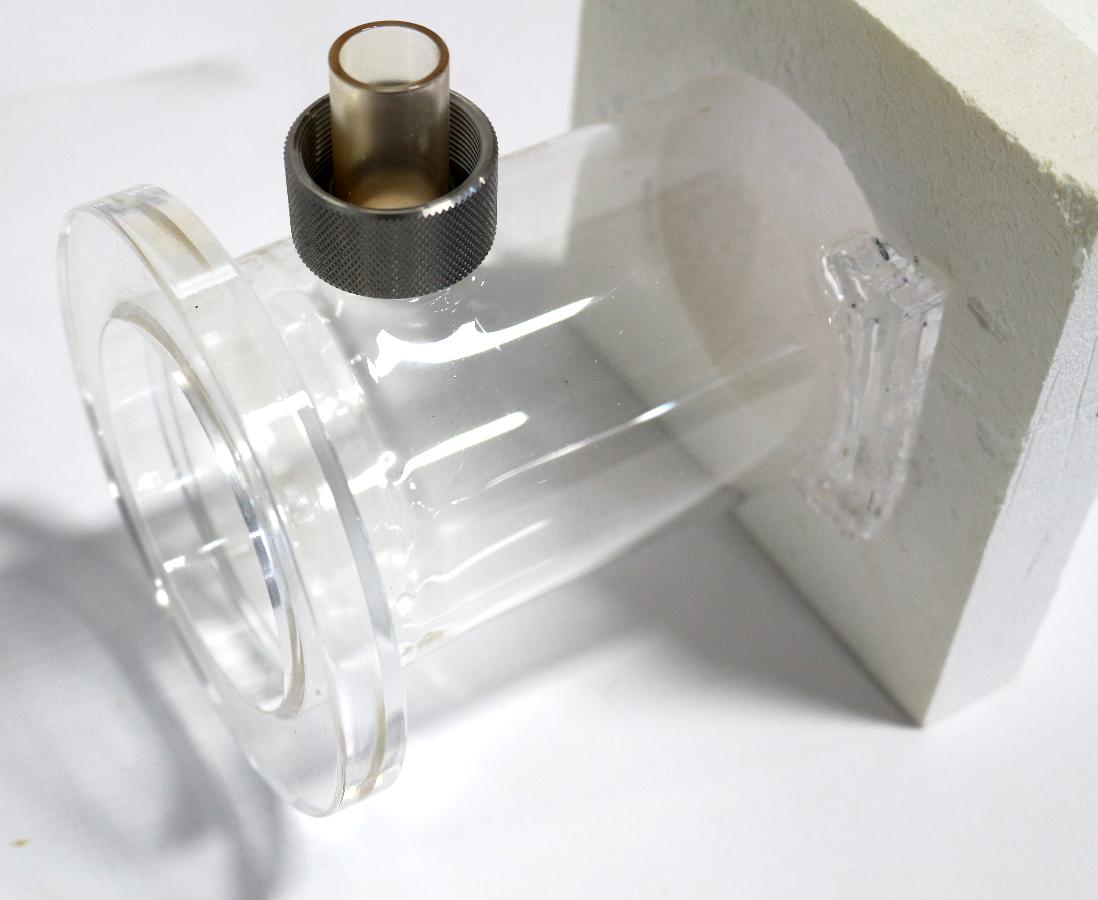

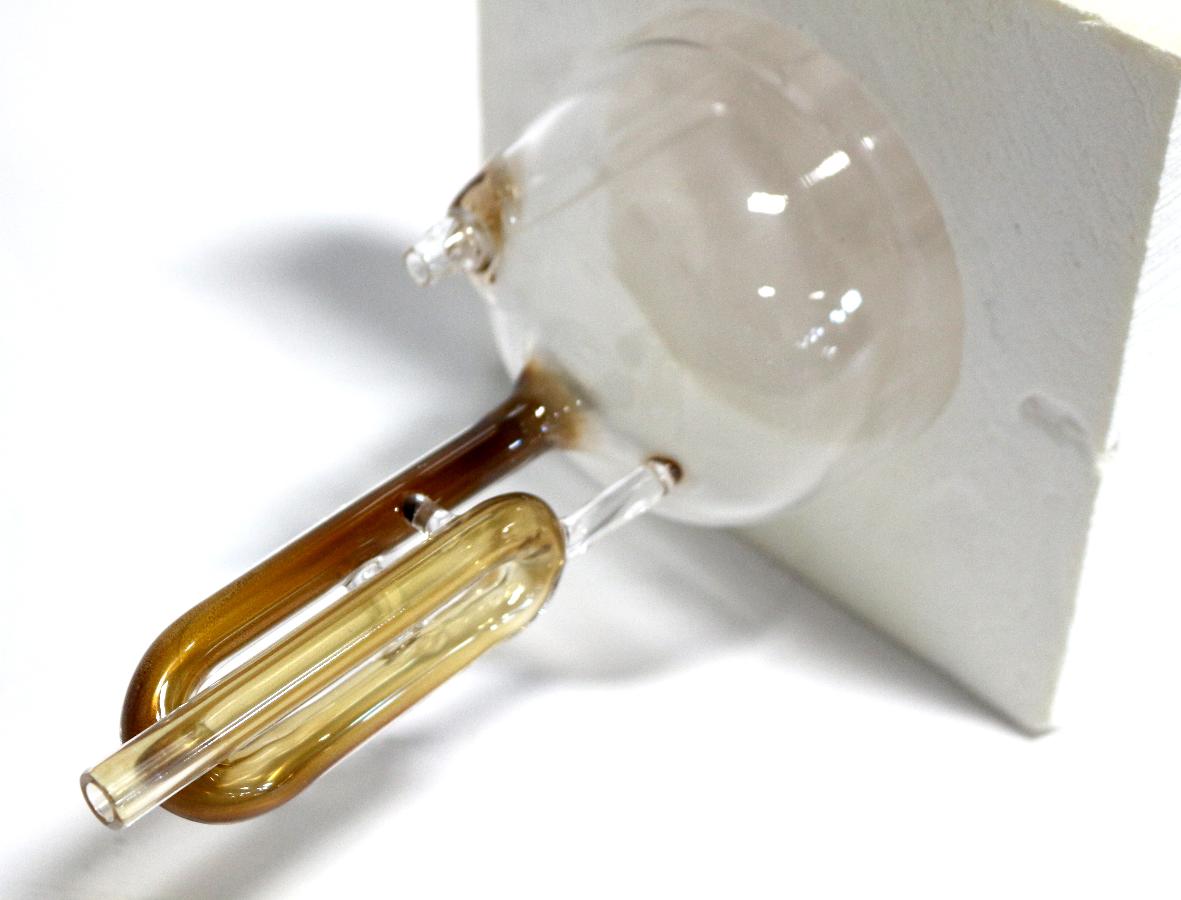

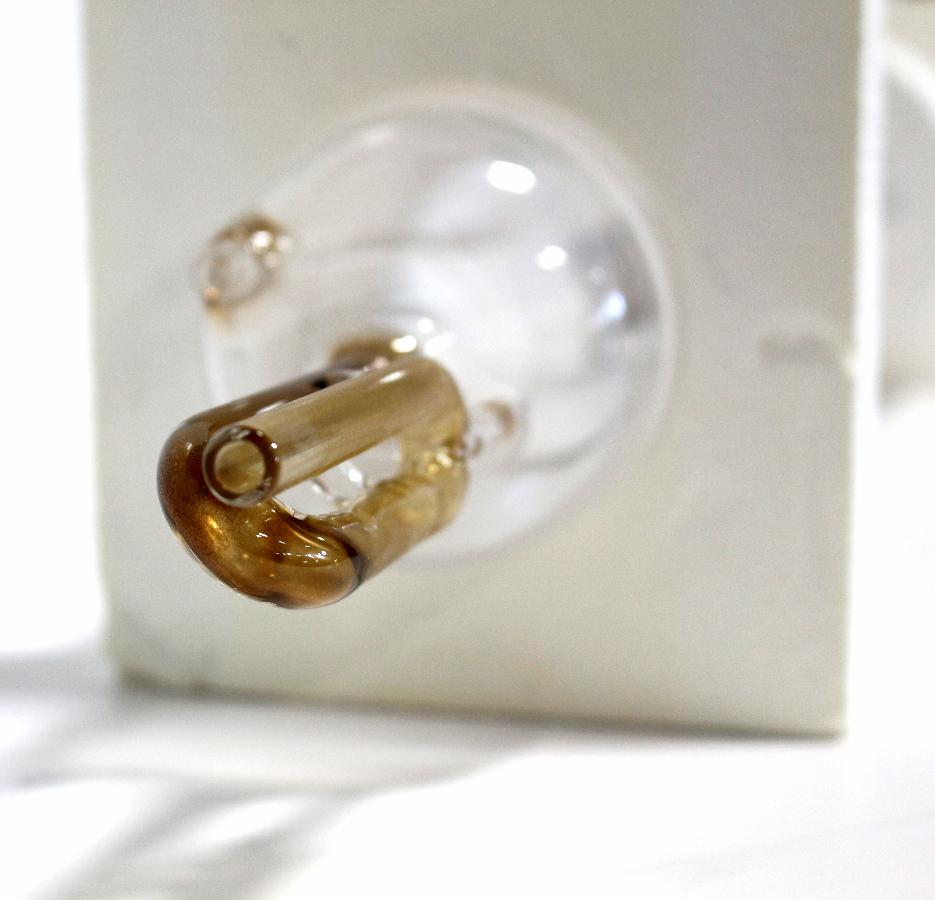

Gas feed tube inside retort, see other images for details.

Other Information

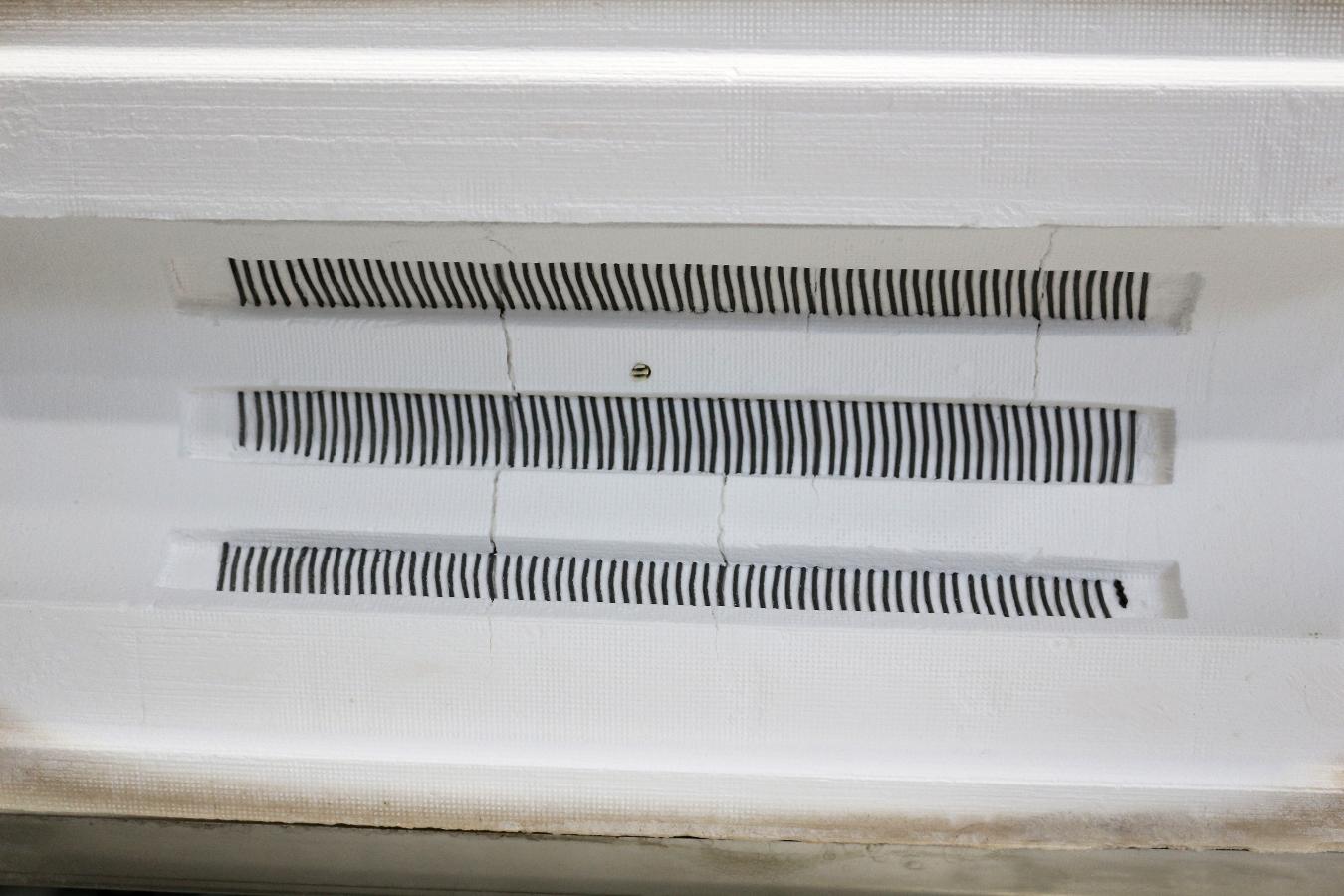

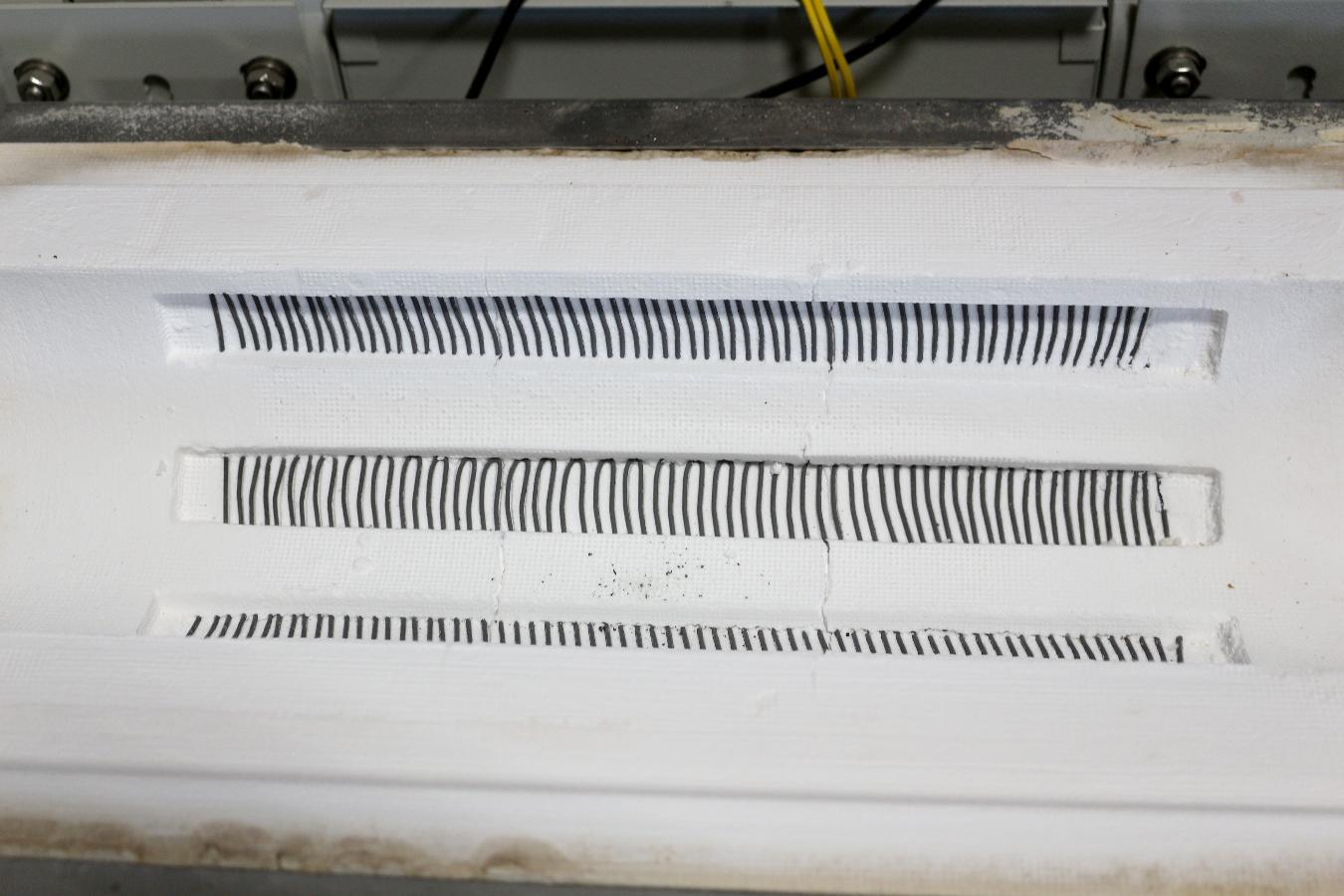

Refractory ID 3.5"
Hot Zone 12"
Heater 2.67 KW

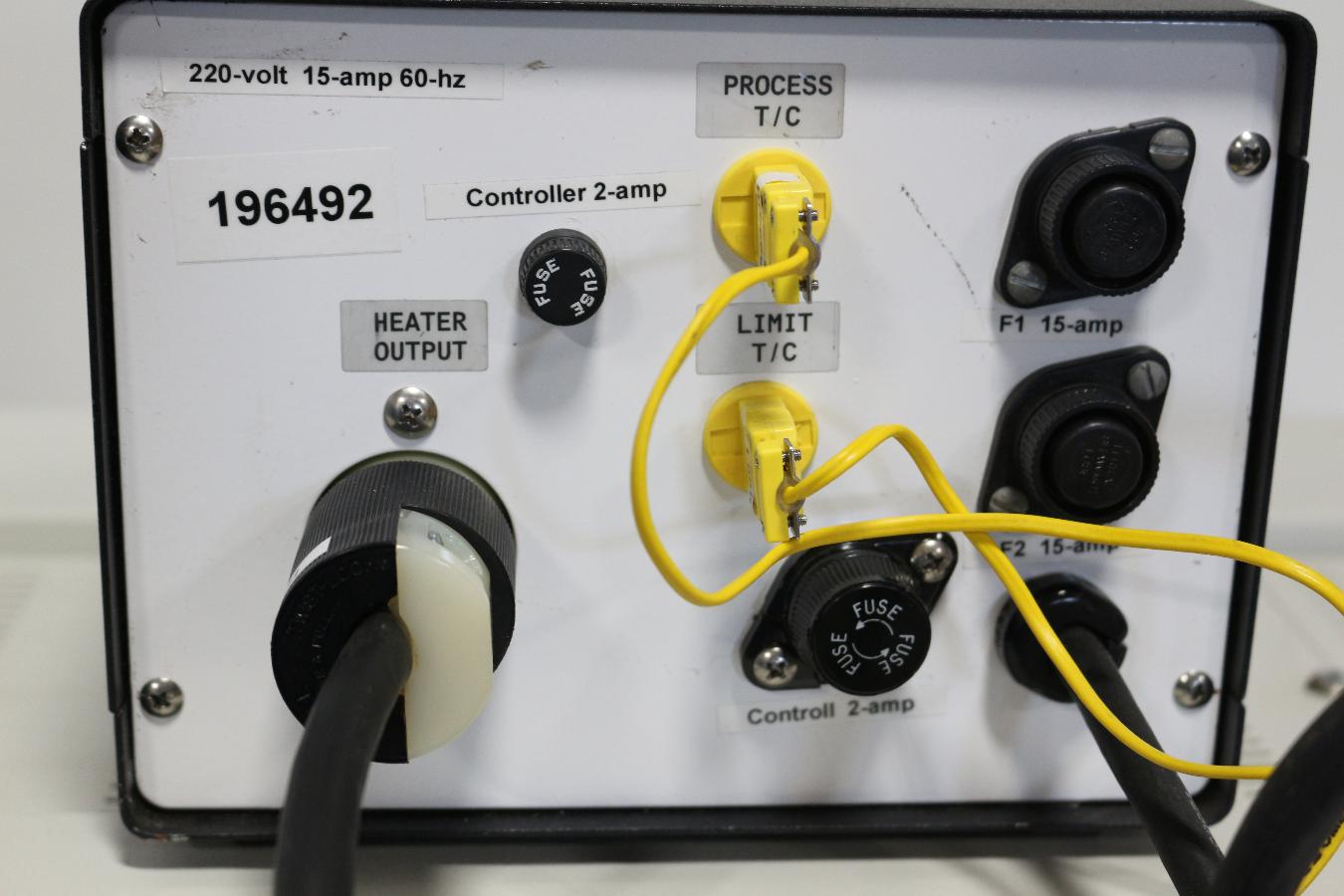

Power Requirements 240 V 12.0 A 50/60 Hz 1 Phase
Exterior Dimensions
Width 20.000 in (50.8 cm)
Depth 23.000 in (58.4 cm)
Height 17.000 in (43.2 cm)
@
$
=
