LINDBERG TUBE FURNACE 36" X 9" 1200 DEG C

Tube Furnaces

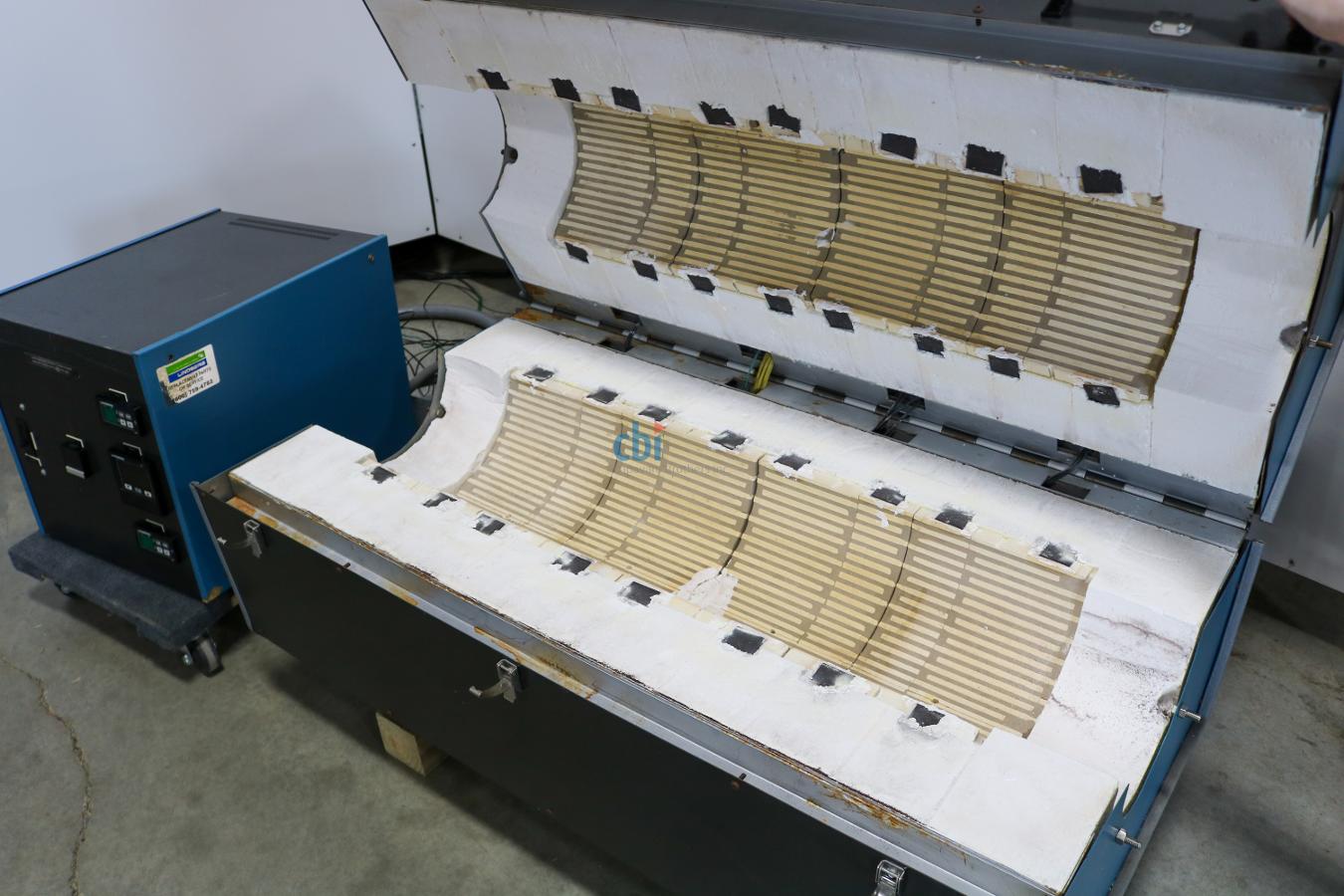

Split Hinge Tube Furnace - Programmable Controller

Optional Glass Open End Process Tube Available

1 unit @ Best Price

Make: Lindberg

Model: 54S977M-1200

Item ID: 215562

Manufacturer	Lindberg
Model	54S977M-1200
Maximum Temperature	1,200 ºC (2,192 ºF, 1,473 ºK)
Heat/Cool Controls
Control Type	Programmable
Overtemperature Protection	YES
Controller Manufacturer/Model	Eurotherm 818P4
Number of Control Zones	3
External Cooling	Air Cooled
Tube Dimensions	*Diameter:* 9.00 in (22.86 cm) *Length:* 36.00 in (91.44 cm)
Thermocouple Type	Type K
Number of Gas Inputs	None
Accessories	Optional Glass Open End Process Tube Available Dimensions: 66"L x 9" ID x 9-7/16" OD. with Steel Collars Inquire for pricing and photos.
Other Information	22,500 Watts Hot Zone: 36" Controller: Model: 58474-PB (2) Eurotherm Model 847 slave controllers (1) Eurotherm 818P4 programmable controller, 4 programs, 16 segments if fixed ramp dwell sequence.
Power Requirements	240 V 60 Hz 1 Phase
Weight	526 lb (239 kg)
