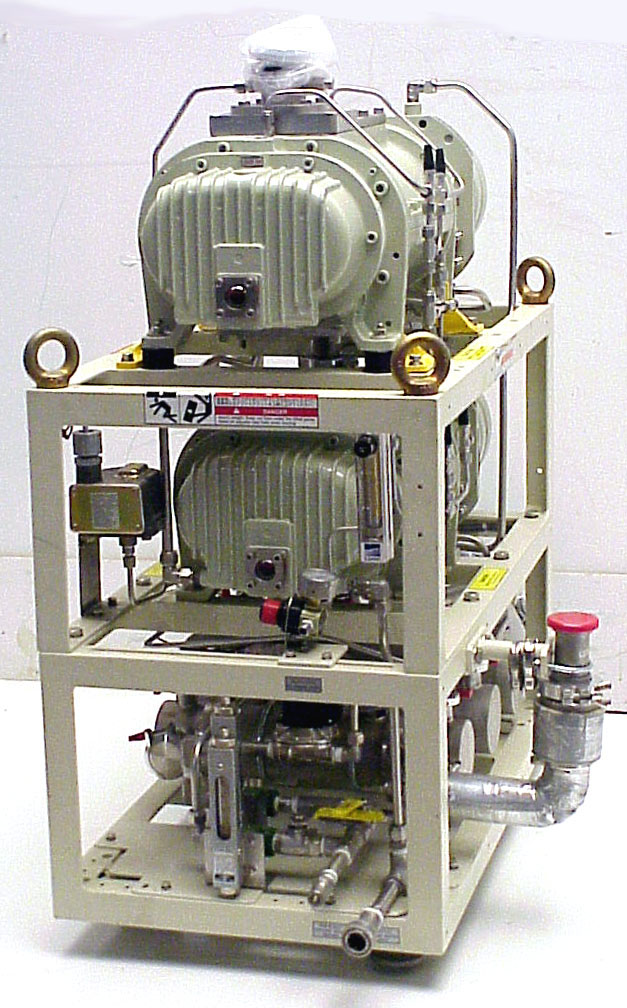

EBARA DRY VACUUM PUMP SYSTEM 127 CFM
Rotary Vane Pumps
Dry Vacuum Pump System
Pumping speed and ultimate pressure are based on 60 Hz operation.
1 unit @ Best Price
Make: Ebara
Model: 50X20
Item ID: 2412
| Manufacturer | Ebara |
| Model | 50X20 |
| Dry Pump | YES |
| Pumping Speed | 127.0 CFM (3,588.7 l/m) |
| Ultimate Pressure | 0.40E-2(En) torr (0.53E-2 mbar) |
| Inlet Flange | KF 50.0 mm (1.969 in) |
| Exhaust Flange | KF 40.0 mm (1.575 in) |
| Duty--Service | Corrosive |
| Two-Stage | YES |
| Direct Drive | Yes |
| Rotational Speed | 3,460 RPM |
| Other Information | Designed for operation in harsh applications such as: |
| Year of Manufacture | 1996 |
| Condition | Like New |
| Power Requirements | 208/240 V 19.0 A 50/60 Hz 3 Phase |
| Exterior Dimensions | |
| Width | 30.000 in (76.2 cm) |
| Depth | 18.000 in (45.7 cm) |
| Height | 38.000 in (96.5 cm) |
| Weight | 722 lb (327 kg) |
