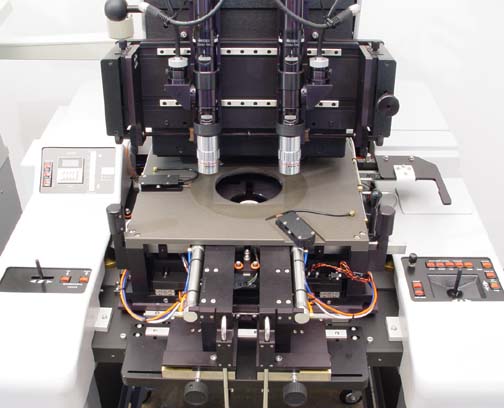

QUINTEL-NEUTRONIX MASK ALIGNER 200 MM
Mask Aligners: Contact/Proximity
Mask Aligner with IR Backside Alignment
Quintel acquired by Neutronix
1 unit @ Best Price
Make: Quintel
Model: UL 7000 IR
Item ID: 24564
| Manufacturer | Quintel |
| Model | UL 7000 IR |
| Wafer Size Range | |
| Minimum | 50 mm |
| Maximum | 200 mm |
| Set Size | 100 mm |
| Mask Plate Size | 5'' x 5'' |
| Alignment Optics | Splitfield Video |
| Proximity Alignment Capability | YES |
| IR Backside Alignment | YES |
| Illuminator Model Number | Q-500 |
| Illuminator Power Rating | 500 Watts |
| External Cooling | Air Cooled |
| Other Information | Split field video with MPLAN APO 5X objectives
|
| Condition | Like New |
| Year of Manufacture | 2001 |
| Power Requirements | 120/240 V 50/60 Hz 1 Phase |
| CE Marked | YES |
| Weight | 1,134 lb (514 kg) |
Shipping & Handling
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).
Payment
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.
