TEMESCAL E-BEAM EVAPORATOR, 6 POCKET

Electron Beam Evaporators

E Beam Evaporator

1 unit @ Best Price

Make: Temescal

Model: BJD 1800

Item ID: 43846

Manufacturer Temescal
Model BJD 1800
Description E Beam Evaporator, 10CC Crucible
Vacuum System Cryo Pumped
Load Lock Included No
E Beam Power Supply
Power Supply Type Solid State
High Voltage Minimum 3 kV
High Voltage Maximum 10 kV
Process Control Voltage Minimum 0 Volts DC
Process Control Voltage Maximum 10 Volts DC
Number of Guns Controlled 1
Lateral/Longitudinal Beam Sweep Temescal
Electron Source Type Six Pocket
Crucible Size 10.00 cc (0.61 cu in)
Vacuum System

CTI Onboard 8 cryopump
CTI 8011 Controller
CTI Compressor 1020R

Film Thickness Monitor Yes
Residual Gas Analyzer Yes
Accessories

Leybold TSP-TH100 RGA

Other Information

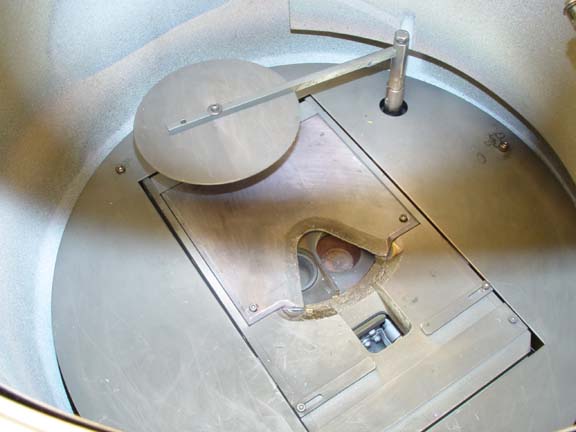

Chamber:

  • 18" Dia., water cooled

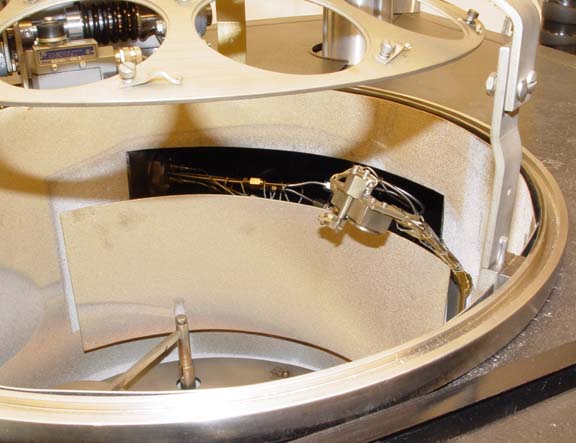

  • Dual crystal sensor
  • TP 8-18 Substrate fixtrue

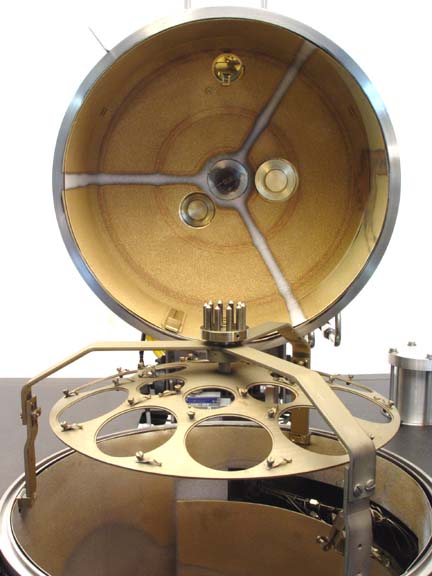

  • Single dome configured for (10)3" Wafers and (7) 2" Wafers

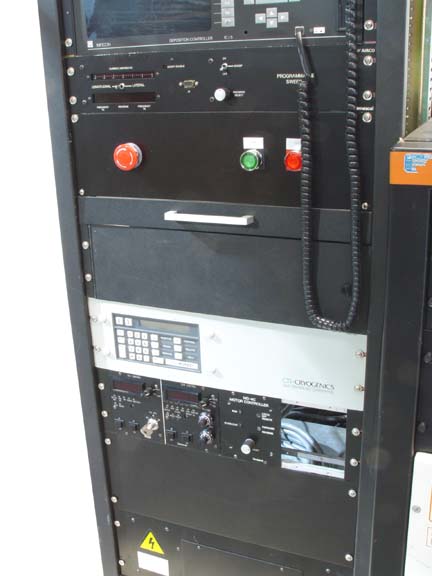

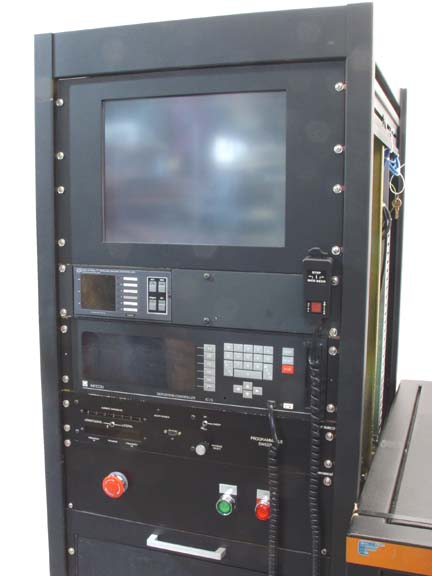

    Control console:
  • Fanuc system computer
  • Granville Philips 360 Gauge controller
  • Leybold IC/5 Deposition control
  • Temescal programmable sweep control
  • Edwards Hi vac control
  • MC-4C Planetary motor control

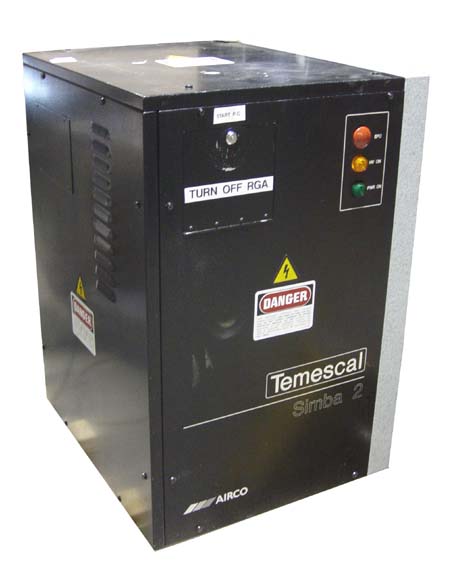

  • SIMBA 2 power supply
  • Temescal gun control
Power Requirements 208 V 100.0 A 50/60 Hz 3 Phase
Condition Very Good
Exterior Dimensions
Width 56.000 in (142.2 cm)
Depth 34.000 in (86.4 cm)
Height 41.000 in (104.1 cm)
@
$
=
