NEAT NEW ENGLAND AFFILIATED TECHNOLOGIES OPEN FRAME X-Y STAGE
Open-Frame Stages

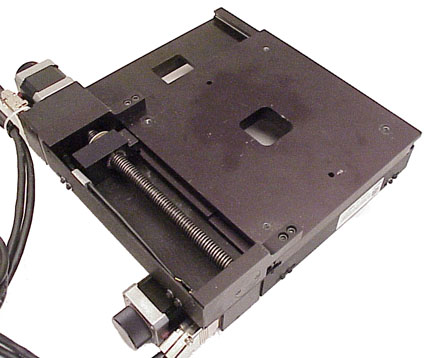

Open Frame X-Y Stage
Newport OFS-8080-SM
1 unit @ $1,250.00
Make: Neat
Model: OFS-8080-SM
Item ID: 8053
| Manufacturer | Neat |
| Model | OFS-8080-SM |
| Configuration | X-Y |
| Mechanical Drive System | Ballscrew |
| Screw Pitch | 5 turns per inch |
| Linear Accuracy | 0.0001 |
| Stage Length | 12.00 in (305 mm) |
| Stage Width | 12.00 in (305 mm) |
| Maximum Payload | 6.50 lb (2.95 kg) |
| Motor | Drive: Stepper Motor Size: 17 |
| Other Information | Open frame: 6.18" x 6.18" |
| Exterior Dimensions | |
| Width | 12.000 in (30.5 cm) |
| Depth | 12.000 in (30.5 cm) |
| Height | 3.250 in (8.3 cm) |
| Weight | 11 lb (5 kg) |
