Item ID: 172393

Offered 1 Offered at Best Price


Semi-Automatic Wedge Bonder

Model 4500B operates under microprocessor control with user-programmed memory to stitch bond a succession of parallel multi-arch wires, requiring an operator only to position the critical bond target. Each increment of motion of tool and work in both Z and Y directions is chosen by stepper motors under program control so that the resulting wire connections have identical shapes. This is ideal for bonding high power, high frequency devices where it is necessary to hold the mutual inductance of parallel wires constant.

In addition to this West-Bond 4500B, Capovani Brothers Inc stocks a wide range of used and refurbished manual wedge bonders. Typical manufacturers include F&K Delvotec, Hybond, Kulicke & Soffa, Mech-El, Orthodyne, and West-Bond. To view our complete stock of used manual wedge bonders visit our Manual Wedge Bonders category.

This used manual wedge bonder and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

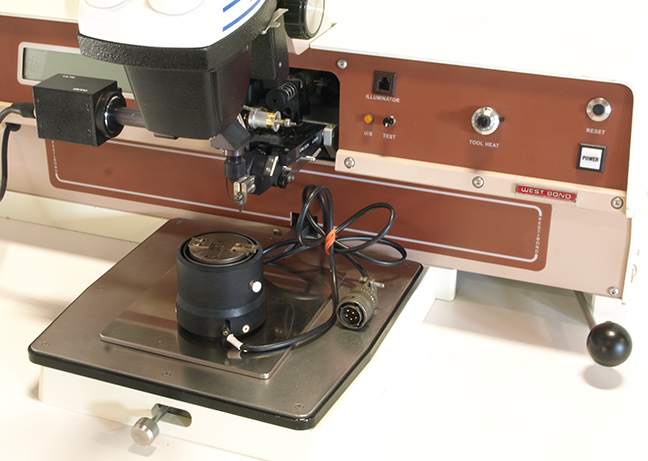

  Click to see additional image(s)... other image

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer West-Bond
Model 4500B
Description Semiautomatic Wedge Bonder

Heated Work Holder with West Bond 1200D Power Supply
Heated tip

Other Information

The 4500B is a single tool with 45 degree wire feed designed to bond aluminum or gold wires ranging from 0.0007 in. to 0.002 in.

Power Requirements 115 V     2.5 A     50/60 Hz     1¬†Phase
Exterior Dimensions
  Width 27.000  in  (68.6 cm)
  Depth 26.000  in  (66.0 cm)
  Height 19.000  in  (48.3 cm)
Weight 92  lb  (42 kg)
