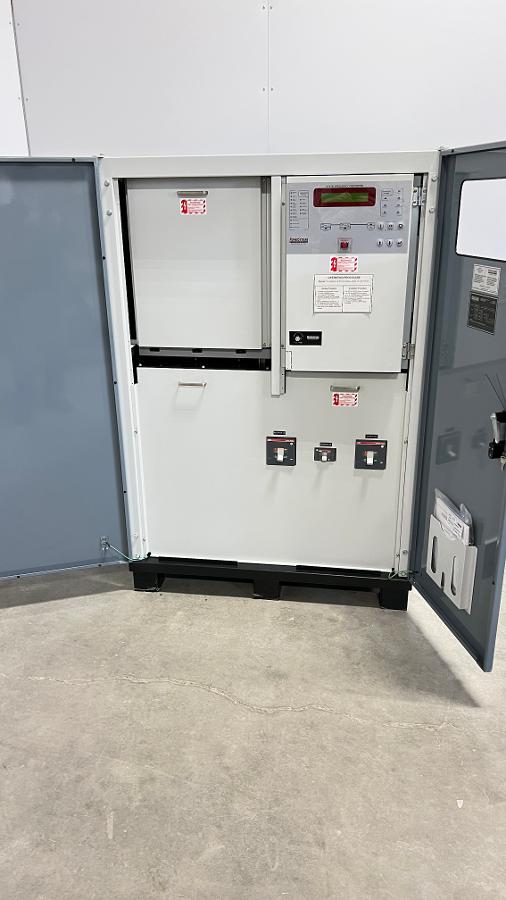

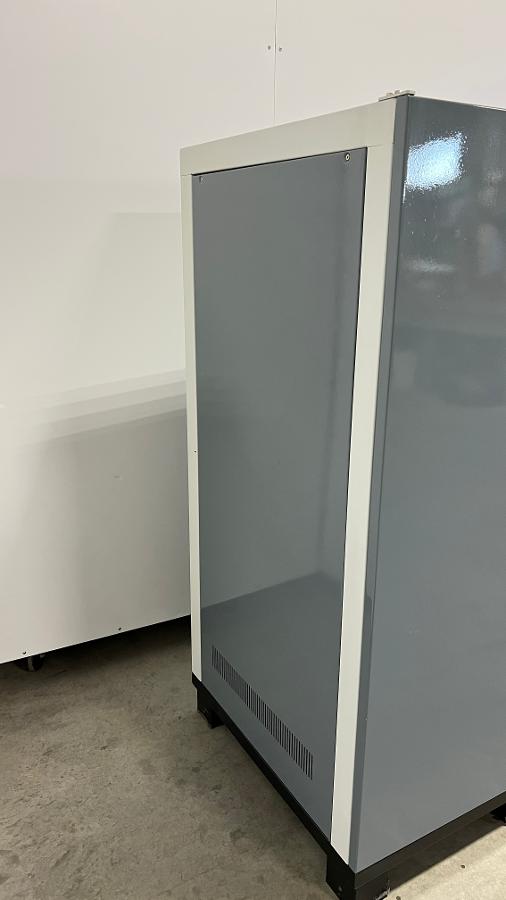

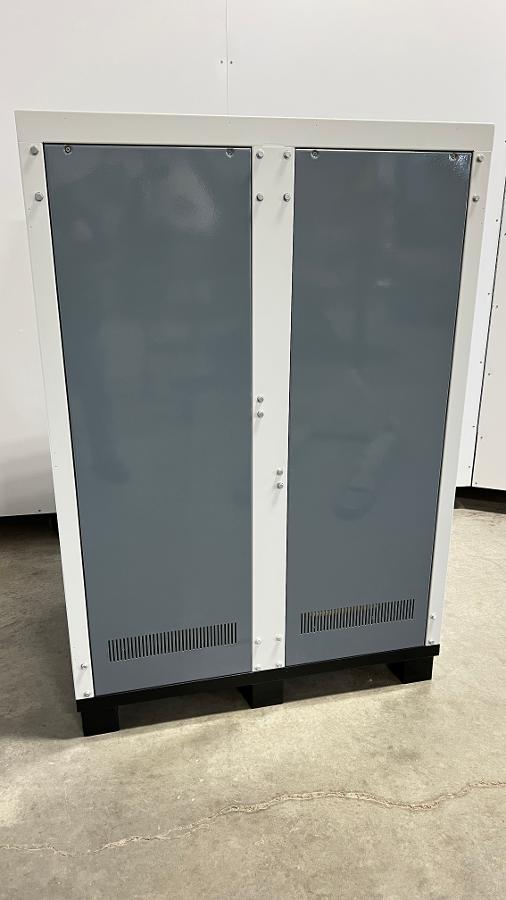

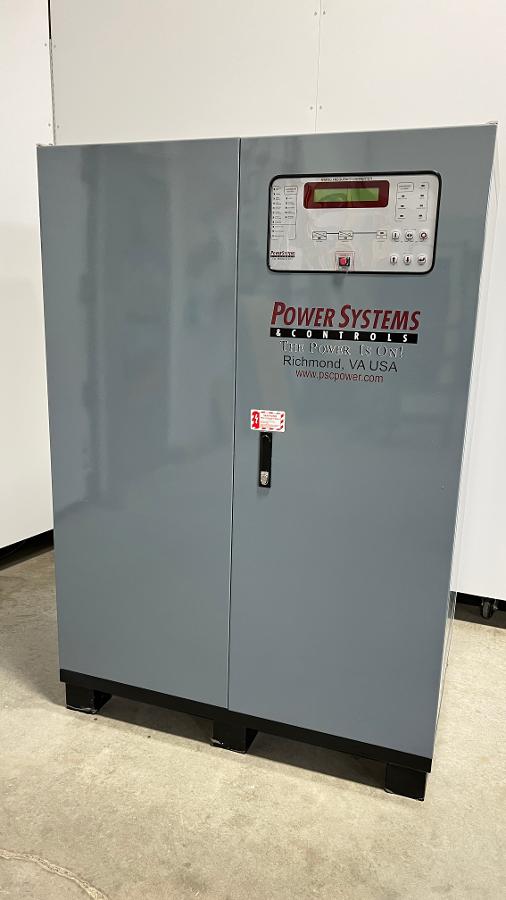

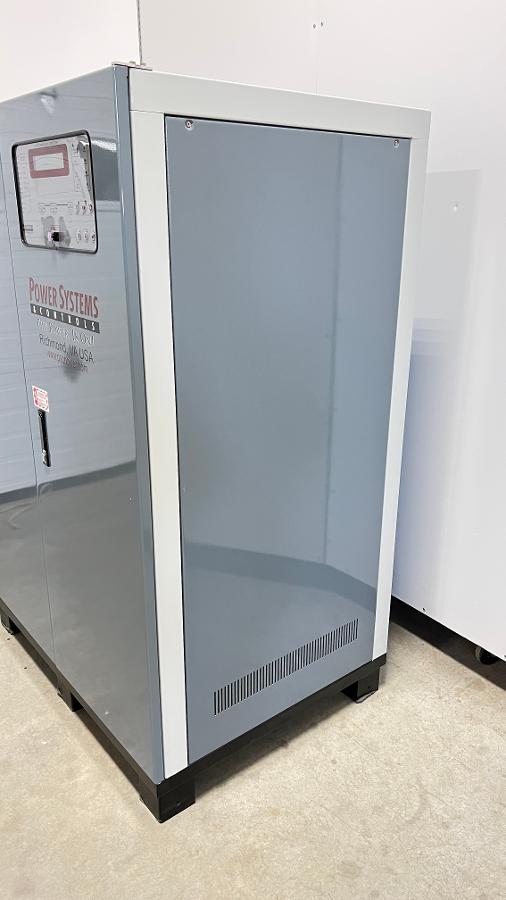

POWER SYSTEMS AND CONTROLS STATIC FREQUENCY CONVERTER 125KVA

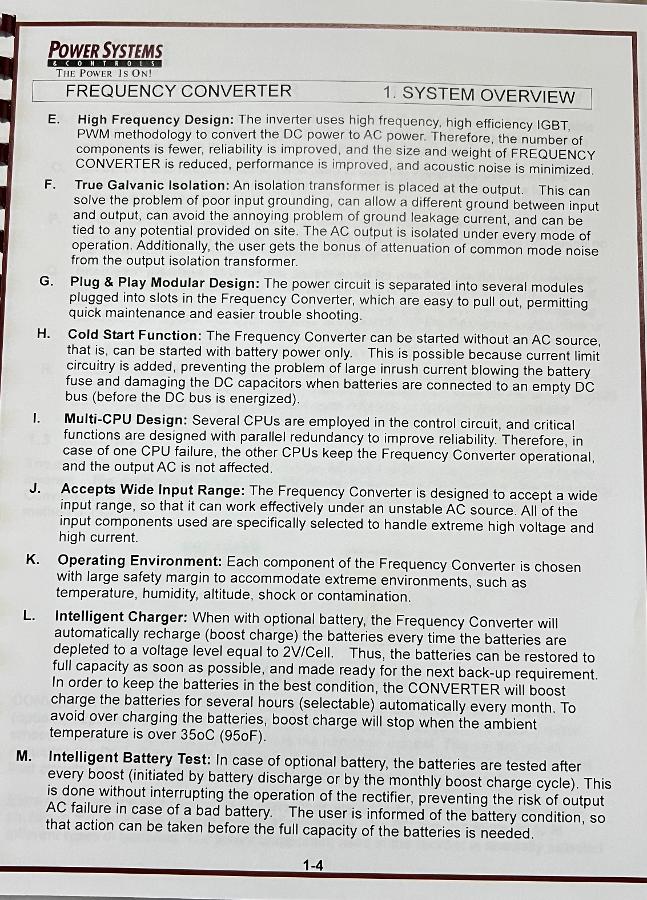

The Series SFC 3 phase static frequency converter utilizes 6 and 12 pulse, as well as, "IGBT" topology for the most efficient solid state frequency conversion available. This advancement in digital technology gives PS&C's converters a great advantage over other conventional converters.

POWER SYSTEMS AND CONTROLS STATIC FREQUENCY CONVERTER 125KVA
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Power Systems & Cont
Model SFCS00125DRY
Description Frequency Converter - 125 KVA

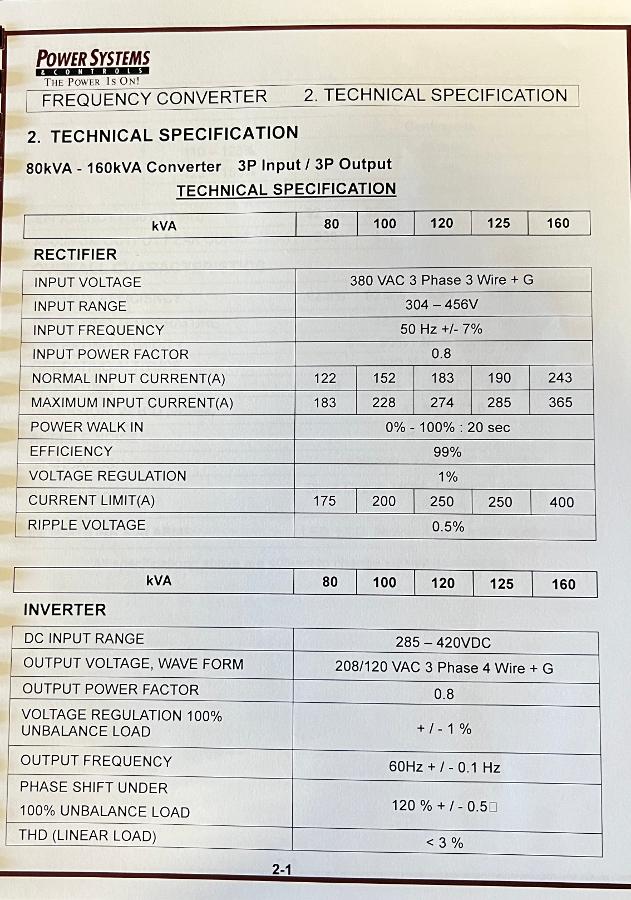

Other Information
  • Input voltage: 380VAC 50 Hz 3 phase 3 wire + ground
  • Input voltage range: 304-465VAC
  • Input frequency range: 50 Hz ±5%
  • Input current: 190A
  • Output voltage: 208/120VAC 3 phase 4 wire + ground
  • Output current: 200A
  • Output frequency: 60 Hz ±1%
Exterior Dimensions
  Width 43.300  in  (110.0 cm)
  Depth 31.500  in  (80.0 cm)
  Height 63.000  in  (160.0 cm)
Weight 2,602  lb  (1,180 kg)
