Item ID: 165163

Offered 1 Offered at Best Price

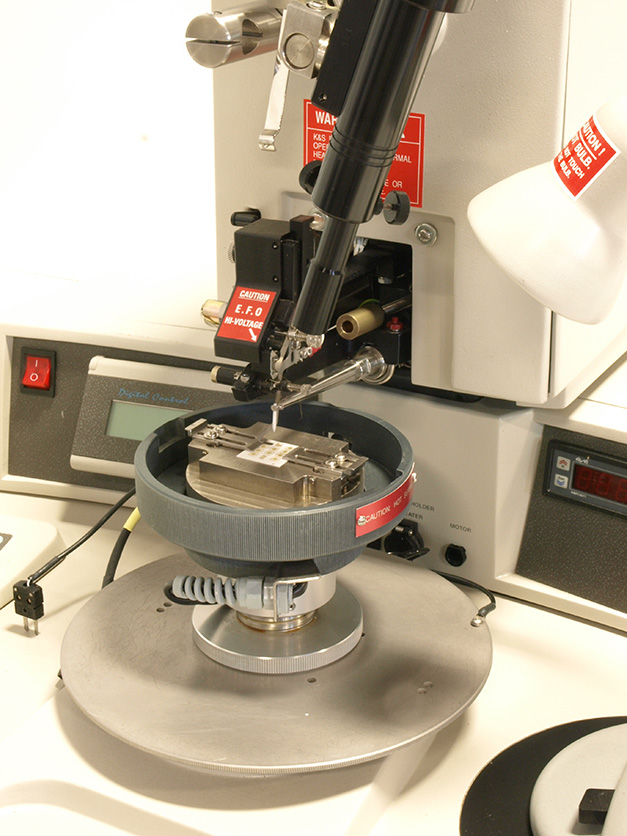

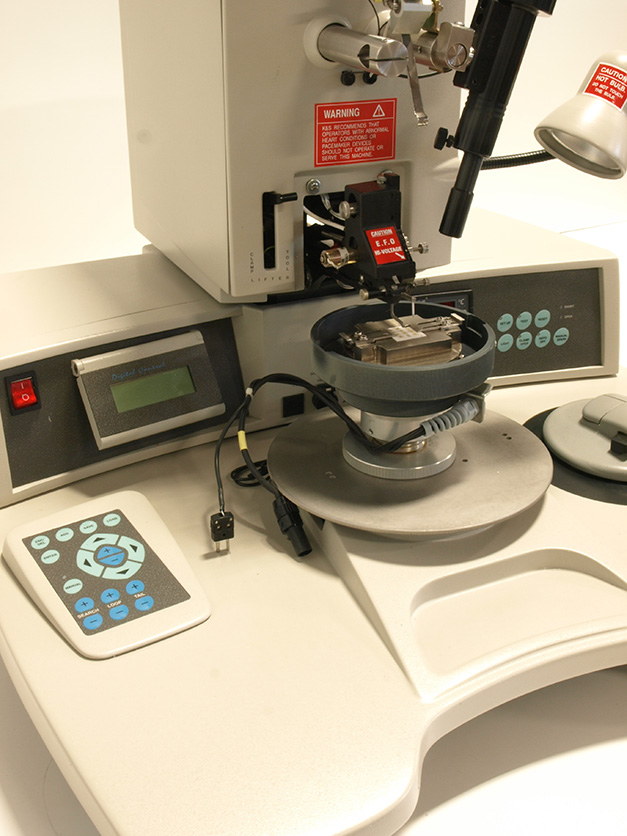

Manual Ball Bonder

In addition to this Kulicke & Soffa 4524D, Capovani Brothers Inc stocks a wide range of used and refurbished ball bonders. Typical manufacturers include F&K Delvotec, Hybond, Kulicke & Soffa, Orthodyne, West-Bond. To view our complete stock of used ball bonders visit our Ball Bonders category.

This manual ball bonder and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Kulicke & Soffa
Model 4524D
Description Manual Ball Bonder

Stereozoom microscope to be included; make and model to be determined.

Other Information

Deep Access, 6 Channels,up to 200 programs, LCD Display
Bonding area: 6" x 6"
Throat dept: 5.6"
Gross table motion: 5.5"
Fine table motion: 0.55"
Z Motion system: DC servo/LVDT control
Z Travel: 9.1mm
Ultrasonic system

  • 60 kHz Transducer
  • Low power: 1.3W
  • High power: 2.5W
    Bond time:
  • Ball bonding/bumping: 20 to 200ms
  • Single point, TAB: 20 to 1000ms
  • Bond force: 10 to 160 gr
  • Gold 0.7 to 3.0 Mil
  • Spool: 2"
  • Wire feed 90°
  • Wire termination: clamp tear
    Modes of operation:
  • Semi-auto
  • Manual Z
  • Ball bonding
  • Single point TAB
  • Ball bumping
  • Coining

Ball formation: Negative EFO (N.E.F.O.)
Heated 2"x2" work holder
Targeting spotlight
CE Label

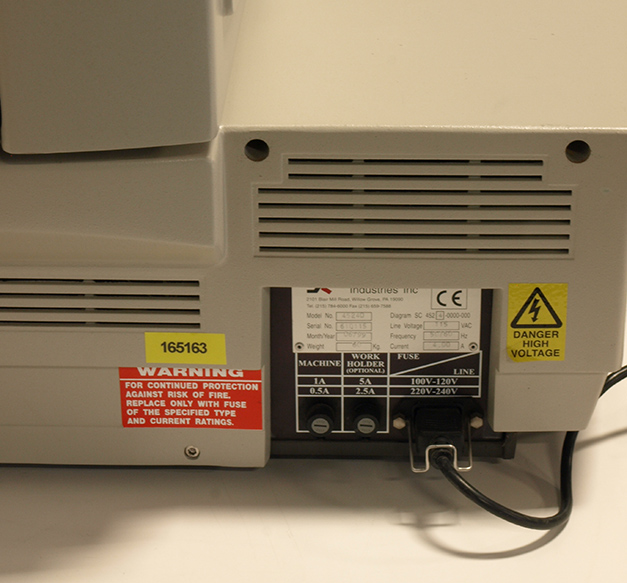

Power Requirements 115 V     4.0 A     50/60 Hz     1¬†Phase
CE Marked YES
Exterior Dimensions
  Width 27.000  in  (68.6 cm)
  Depth 21.500  in  (54.6 cm)
  Height 21.000  in  (53.3 cm)
Weight 69  lb  (31 kg)
