FULL DESCRIPTION of Item 186171

in Vacuum Pumping Systems
Item ID: 186171

Offered 6 Offered at Best Price


OERLIKON LEYBOLD ROOTS PUMPING SYSTEM 118 CFM

Roots Pumping System

In addition to this Oerlikon Leybold D40B/WSU251, Capovani Brothers Inc stocks a wide range of used and refurbished vacuum pumping systems. Typical manufacturers include Alcatel, Edwards Vacuum, Leybold, Stokes Vacuum and Varian. To view our complete stock of used vacuum pumping systems visit our Vacuum Pumping Systems category.

This used vacuum pumping system and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus list

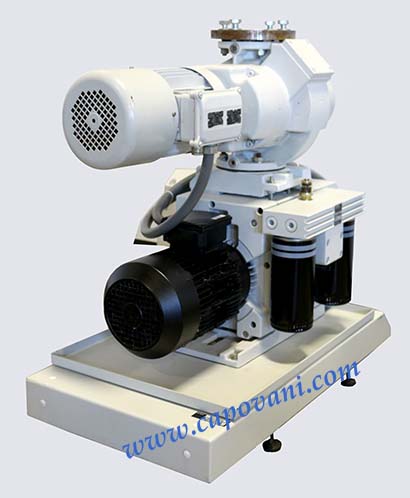

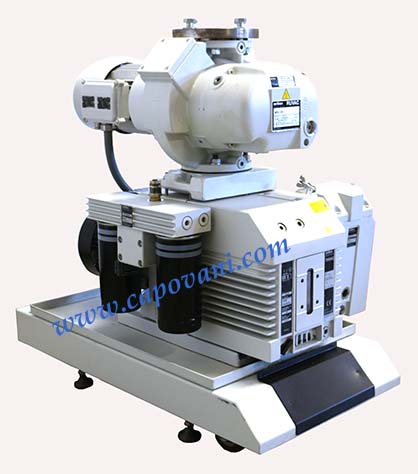

OERLIKON LEYBOLD ROOTS PUMPING SYSTEM 118 CFM
  Click to see additional image(s)... other images

Location: Scotia, NY, United States
Unit Price Unstated
Number of Units 6
Manufacturer Oerlikon Leybold
Model D40B/WSU251
Pumping Speed 118.0  CFM  (3,334.4 l/m)
Ultimate Pressure  2.00E-5(En)  torr  (2.67E-5 mbar)
Inlet Flange ISO-K     63.0  mm  (2.480 in)
Exhaust Flange KF     40.0  mm  (1.575 in)
Backing Pump Model TRIVAC D40B
Roots Pump Model RUVAC WSU 251
Motor Horsepower 3.5  HP
Accessories The D40B has an AF 40-65 exhaust filter (p/n 18916)
and a CF 40-65 chemical oil filter (p/n 10197)
Other Information Oil Capacity: 3.5 qts
Power Requirements (WSU 251): 200/460 V; 5.5/3.2 A; 50/60 Hz
Power Requirements (D40B): 200-240/380-480 V; 12/5.2 A; 50/60 Hz
Extended Description  Details at Oerlikon Leybold WAU251 D40B_WSU251 D40B.pdf
CE Marked YES
Exterior Dimensions
  Width 24.000  in  (61.0 cm)
  Depth 36.000  in  (91.4 cm)
  Height 36.000  in  (91.4 cm)
Weight 500  lb  (227 kg)
