Item ID: 189121

Offered 1 Offered at Best Price

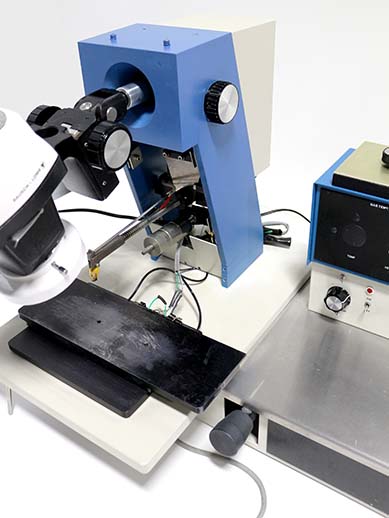

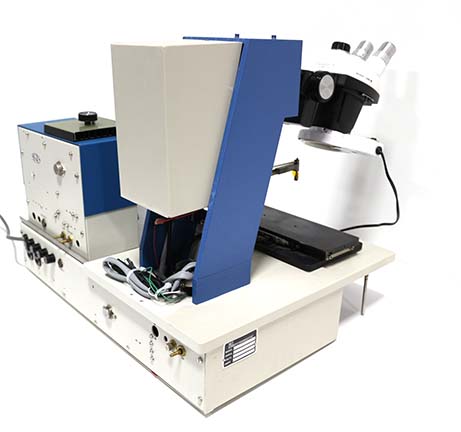

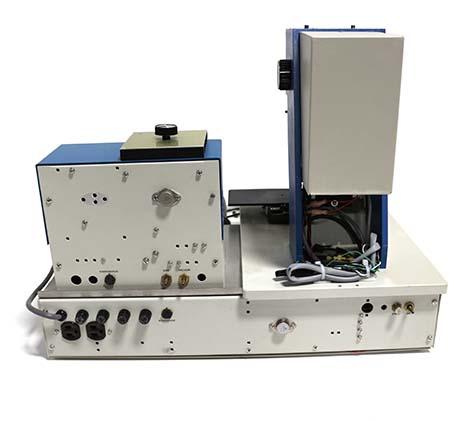

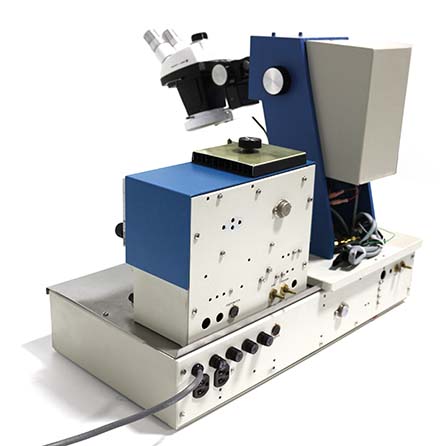

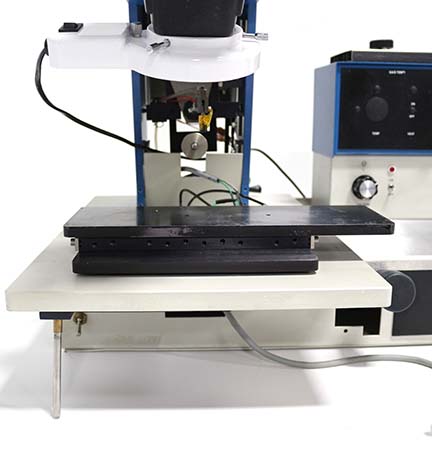

The Mech-El/MEI 709 is a manual eutectic die attacher.  The machine comes with a  2 position slide table for die presentation and heated work holder.  The MEI 709 uses a unique hot gas head that allows the user to heat the package to a temperature below the wetting temperature of the solder and use the hot gas to bring the localized heat to only the die area to wet the solder or perform.

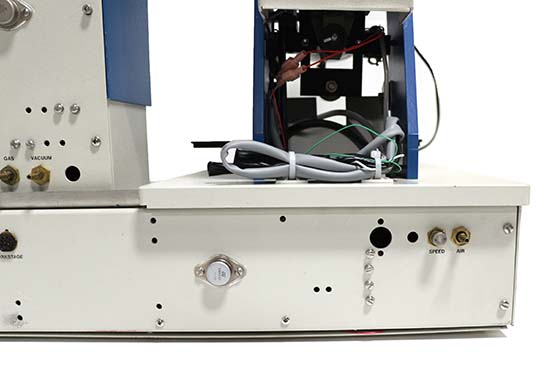

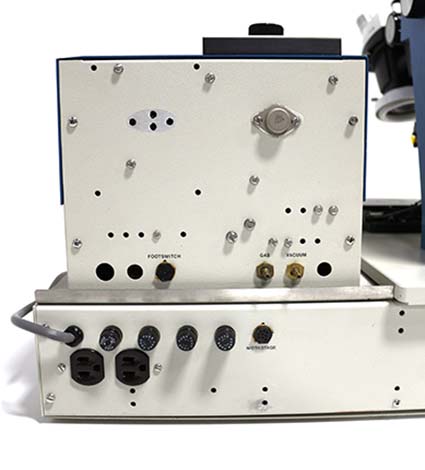

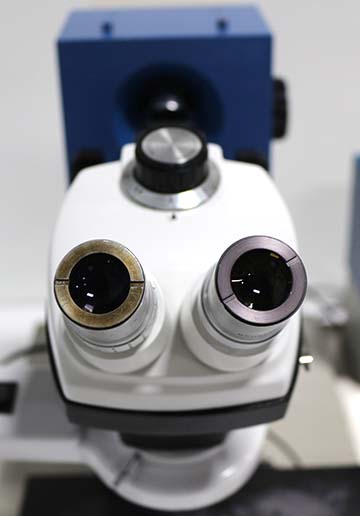

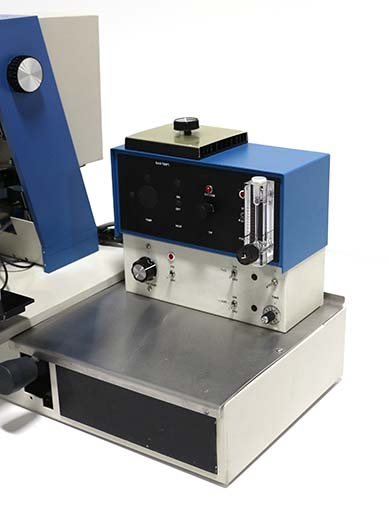

  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Mech-El
Model 709
Description Eutectic Die Attach System
Other Information


Mechanical Scrub: Scrub frequency adjustable from 0 to 100 CPS.  Scrub amplitude adjustable from 0 to 100 mils (0 to 2.54 mm)

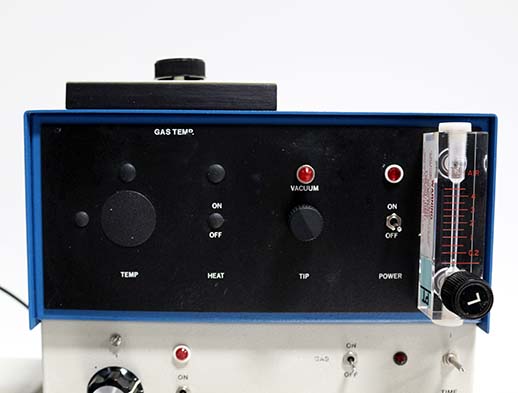

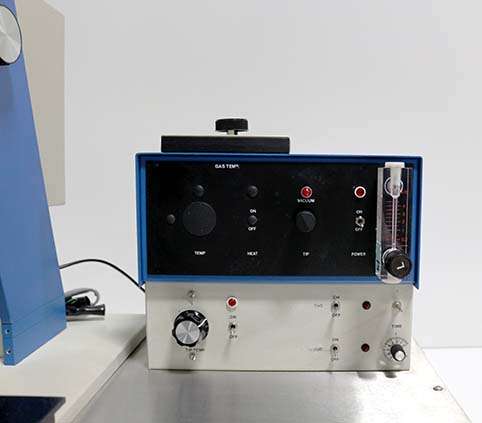

Hot Gas Head: Quartz heater produces 500 degree C. gas.
Tip Weight: 0 to 200 grams.

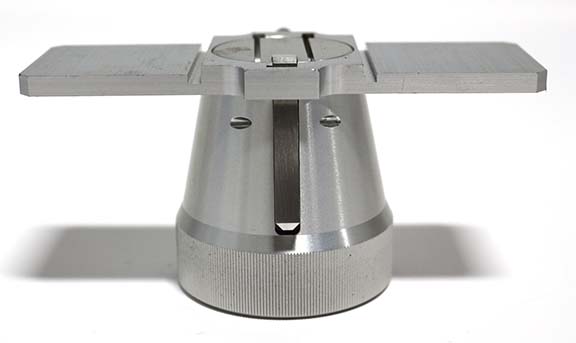

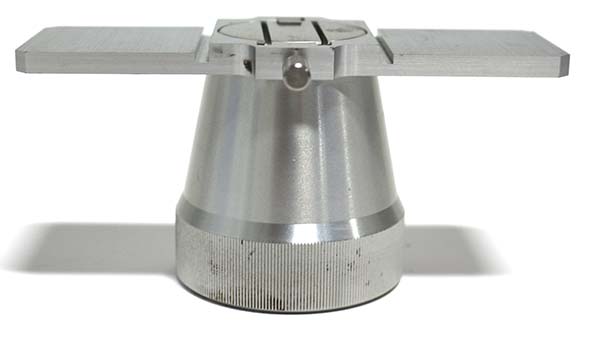

Collet Mount:  Cold or heated tool holder.  Tool temperature from 25 to 400°C.
Multi-Collet: Manually between one or four tools.

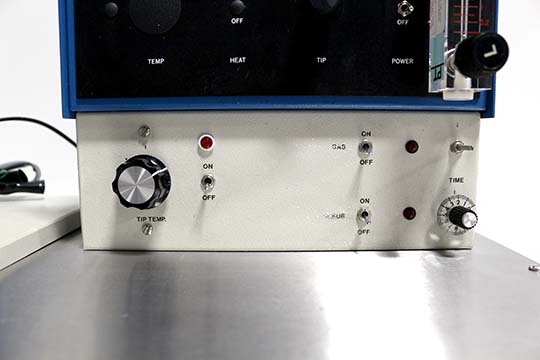

Hot Gas/Scrub Timers Option: Individual time adjustment from 0 to 3 seconds.

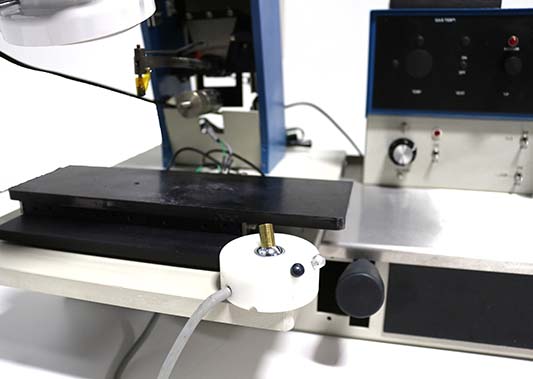

Chip Dish:   2" diameter mirror die dish and 2" x 2" Fluoroware carrier.  Slide travel is    3" (7.62 cm) standard.
Micropositioner:  6:1 standard.

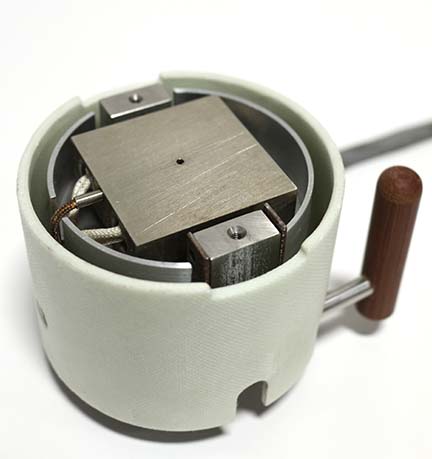

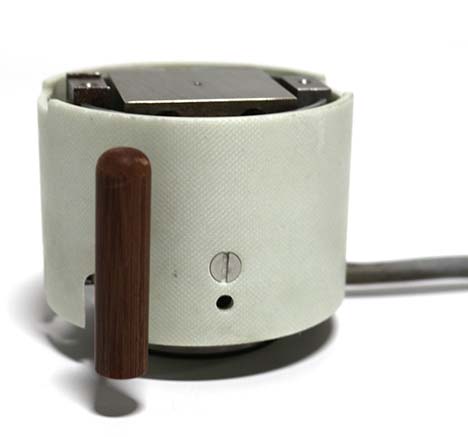

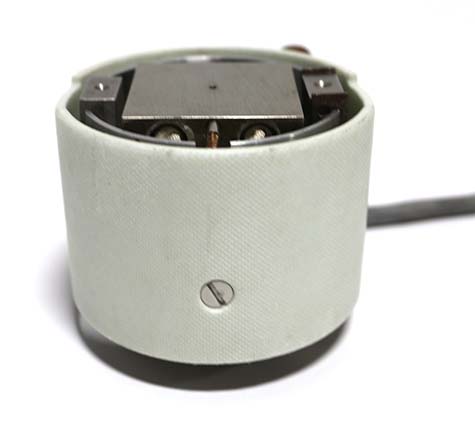

Heated Workstage: Regulated temperature from ambient to 500 degrees C
Services:  Air: 20-80 PSI (50-230 kg/cm2) (Filtered)
                Vacuum: 20" (510 mm) Hg minimum
                Cover Gas: 20 PSI (60 kg/cm2)

Power Requirements 115 V     5.0 A(2)     50/60 Hz     1¬†Phase
Exterior Dimensions
  Width 18.000  in  (45.7 cm)
  Depth 23.000  in  (58.4 cm)
  Height 17.750  in  (45.1 cm)
Weight 40  lb  (18 kg)
