FULL DESCRIPTION of Item 40300

in Electron Beam Evaporators
Item ID: 40300

Offered 1 Offered at Best Price


TEMESCAL HIGH VOLUME E BEAM EVAPORATOR, SIX POCKET

High Volume E Beam Evaporator

In addition to this Temescal VES-2550, Capovani Brothers Inc. stocks a variety of other used and refurbished Thin Film Deposition tools including Sputtering, Electron Beam Evaporators (E Beam) and Thermal Evaporators (Resistive Evaporators). Typical manufactures include Airco Temescal, Applied Materials, CHA Industries, CVC, Denton, Dynavac, Edwards, Leybold, Oerlikon, Temescal, Varian, Veeco Instruments and VonArdenne.

To view our complete stock of used physical vapor deposition equipment, visit our Physical Vapor Deposition Equipment Category.

Learn more about our Physical Vapor Deposition (PVD) Equipment Refurbishment and Functional Testing Procedures

This used e-beam evaporator and all the other used and refurbished semiconductor, scientific, and laboratory equipment listed on this website are owned by Capovani Brothers Inc. and stored at our facility in Scotia, NY.

Sell us your used, surplus or idle assets! Send us your surplus equipment list

 TEMESCAL HIGH VOLUME E BEAM EVAPORATOR, SIX POCKET
  Click to see additional image(s)... other images

Location: Scotia, New York, United States
Unit Price Unstated
Number of Units 1
Manufacturer Temescal
Model VES-2550
Description High Volume Evaporator
Vacuum System Cryo Pumped
Load Lock Included No
E Beam Power Supply
  Power Supply Type Tetrode Tube
  High Voltage Minimum 6 kV
  High Voltage Maximum 10 kV
  Process Control Voltage Minimum 0 Volts DC
  Process Control Voltage Maximum 10 Volts DC
  Number of Guns Controlled 1
  Electron Source Type Six Pocket
Vacuum System CTI On Board 10 High Vac Cryo Pump
Granville Philips 307 Ion gauge controller
Gas Inputs One
Substrate Heaters Yes
Film Thickness Monitor Yes
Residual Gas Analyzer No
Accessories (4)1000 Watt substrate heaters
Leybold IC/5 deposition controller w/dual crystal monitor
Other Information Deposition chamber:
  • Water cooled
  • 25.5"dia x 12"high

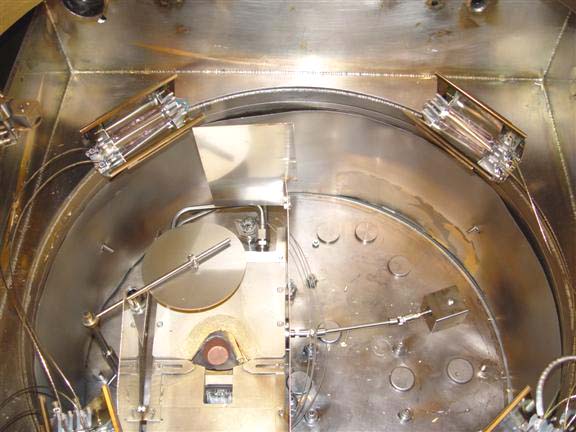

    Source Chamber
  • Pnuematically actuated
  • 27.5"dia
  • Can accomodate upto three sources

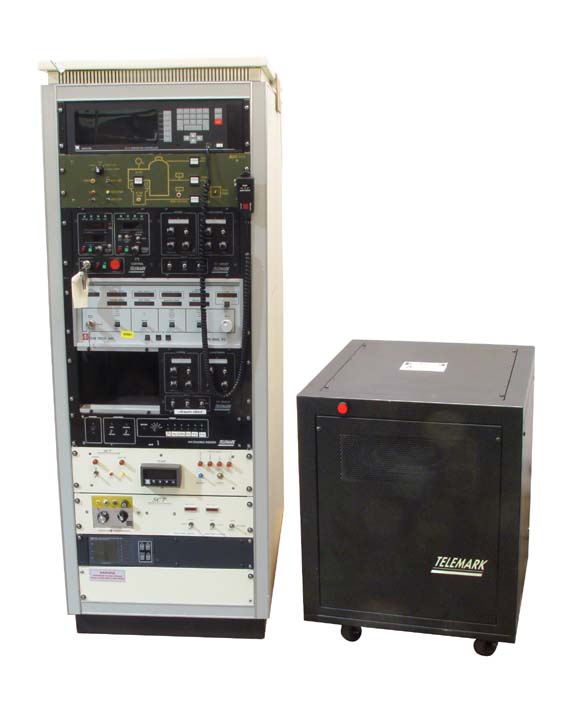

    Telemark model TT10 power supply, p/n:123-1003-1
    Telemark TT10/15 controller
    Telemark 376 crucible indexer

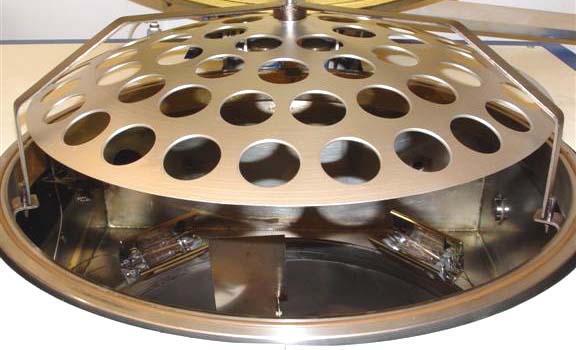

    Model TP-8, 2", substrate fixture for lift off process. Up to 162 2" substrates
    CTI 8510 Cryo compressor

    Source Number Two--Option
  • Temescal SFIH-270-2 Single 40cc pocket; 14kW rating,
  • Telemark TT6 Power Supply
  • TT3/6 Controller
  • Inficon dual crystal monitor
  • Inficon oscillator package
  • Shutter for source
  • Feedthroughs
  • One MKS 10 SCCM O2 MFC with shut off valve
Exterior Dimensions
  Width 64.000  in  (162.6 cm)
  Depth 40.000  in  (101.6 cm)
  Height 72.000  in  (182.9 cm)
Weight 1,900  lb  (862 kg)
