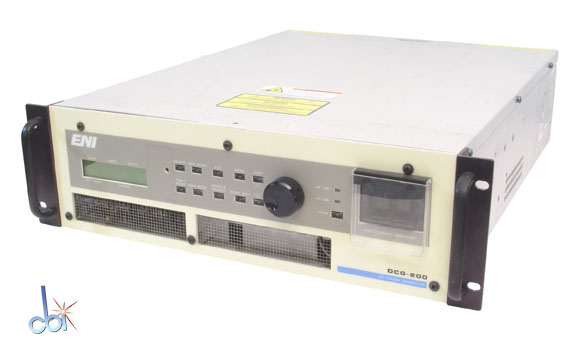

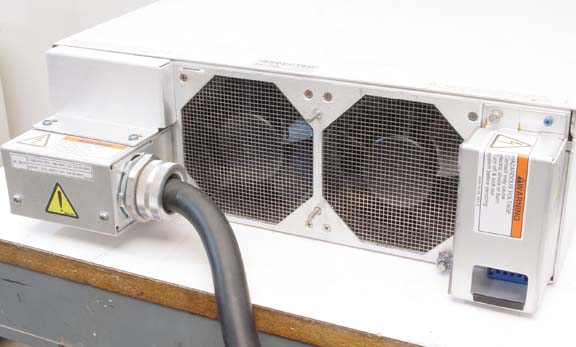

Applied Materials P/N: 0190-08279
10 KW Master, no slave
Fully functional front panel
Control Interfaces: RS232, RS422, Device net, 15 pin analog user interface
Low Z option
Full ENI Part Number: DC21M-Z141300110A
Input power: 340-480 Volt 3 Ph, 50/60 Hz
Input current: 23A
Transformer taps available: 400V, 500V, 645V
Panel meters: Digital
The system supports two separate “Monitors” over RS-232/RS-
422 electrical protocol. The first is the ENI Monitor. The second is
the “Emulation Monitor”, as implemented on the MDX- 10™,
manufactured by Advanced Energy®.
Specify taps setting when ordering, please
