Linear Stages


» Switch Major Category
Click an item's ID# below for its full specifications , or:

List other sub-categories under StagesList other sub-categories under Stages

Show other product types under StagesShow other product types under Stages


  • To sort on a column, click the column head; click it again to reverse the sort.  View measures in specified units, or  click to change units of measureMetric  click to change units of measureUS
  • Click Compare Items to compare the full details of up to 5 items.
  • Hide photos, compress data table
Item IDPhotoItem DescriptionConfigurationDrive SystemTotal Travel, XYZIndexer Incl#PriceNotes
MakeModelXYZ
»mm  in»mm  in»mm  in$
2345 Aerotech ALS50075/ALS50060X-Y30.0024.00 1
5446 Aerotech ATS 100-100Single AxisPrec Ball screw4.00 4 1,950.00
86406 Aerotech ATS 404Single AxisPrec Ball screw4.00 1 1,525.00
5039 Aerotech ATS 406Single AxisPrec Ball screw5.91 1 1,150.00
161874 Aerotech ATS 524 ATS 412X-YPrec Ball screw24.5012.75 2
123770 Aerotech ATS-303WSingle Axis2.95 1 175.00
1227 Aerotech ATS02005-U-40PSingle AxisPrec Ball screw1.97 6 750.00
107843 Aerotech ATS100-100Single AxisPrec Ball screw4.00 1 1,250.00
107852 Aerotech ATS100-200Single AxisPrec Ball screw8.00 2 1,500.00
2568 Aerotech ATS100-200Single AxisPrec Ball screw8.00 1 1,600.00
2321 Aerotech ATS100-50-U-20PSingle AxisPrec Ball screw1.97 6 1,175.00
2341 Aerotech ATS50060-M-02PSingle AxisSuprec Balscrw24.00 1 3,600.00
5451 Aerotech AVS 105Single AxisLead screw0.20 4 1,975.00

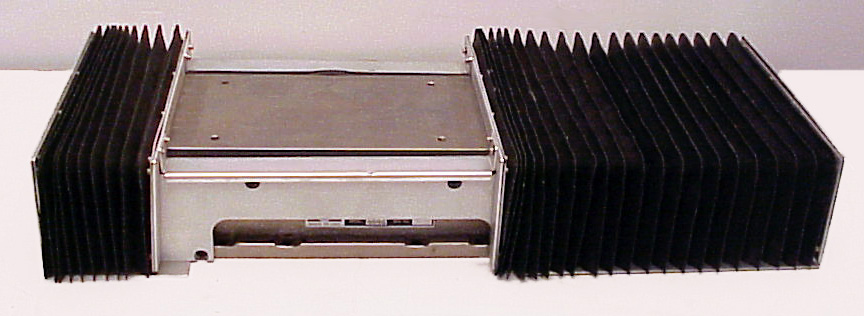

2097 Anorad 4443Single AxisBallscrew7.00 1 750.00

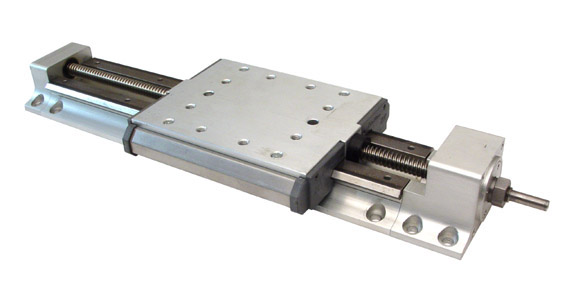

42959 Bishop-Wisecarver LP-2W-BS-CENSingle AxisBallscrew6.00 2 375.00
42961 Bishop-Wisecarver LP-2W-BS-CENSingle AxisBallscrew10.00 2 475.00
39985 Cleveland Precision HEAVY DUTYX-YLead screw2.004.00 1 600.00

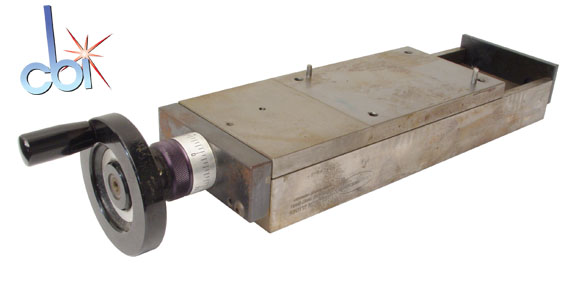

39982 Cleveland Precision OTHERSingle AxisManual Drive3.00 1 400.00
4060 Daedal 4002DSingle AxisOther0.50 1 125.00

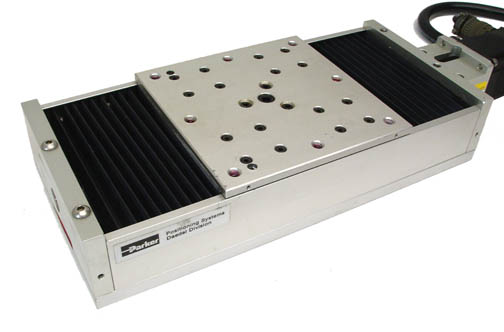

24630 Daedal 406004Single AxisPrec Ball screw4.00 1 1,750.00

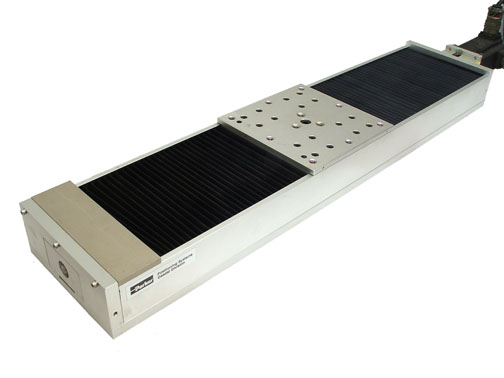

24631 Daedal 406016NEPSingle AxisPrec Ball screw16.00 1 2,200.00

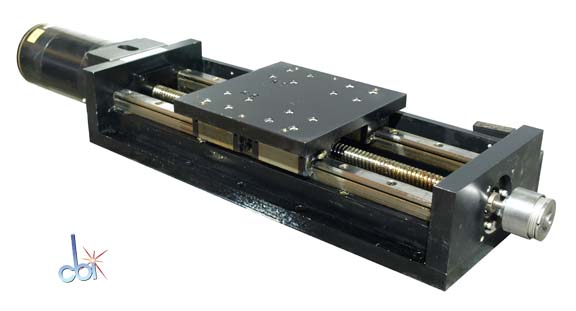

2382 Daedal 408121SLHSingle AxisBallscrew12.00 1 1,950.00 F*
2314 Daedal 424121Single AxisBallscrew12.00 1 1,975.00

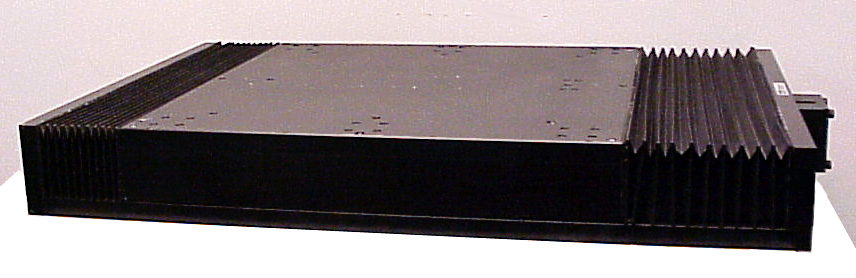

2313 Daedal 424181Single AxisBallscrew18.00 1 2,350.00 F*

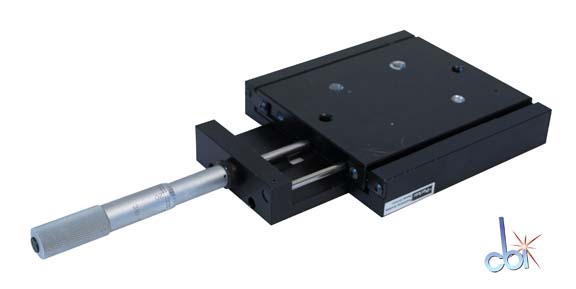

85131 Daedal 4412Single AxisMicrometer Driv2.00 1 250.00
1560 Daedal 4910Single AxisMicrometer Driv1.00 3 250.00
7836 Daedal 500000ETSingle AxisBallscrew12.00 2 1,350.00
1639 Daedal 506101S6Single AxisBallscrew10.00 1 500.00

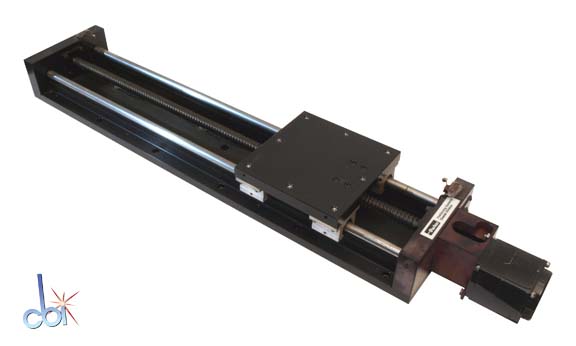

2381 Daedal 506201SSingle AxisBallscrew20.00 1 1,175.00
7571 Daedal CP4965-04Single AxisManual Drive4.00 1 350.00
14180 Daedal M4965-08Single AxisPrec Ball screw8.00 1 600.00

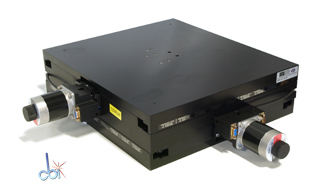

133838 Danaher NoneX-YLead screw14.0012.00 2 1,975.00 F*

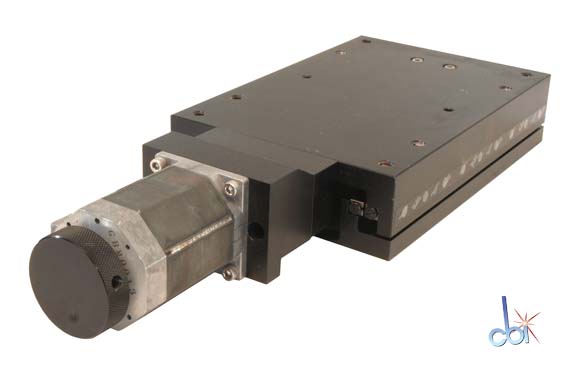

92637 DCI 008-0725Single AxisLead screw6.00 1 450.00
92607 DCI DC-2x3.5Single AxisBallscrew2.00 1 375.00
43058 Del-Tron Precision LS3-12Single AxisBallscrew12.00 1 525.00
31708 Del-Tron Precision NoneSingle AxisLead screw1.00 12 225.00
108679 Dover Instrument X-YBallscrew5.004.00 2 950.00
1556 Dover Instrument ES400S250CLSSingle AxisLead screw15.75 2 975.00
108681 Ealing Electro-Optic 37-0346X-YLead screw12.0012.00YES 1 1,200.00

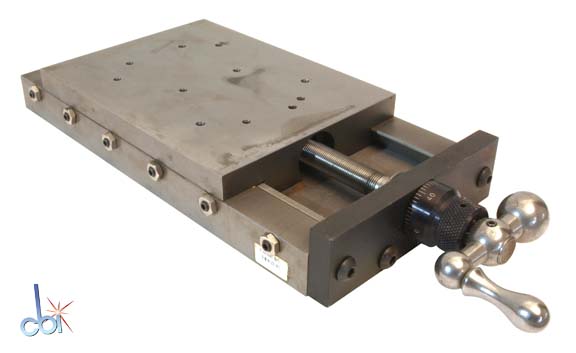

66650 HEAVY DUTY LINEAR STAGE, 4.75" TRAVELSingle Axis4.75 1 200.00
82647 IntelLiDrives PXY-15X18 1 1,900.00
4298 Intelligent Actuator DSS5H100X-YBallscrew 3 2,750.00
570 Kensington Labs MS4X-Y-ZLead screw8.278.270.39 1

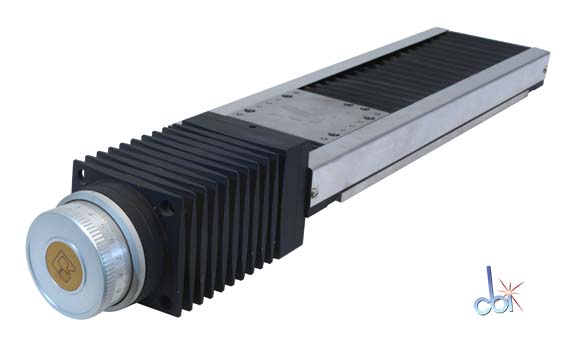

85954 Klinger B91-57055Single AxisLead screw7.50 2 1,400.00
37864 Klinger UT 100X-Y-ZLead screw0.980.980.18 2 1,100.00
1554 Klinger UT100.25CCSingle AxisLead screw1.00 1 850.00
134788 Line Tool Co. JX-Y-ZMicrometer Driv0.500.500.50 3 750.00 F*

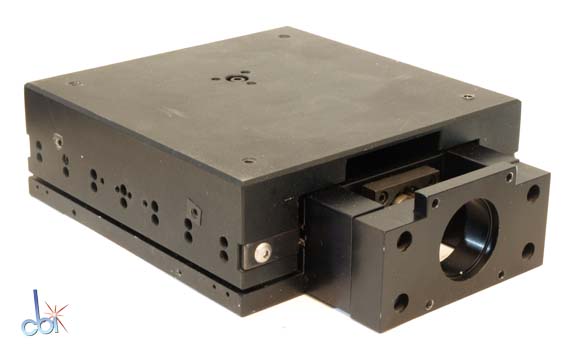

92640 LINEAR STAGE, 4" TRAVELSingle AxisBallscrew4.00 1 300.00
7961 Melles Griot 07 TEZ-501X-Y-ZMicrometer Driv0.240.240.12 1 395.00

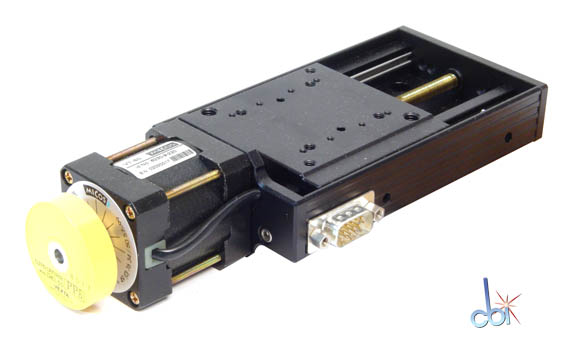

81172 miCos VT-80Single AxisLead screw11.81 1 1,375.00

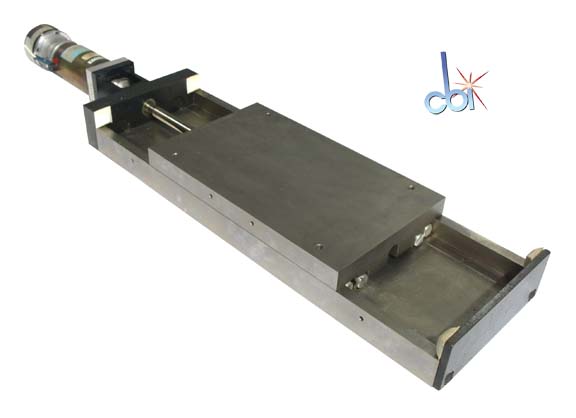

1584 MOTORIZED LINEAR STAGE, 7.25" TRAVELSingle AxisLead screw7.25 1 350.00

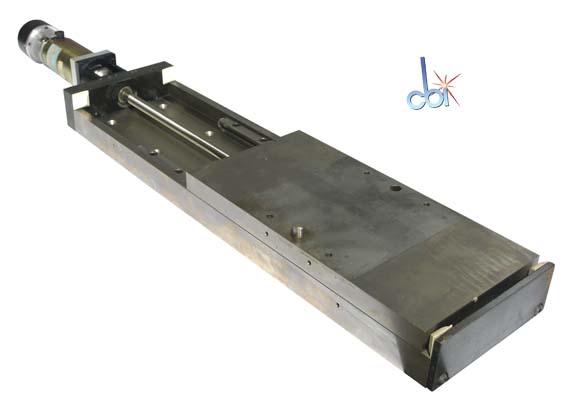

1583 MOTORIZED LINEAR STAGE, 9.25"Single AxisLead screw9.25 1 350.00

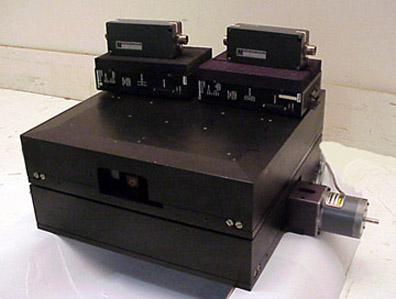

4819 MOTORIZED LINEAR X-Y STAGEX-YLead screw12.7512.75 1
122187 Neat NoneSingle AxisBallscrew4.00 2 425.00

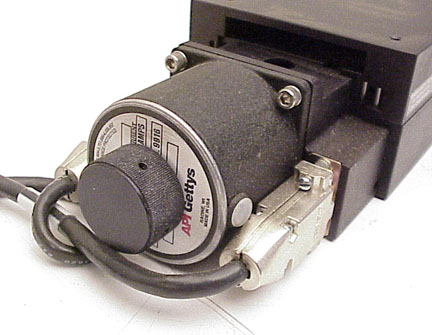

8028 Neat TM1000SMSingle AxisBallscrew5.00 1 550.00
38772 Newport M-UTM25PP1HLSingle AxisLead screw0.98 6 1,250.00

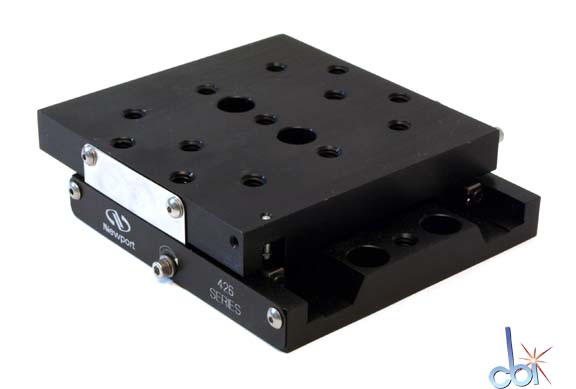

4548 Newport M426Single AxisNone1.00 10 210.00
171506 Newport NoneX-YLin. Motn. Guid0.500.50 1 1,105.00
38774 Newport UT100-25-1UMSingle AxisLead screw0.98 3 950.00
19889 Newport UTM50CC.1DDSingle AxisLead screw 1 1,550.00
136796 Physik Instrumente M014.00X-YOther 1
3864 THK KR33Ballscrew2.50 2 750.00

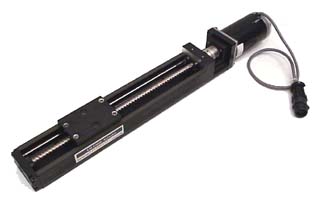

2636 THK KR33ASingle AxisPrec Ball screw9.00 8 875.00
3061 X-Y-Z GRANITE-TOP INSPECTION PLATFORMX-Y-ZPrec Ball screw8.008.008.00 2 F*

NOTE:
   photo available
   reference document attached
  F* if the item is specially featured
  N* if the item is newly added, and/or
  R* if the item's price is recently reduced.

Items from the following manufacturers are offered under Linear Stages:
Aerotech, Anorad, Bishop-Wisecarver, Cleveland Precision Systems, Daedal, Danaher Precision Systems, Del-Tron Precision, Inc., Design Components Inc, Dover Instrument, Ealing Electro-Optics, IntelLiDrives, Inc., Intelligent Actuator Inc, Kensington Labs, Klinger, Line Tool Company, Melles Griot, miCos GmbH, New England Affiliated Technologies, Newport, Physik Instrumente, THK
