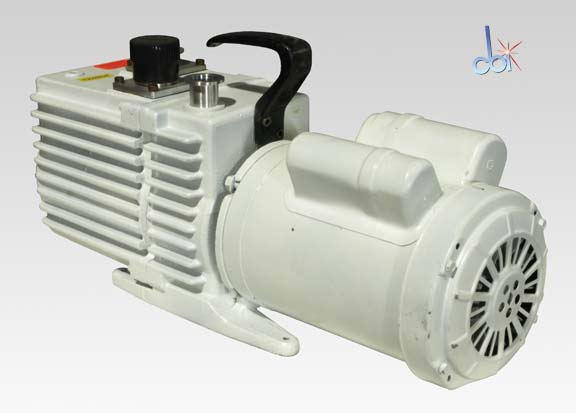

LEYBOLD OERLIKON ROTARY VANE VACUUM PUMP 14.1 CFM
Rotary Vane Pumps
Two Stage Mechanical Vacuum Pump
Pumping speed and ultimate pressure are based on 60 Hz operation.
4 unit s @ Best Price
Make: Leybold
Model: D16AC
Item ID: 124954
| Manufacturer | Leybold |
| Model | D16AC |
| Pumping Speed | 14.1 CFM (398.4 l/m) |
| Ultimate Pressure | 0.30E-3(En) torr (0.40E-3 mbar) |
| Inlet Flange | KF 25.0 mm (0.984 in) |
| Exhaust Flange | KF 25.0 mm (0.984 in) |
| Two-Stage | YES |
| Motor Horsepower | 1 HP |
| Rotational Speed | 1,725 RPM |
| Power Requirements | 115/ 230 V 14.0 A 60 Hz 1 Phase |
| Exterior Dimensions | |
| Width | 24.000 in (61.0 cm) |
| Depth | 10.000 in (25.4 cm) |
| Height | 12.000 in (30.5 cm) |
| Weight | 86 lb (39 kg) |
