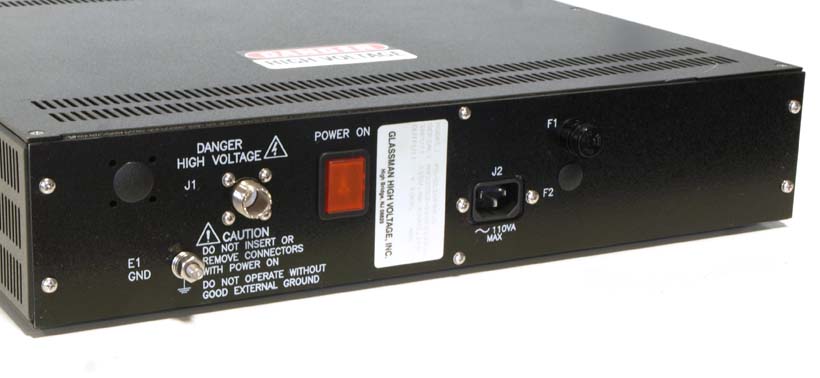

GLASSMAN HIGH VOLTAGE POWER SUPPLY, 10 kV
High Voltage Power Supplies
High Voltage Power Supply Positive Polarity
1 unit @ Best Price
Make: Glassman
Model: PS/EL10P4
Item ID: 143191
| Manufacturer | Glassman |
| Model | PS/EL10P4 |
| Maximum Output Voltage | 10.0 kV |
| Maximum Output Current | 4.0 mA |
| Bipolar | No |
| Panel Meters | Analog |
| Ripple | <0.03% RMS of rated voltage at +0.5v at full load |
| Regulation | Better than 0.005% |
| Interface | I/O Port |
| External Cooling | Air Cooled |
| Accessories | 3M (10') HV cable add $200 with the purchase of the power supply, inquire about longer cables. To purchase HV cable alone the price will be $320 for a 3M (10'), inquire on longer cables. |
| Other Information | Positive Polarity We will not honor our 90 day warranty if this power supply will be used for arc or spark gap applications
|
| Extended Description | Details at EL_Series.pdf |
| Power Requirements | 115 V 48-440 Hz 1 Phase |
| Exterior Dimensions | |
| Width | 19.000 in (48.3 cm) |
| Depth | 18.000 in (45.7 cm) |
| Height | 3.500 in (8.9 cm) |
| Weight | 12 lb (5 kg) |
Shipping & Handling
Our standard procedure is to service the equipment as orders are placed. Lead times can vary depending on the item.
Domestic and International shipments: Ex Works, Scotia, NY. All freight cost estimates are for dock to dock service only.
Any additional services, i.e. lift-gate, inside or residential delivery, must be requested at the time of sale and will be billed accordingly.
CBI is not responsible for any damage incurred during shipment. It is the buyer's responsibility to inspect packages for damage and to note any damage on bill of lading.
Please feel free to call us with any questions. (Phone: 518.346.8347, 844-833-8347, Fax: 518.381.9578).
Payment
We offer terms of net 30 days to all companies that have established credit with Capovani Brothers Inc. and have paid within terms.
All federal, state, local governments and their agencies, as well as institutions of higher learning automatically receive terms.
All other sales, including foreign sales, are prepayment only.
MasterCard, VISA, Discover and AMEX are accepted at sellers discretion.
