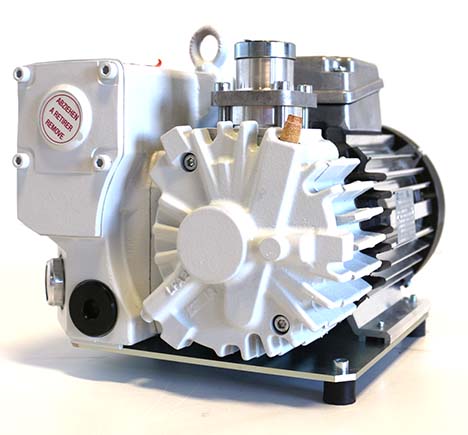

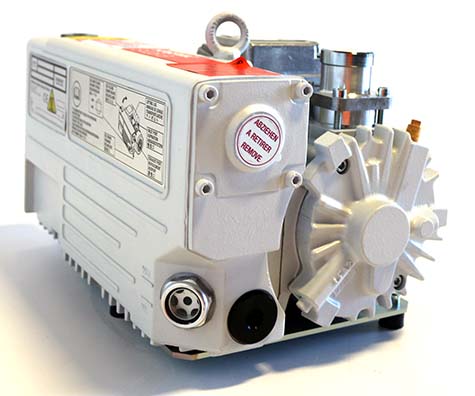

OERLIKON LEYBOLD ROTARY VANE VACUUM PUMP 14.7 CFM
Rotary Vane Pumps
Rotary Vane Pump - New in Box
1 unit @ $2,000.00
Make: Oerlikon Leybold
Model: Sogevac SV25 B
Item ID: 186206
| Manufacturer | Oerlikon Leybold |
| Model | Sogevac SV25 B |
| Pumping Speed | 14.7 CFM (415.4 l/m) |
| Ultimate Pressure | 0.38E0(En) torr (0.50E0 mbar) |
| Inlet Flange | NPT 19.1 mm (0.752 in) |
| Exhaust Flange | NPT 19.1 mm (0.752 in) |
| Single-Stage | YES |
| Gas Ballast | Yes |
| Ultimate Total Pressure with Gas Ballast | 0.60E0(En) torr (0.80E0 mbar) |
| Ultimate Total Pressure without Gas Ballast | 0.38E0(En) torr (0.50E0 mbar) |
| Direct Drive | Yes |
| Motor Horsepower | 1.5 HP |
| Rotational Speed | 4 RPM |
| Oil Type | Hydrocarbon |
| Oil Capacity | Maximum: 0.50 L (0.53 qt, 0.11 Br gal) |
| Other Information | Part no: 960251 |
| Extended Description | Details at Oerlikon Leybold Sogevac SV25B with gas ballast .pdf |
| Year of Manufacture | 2014 |
| Condition | New-Never Used |
| CE Marked | YES |
| Exterior Dimensions | |
| Width | 9.094 in (23.1 cm) |
| Depth | 15.236 in (38.7 cm) |
| Height | 9.685 in (24.6 cm) |
| Weight | 57 lb (26 kg) |
