VEECO PROFILOMETER

Profilometers

Profilometer

1 unit @ Best Price

Make: Veeco

Model: Dektak 3030

Item ID: 109557

Manufacturer	Veeco
Model	Dektak 3030
Description	Profilometer
Accessories	Environmental shield included

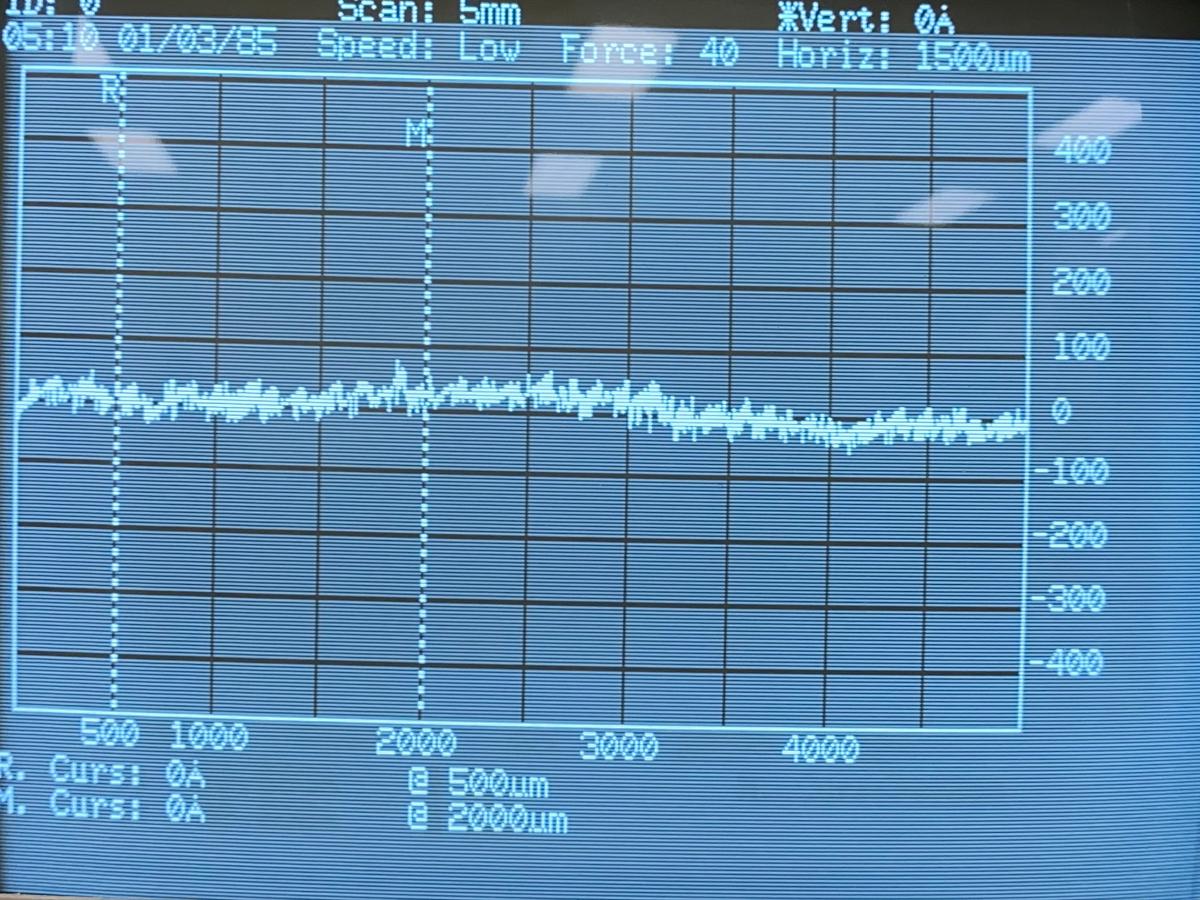

Other Information	Measuring Range: 100Å to 1310kÅ Scan Speed Range: Low, Med, High Vertical Resolution: 1Å in the 65kÅ range, 10Å in the 655kÅ range, 20Å in the 1310kÅ range Data Points per micron: 0.04 -- 40 Scan Length 50 microns to 50 mm Leveling: 2 point programmable or cursor leveling Stylus: 12.5 micron, diamond (other sizes are optional) Maximum sample thickness: 1.75 inches Sample stage diameter: 7 inches Sample stage translation, manual: X axis: 6" and Y axis: 3" Maximum sample weight: 1 lb Zoom range: 35X -- 200X Unit is tested, see sample scans, image 8 and 9
Power Requirements	120 V 60 Hz 1 Phase
Exterior Dimensions
Width	13.000 in (33.0 cm)
Depth	22.000 in (55.9 cm)
Height	26.000 in (66.0 cm)
Weight	88 lb (40 kg)
